Power Subsystem

Centellis 2000 Shelf - DC Installation and Use (6806800G45F)

123

For the blades, power is distributed as defined in the PICMG 3.0 Specification. The following
figure illustrates the power distribution system as it pertains to the FRUs found in the two-PEM
shelf.

7.2.3

PEM Specifications

The following sections outline the power input and the power filtering.

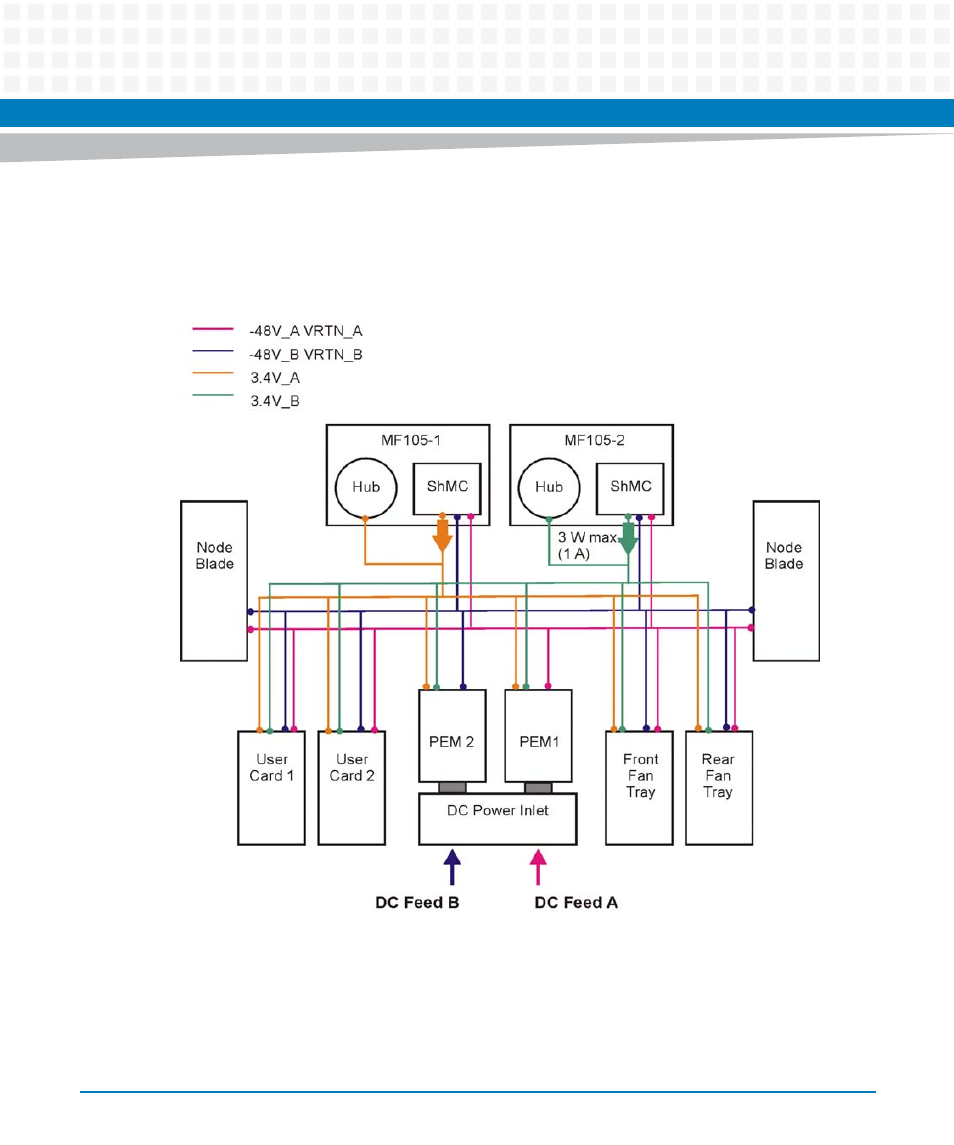

Figure 7-1

Two-PEM Shelf Power Distribution
