FRU Installation

Centellis 2000 Shelf - DC Installation and Use (6806800G45F)

102

5. Slide the tray into the slot until you feel resistance.

The fans start rotating during this step.

6. Fasten the three mounting screws of the tray.

7. Query the shelf manager to ensure the fan tray is operating properly.

4.7

Maintaining Air Filters

Routine filter maintenance is required to ensure that the shelf operates efficiently. The
following section provides the information needed to replace and store filters.

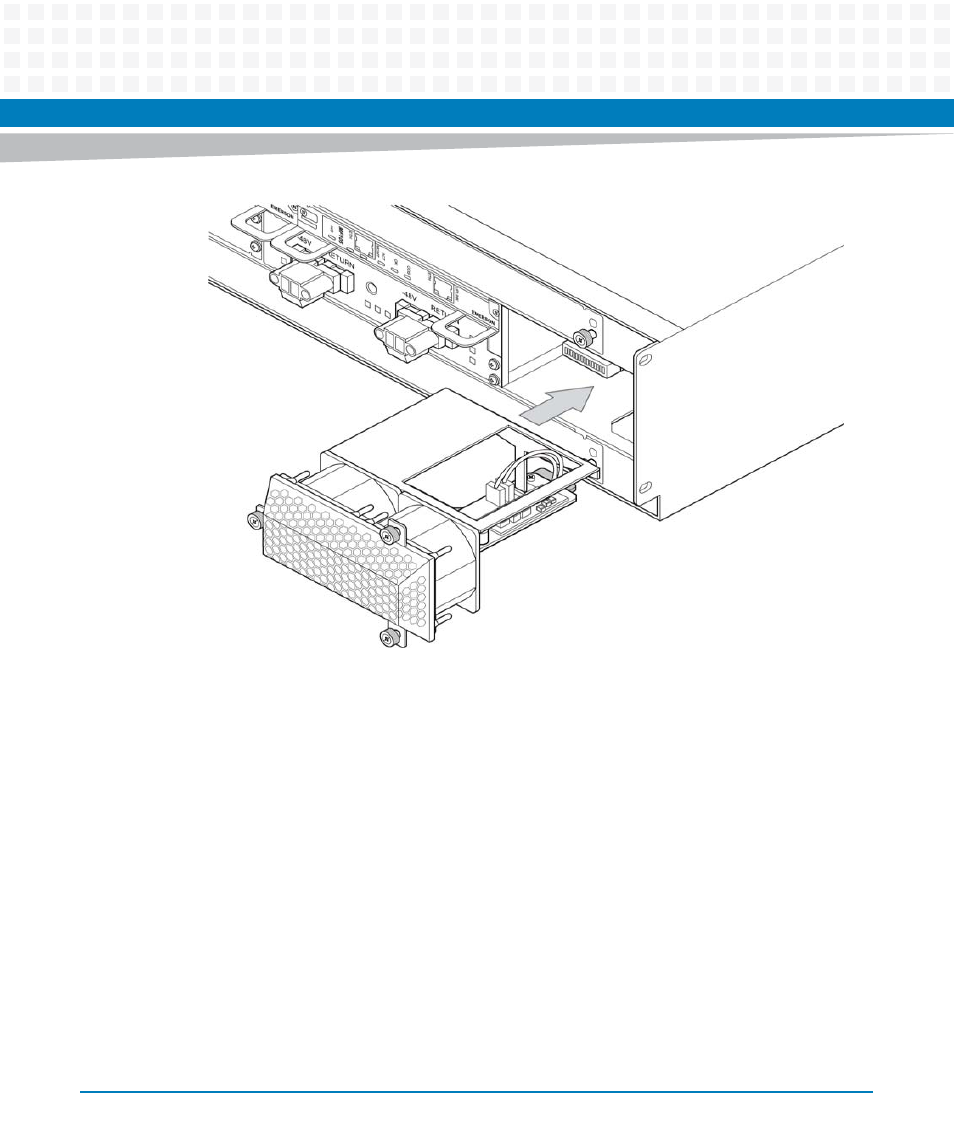

Rear fan tray
