User Manual 2253i / 2253iX
AMETEK California Instruments 145
10.7.4 Emergency Test
From the MIL704 DC MENU scroll to the EMERGENCY DC entry using the up and down cursor keys
(Figure 10-6). Press the ENTER key to start the EMERGENCY TEST.

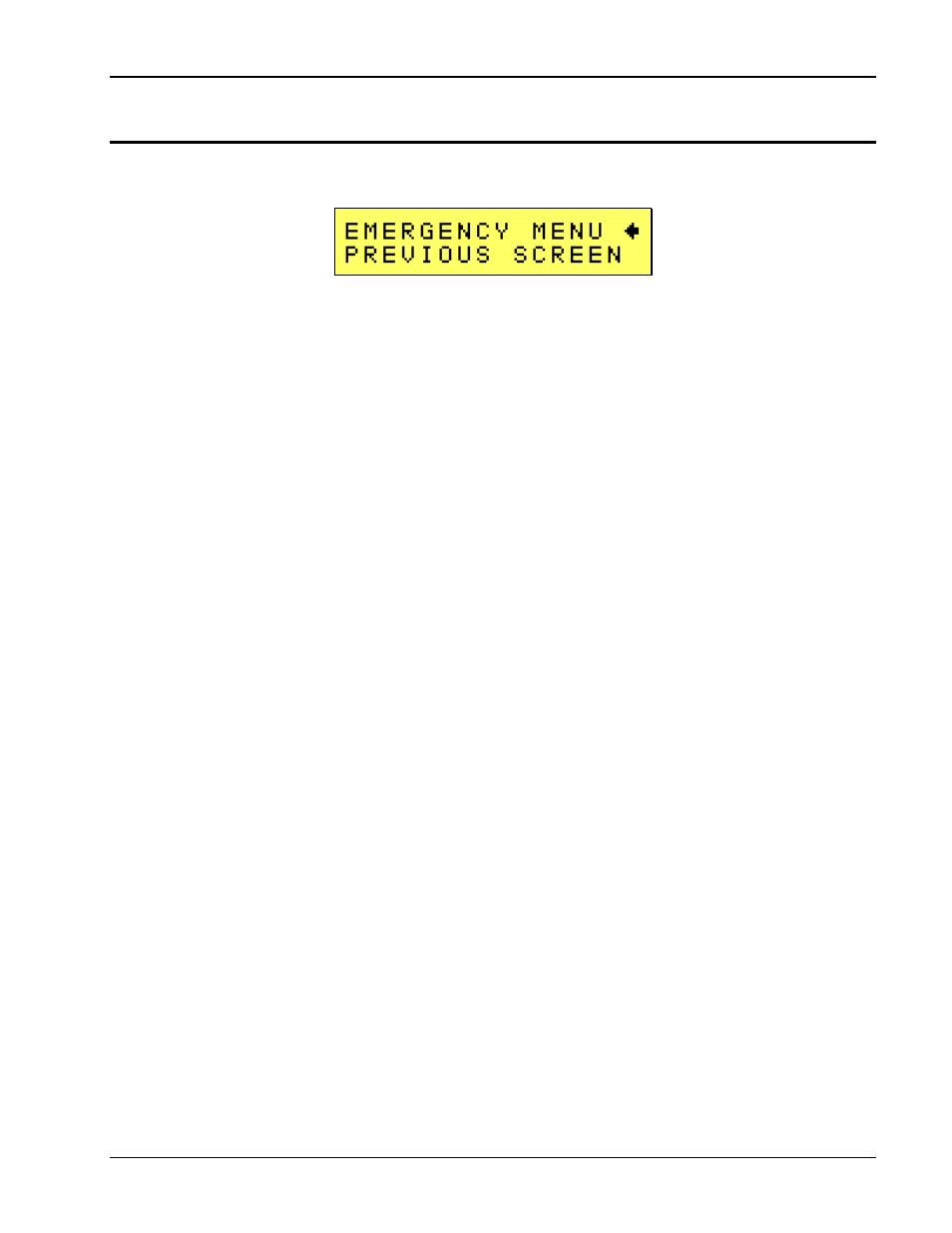

Figure 10-6: Emergency Test
VOLTAGE
This test will change the output voltage for the selected phase in the following sequence:
1. 28V system:
 18V for 1 minute.
 29V for 1 minute.
 28V for 1 minute.
2. 270V system:
 250V for 1 minute.
 280V for 1 minute.
 270V for 1 minute.
The  key (backspace) will terminate the test at any time.
