Altera Corporation A–27
HardCopy II Clock Uncertainty Calculator User Guide

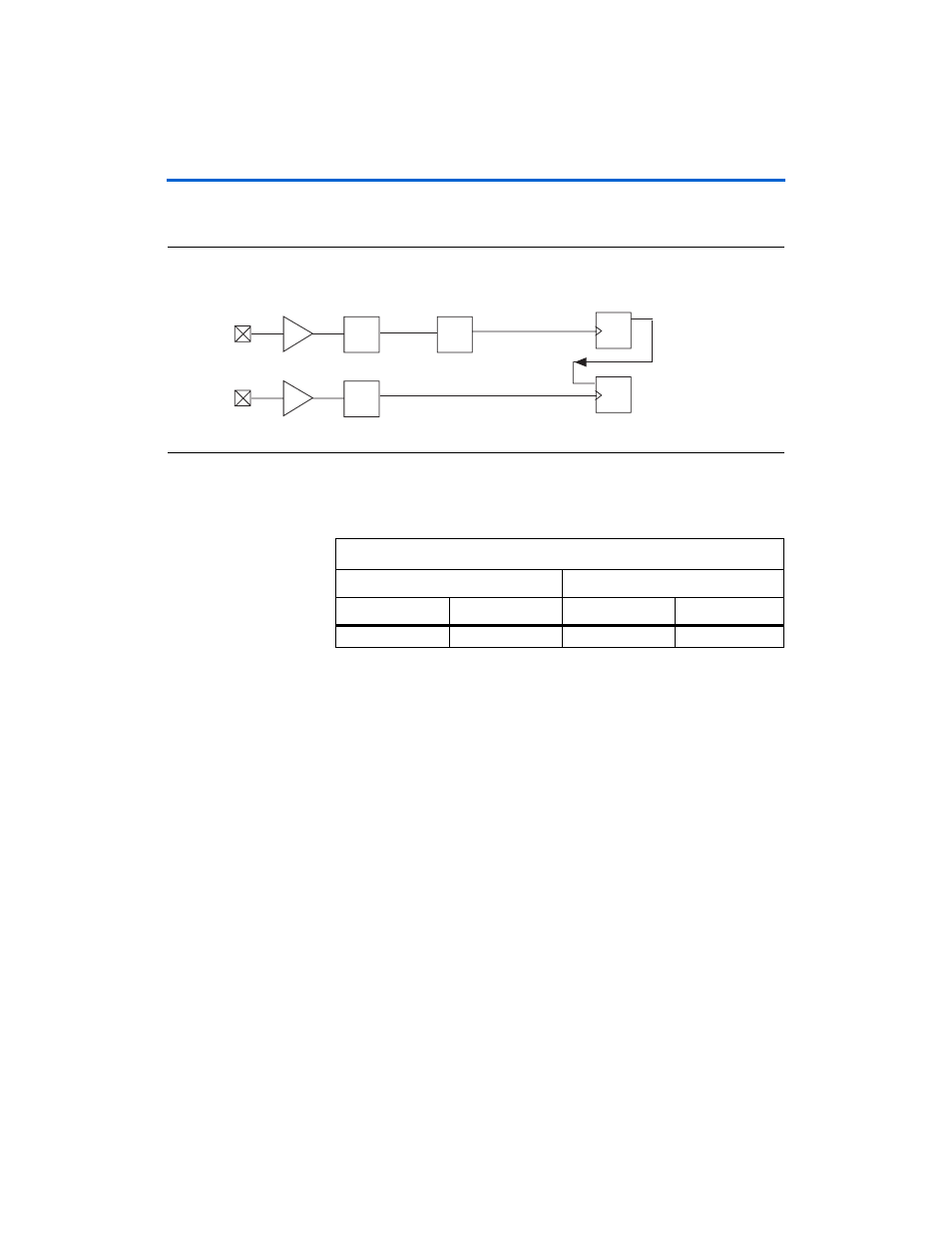

Figure A–28 shows an example of a clock-pair = CLK8 to CLK9
Figure A–28. Inter-Clock Domain with Two Independent Clocks and Cascaded PLLs on Source Clock and One
PLL on the Destination Clock
Table A–28 shows input of the PLL index for Figure A–28 , with respect to
the source and destination clocks.
PLL4 PLL11
INBUF2
Source
Clock
Source
Register
Destination
Register
CLK5 CLK8
PLL3
INBUF7
Destination
Clock
CLK9
Table A–28. Location of Input PLLs
Source Clock Destination Clock
1st PLL 2nd PLL 1st PLL 2nd PLL
4 11 3 —
