Altera Corporation 2–9
HardCopy II Clock Uncertainty Calculator User Guide
Launching the HardCopy II Clock Uncertainty Calculator
Refer to the highlighted column in Figure 2–9 of the clock transfer report
and PLL_Names.txt for the following procedures:
1. From the clock transfer report, trace the pin or port under "From
Clock".
For example, altpll0:PLL0|altpll"altpll_component|_clk1.
2. Refer to the PLL_Name.txt file to and see what the PLL index is
associated to.
For example, altpll0:PLL0|altpll"altpll_component associates to
PLL_2.
3. From the clock transfer report, trace the pin or port under "To
Clock".
For example, altpll0:PLL1|altpll"altpll_component|_clk0.
4. Refer to the PLL_Name.txt file in Figure 2–9 to see what the PLL
index associated to.
For example, altpll0:PLL1|altpll"altpll_component associates to
PLL_1.
You now know the source clock from PLL_2 and the destination
clock from PLL_1.
5. Enter 2 and 1 into the first PLL cell of the source clock and the
destination clock, respectively, as shown in Figure 2–10 on
page 2–10 .

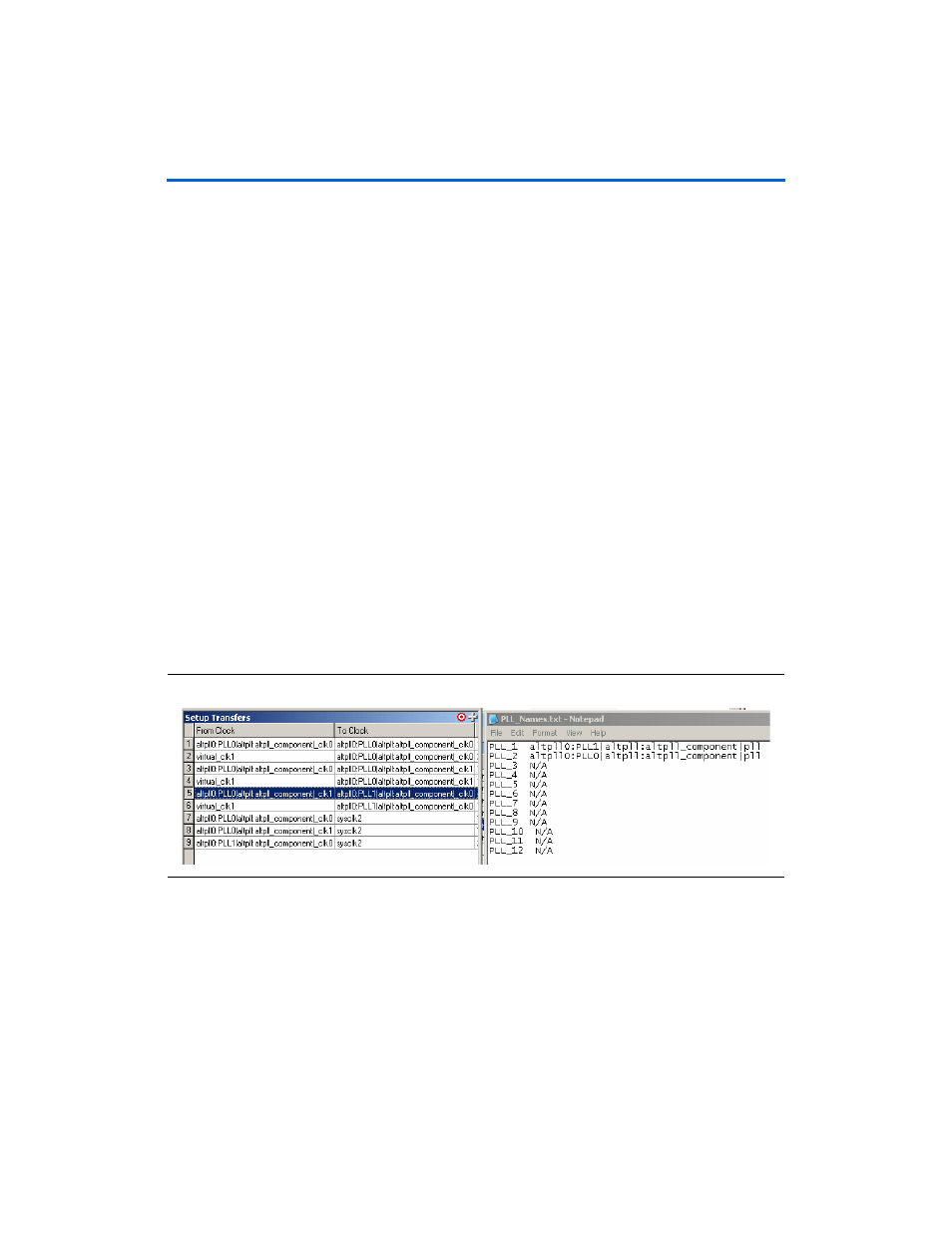

Figure 2–9. Clock Transfer Report and PLL_Names.txt
