Remote Control
72 FLS-2600B
Setting the GPIB Primary Address
3. Press ENTER. The Edit marker starts blinking in the lower part of the
display.
4. Turn the selection dial to enter the setting you wish to work with—
GPIB or RS-232.
5. Press ENTER.
6. To exit the Setup menu, press Setup.
Setting the GPIB Primary Address
To set the GPIB primary address, you must be in GPIB mode. To select the
GPIB mode, see Setting the FLS-2600B for Remote Control on page 71.
To set the GPIB primary address:
1. Press Setup.

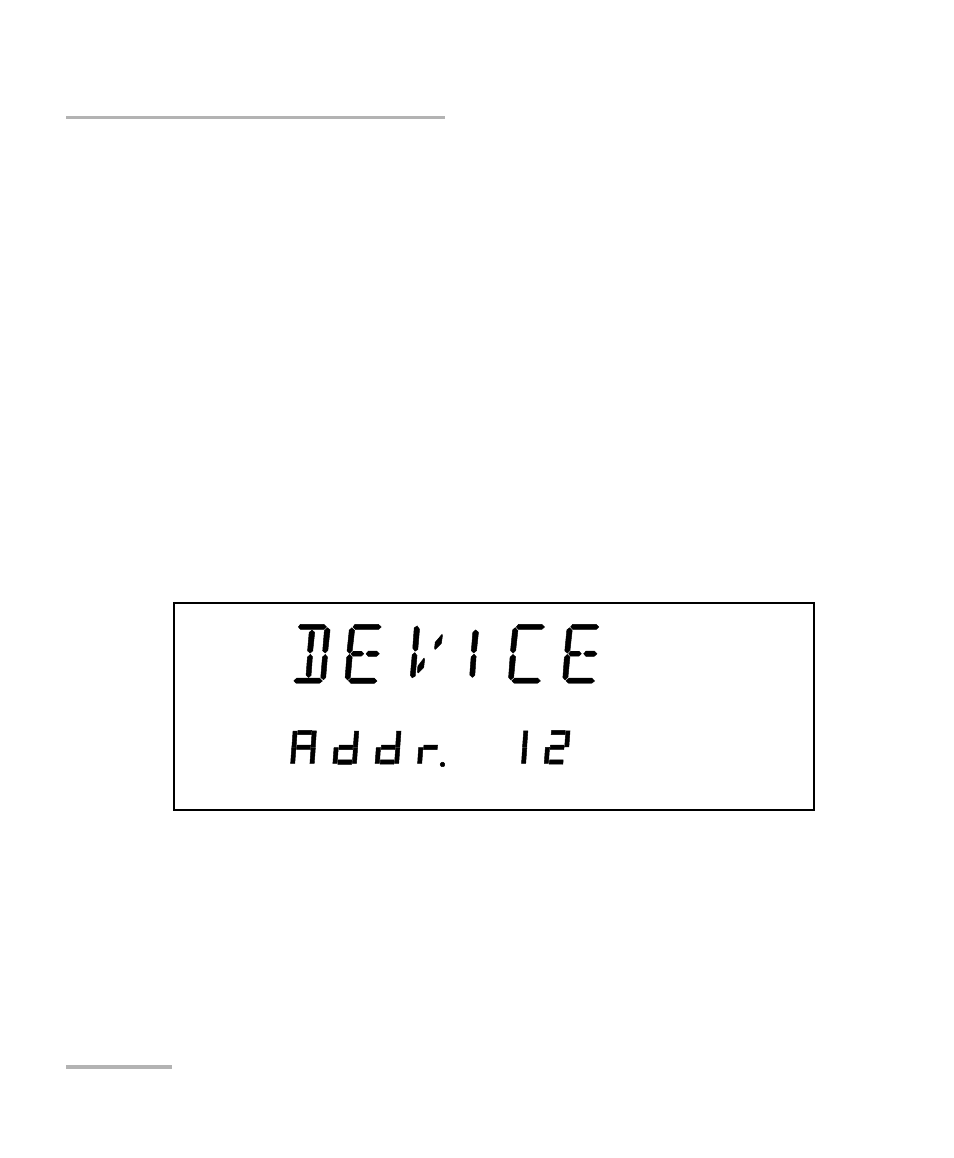

2. Turn the selection dial clockwise until DEVICE is displayed. The
current address appears.
3. Press ENTER. The Edit marker starts blinking in the lower part of the
display.
4. Turn the selection dial to enter the address you wish to work with. You
can select a number between 1 and 30.
5. Press ENTER.
To exit the Setup menu, press Setup.
Edit
