Setting Sweep Parameters
Tunable Laser Source 35
Selecting the Incoming Trigger Option
Selecting the Incoming Trigger Option
The incoming trigger option allows you to synchronize your sweeps with
signals from other units.
To switch the incoming trigger option on or off:
1. Press Sweep.

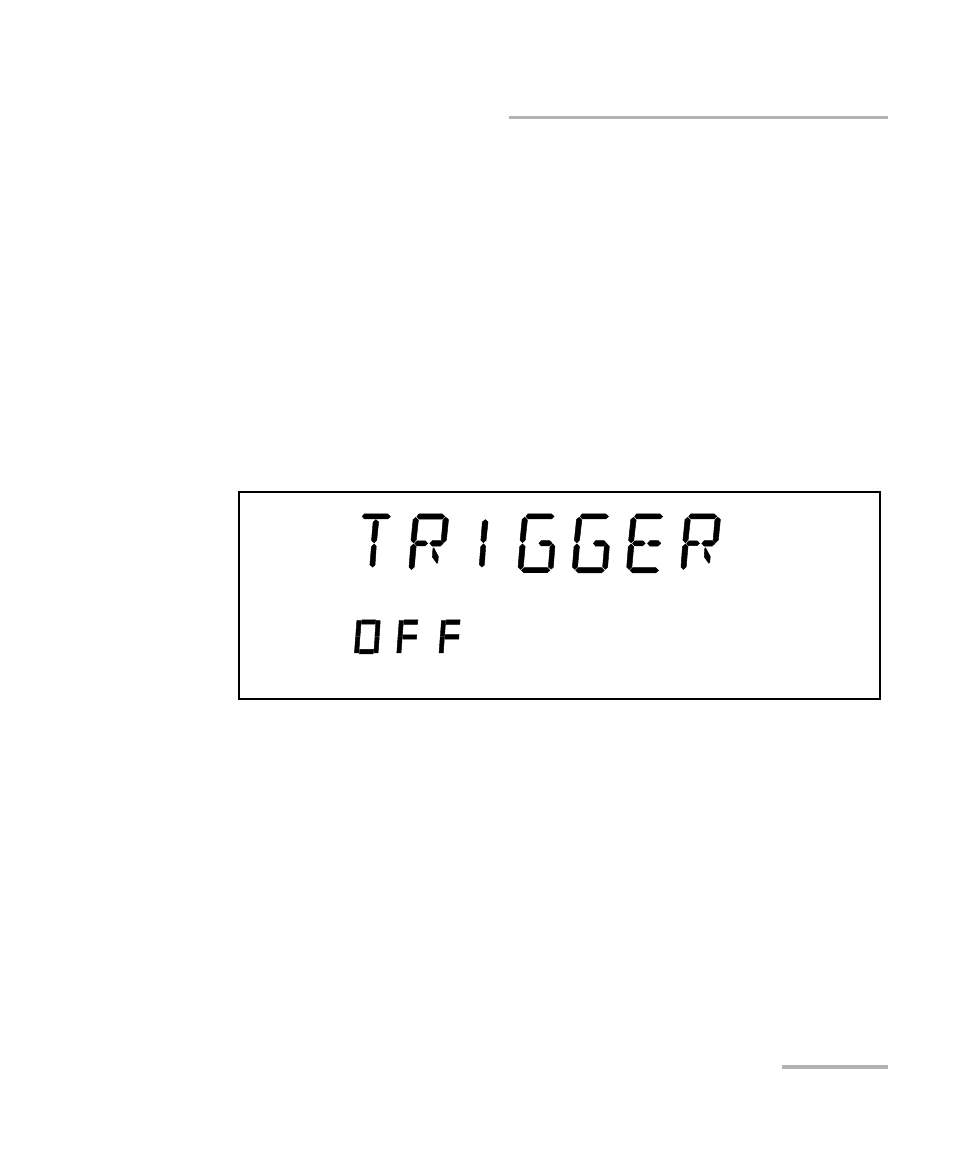

2. Turn the selection dial clockwise until TRIGGER is displayed.
3. Press ENTER. The Edit marker starts blinking in the lower part of the
display.
4. Turn the selection dial clockwise or counterclockwise to turn the
Trigger option on or off.
5. Press ENTER to validate your choice and Sweep to exit the Sweep
menu.
For more information about the trigger option on your tunable laser source,
see Trigger Option Theory on page 69.
Edit
