EXFO FLS-2600B Tunable Laser Source - Manual (Page 42)

Setting Sweep Parameters
34 FLS-2600B

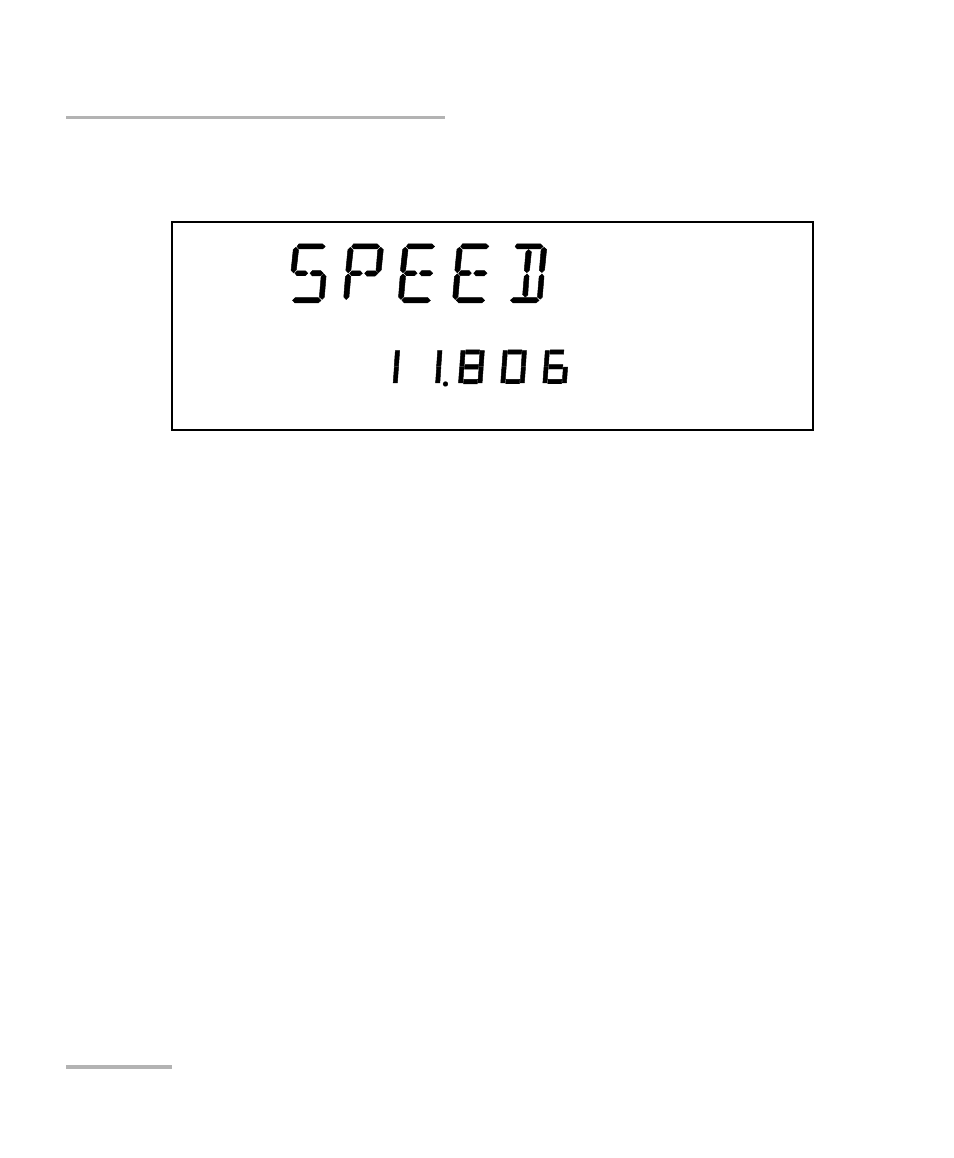

Setting the Sweep Speed
4. Turn the selection dial clockwise or counterclockwise to select the
desired speed of the sweep.
.
5. Press ENTER to validate your choice, and Sweep to exit the Sweep
menu.
Note: Setting the speed will automatically determine the duration of one pass
according to the selected range.
Your FLS-2600B unit was designed to give a constant speed value using nm
as units. When the speed is given in a THz environment, the selected
speed value represents the average value during the sweep, since an
interval in nm does not always have the same equivalent value in THz
according to the wavelength bandwidth you have selected.
Note: You cannot edit the duration of the scan. It will be automatically calculated
according to the speed and wavelength range.
To add or delete steps from the lists, see Adding Items to Lists on page 22
and Deleting Items from Lists on page 23.
Fine-tune
Edit nm/s
