Setting Standard Parameters
20 FLS-2600B
Selecting a Wavelength
Retrieving a Wavelength from a Stored List
To select a wavelength from the list of wavelengths already
saved in the internal memory:
1. Ensure that you are in Wavelength List Edition mode. To select this
mode, press the  /  List button on the front panel so that  List
appears on the upper left-hand corner of the display.
2. Turn the selection dial clockwise or counterclockwise until you reach
the desired listed wavelength.

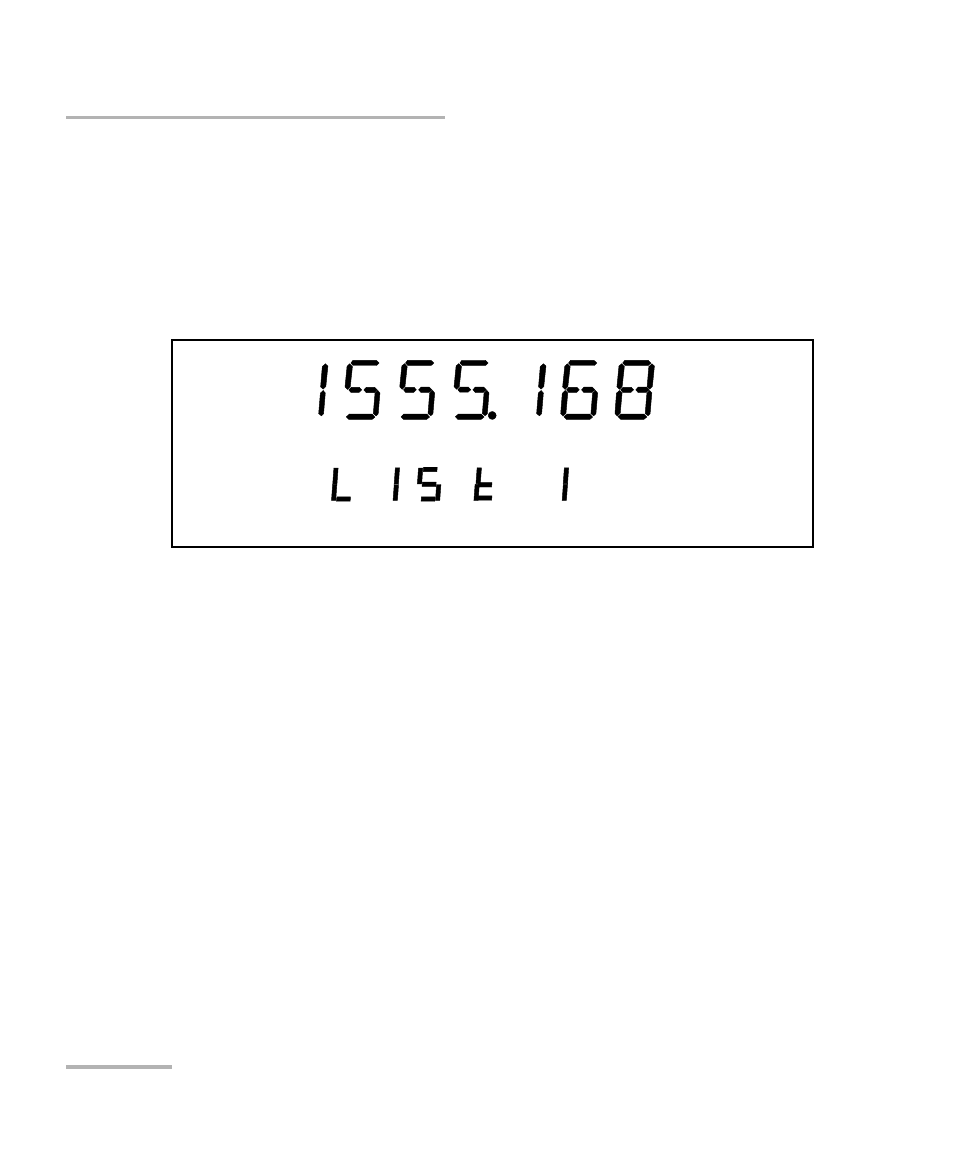

The list number corresponding to your wavelength selection will appear for
a few seconds, then the current power setting will reappear.
To add a wavelength to the list, see Adding Items to Lists on page 22.
Normal
nm
 list
