Setting Sweep Parameters
Tunable Laser Source
33
Setting the Sweep Speed

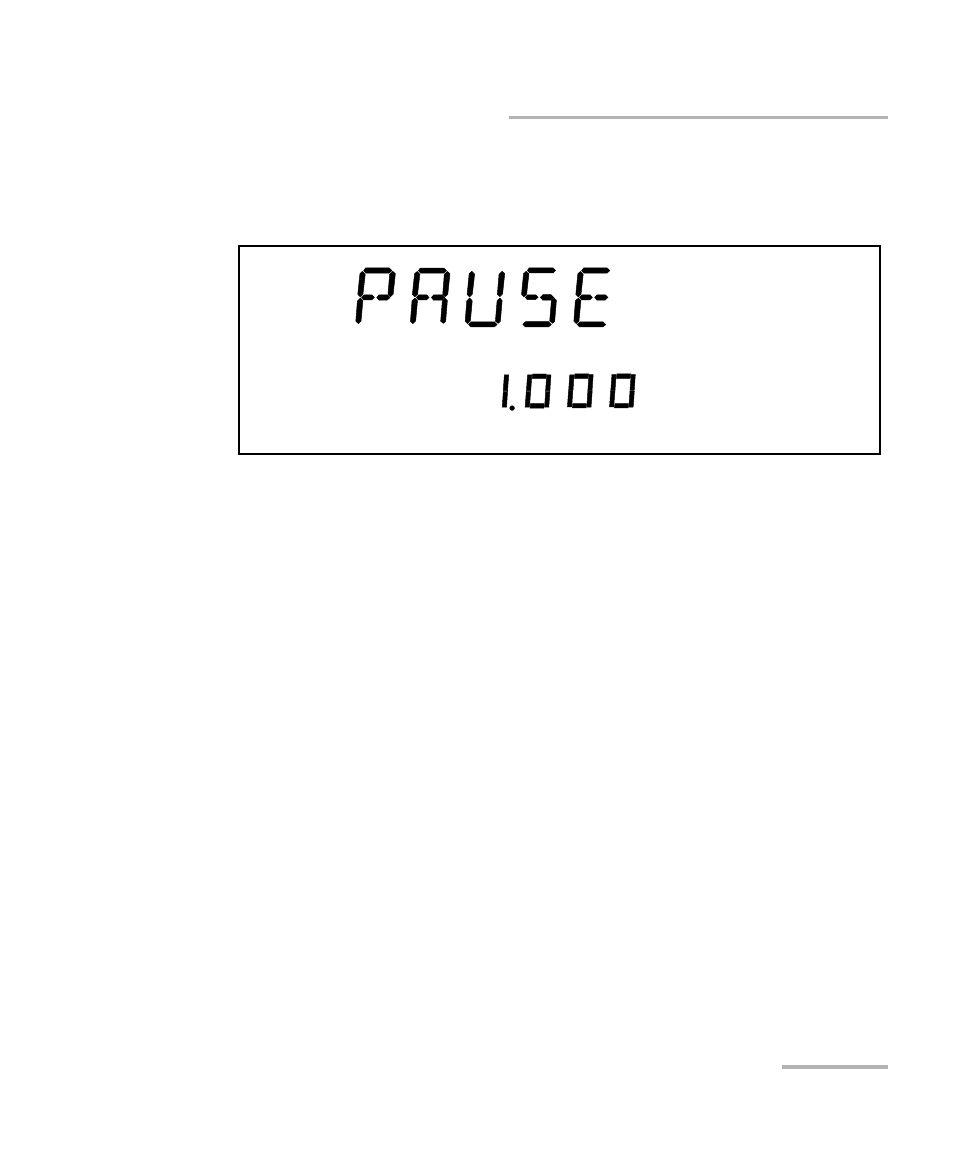

4. Turn the selection dial clockwise or counterclockwise to select the
desired length of time for the pause. The pause range goes from
0.050 to 60.000 seconds.
5. Press ENTER to validate your choice, and Sweep to exit the Sweep
menu.
Setting the Sweep Speed
You can change the sweep speed when you are in Continuous mode.
For more information on setting the mode to Continuous, see Selecting the
Sweep Mode on page 30.
To change the speed:
1. Press Sweep.
2. Turn the selection dial clockwise until SPEED is displayed.
3. Press ENTER. The Edit marker starts blinking in the bottom left-hand
corner of the display.
Fine-tune
Edit
m/s/ms
