Setting Sweep Parameters
30 FLS-2600B
Selecting the Sweep Mode
To set the end wavelength, repeat the process, but after pressing on
Sweep, turn the selection dial clockwise until
 STOP  is displayed.
Note: The start and end wavelengths of the sweep can be set in ascending or
descending order, with a minimum value of 1.0 nm. The sweep will be
performed accordingly.
Selecting the Sweep Mode
You can select the sweep mode you want to perform in the Sweep menu.
The source will use either the Continuous or Stepped mode.
To set the sweep mode you want to use:
1. Press Sweep.
2. Turn the selection dial clockwise until  MODE is displayed.
3. Press ENTER. The Edit marker starts blinking in the bottom left-hand
corner of the display.

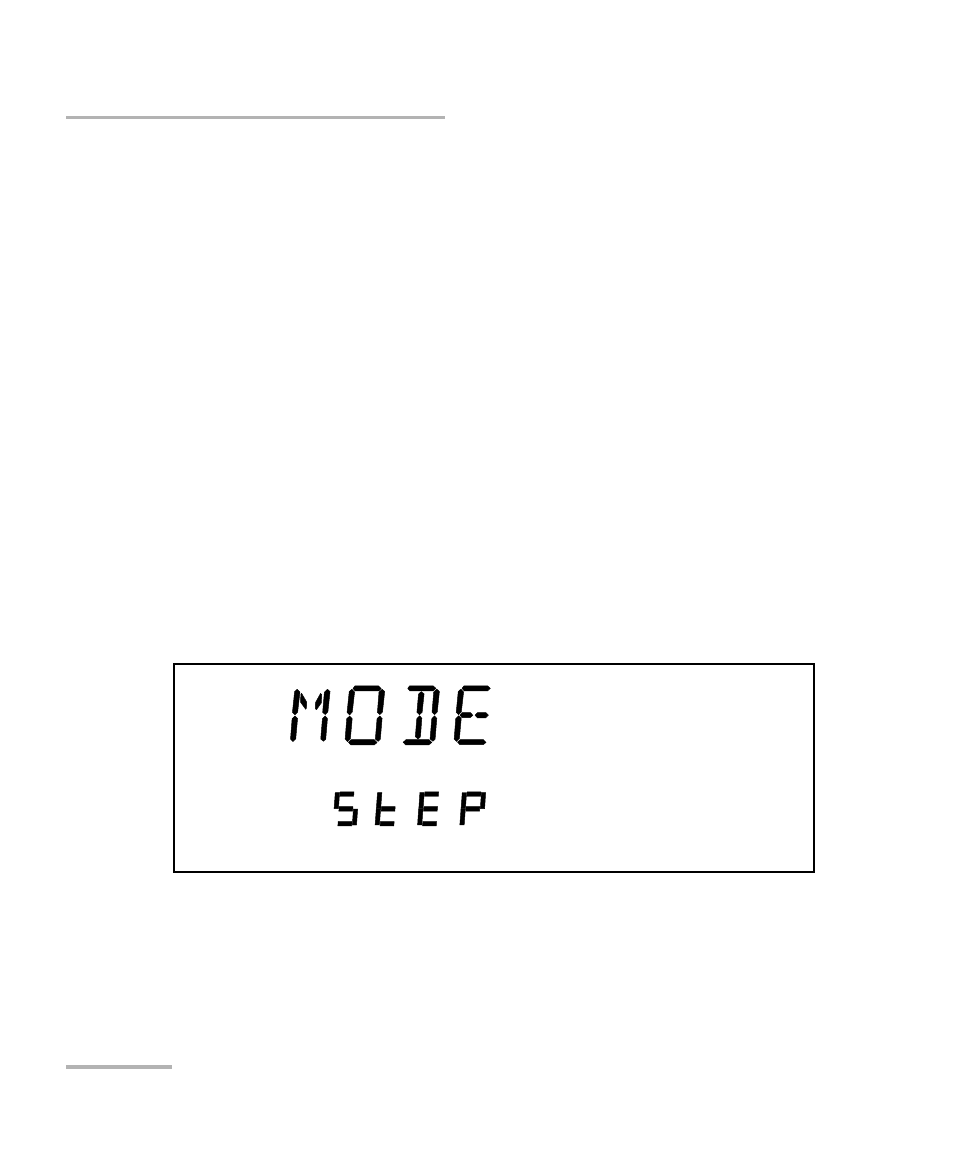

4. Turn the selection dial clockwise or counterclockwise until the desired
mode is displayed: Continuous (Cont.) or Step-by-Step (Step).
5. Press ENTER to confirm your choice, and then Sweep to exit the
Sweep menu.
The sweeps will now be performed according to the mode you have
selected.
Edit
