Specifications
Power Specifications
Table 2-4 lists the power requirements for the ReadyBoard 910.
Operating configurations:
• In-rush operating configuration includes video, 2GB DDR3 memory, 4GB on-board SSD, and power.
• Idle operating configuration includes the in-rush configuration as well as one SATA hard drive,
one PS/2 keyboard, and one PS/2 mouse.
• BIT (Burn-In-Test) operating configuration includes idle configuration as well as second SATA hard
drive, two serial port loop backs, two USB thumb drives, and two Ethernet port connections.

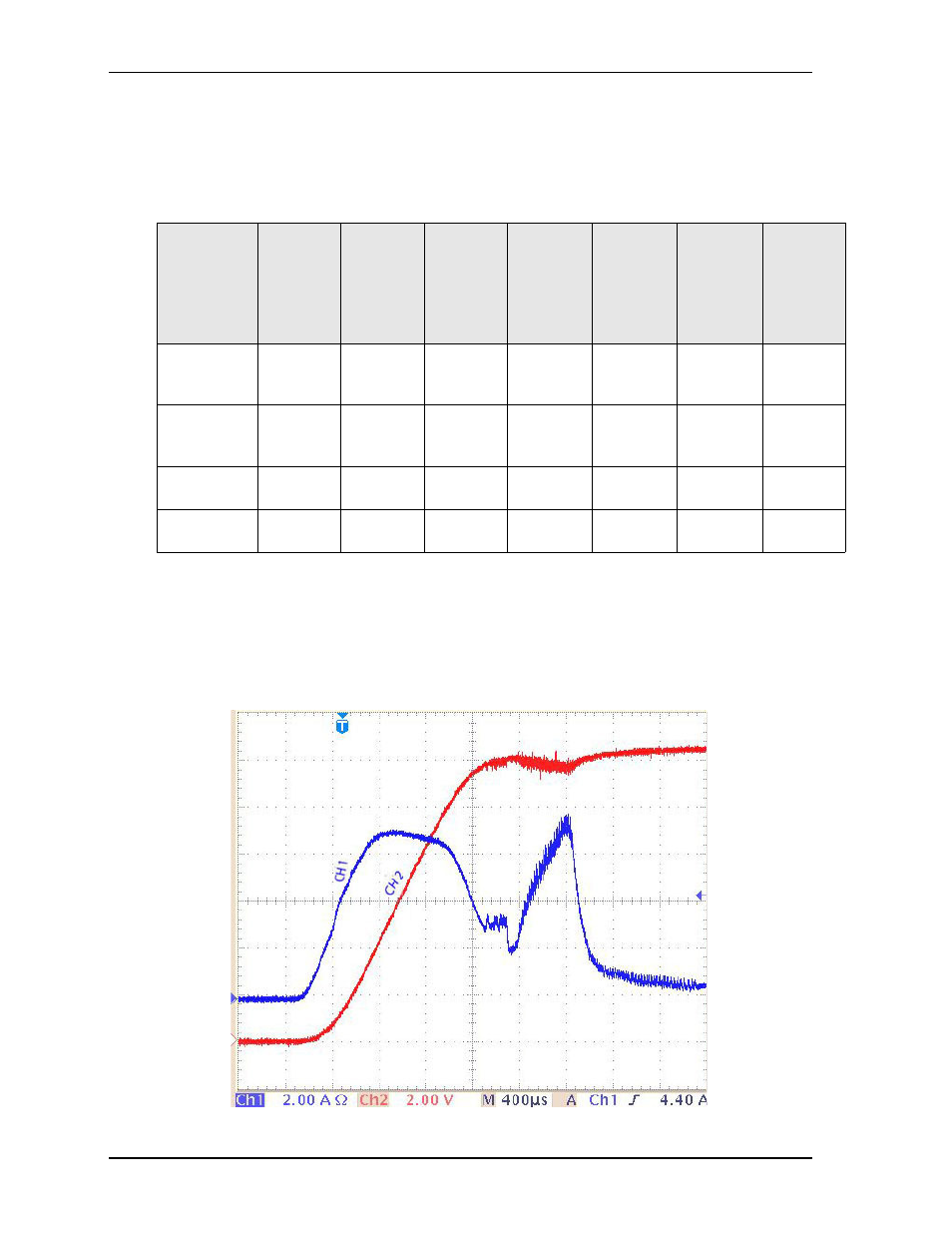

Figure 2-8. Typical Peak In-Rush Current and Duration
Table 2-4. Power Supply Requirements
Parameter 2.3GHz
Intel Core
i7-
3610QE
Characte
ristics 2.7GHz
Intel Core
i5-
3610ME
Characte
ristics 2.4GHz
Intel Core
i3-
3120ME
Characte
ristics 2.1GHz
Intel Core
i7-
2710QE
Character
istics 2.5GHz
Intel Core
i5-2510E
Character
istics 2.2GHz
Intel Core
i3-2330E
Character
istics 1.6GHz
Intel
Celeron
B810
Characte
ristics
Input Type Regulated
DC
voltages Regulated
DC
voltages Regulated
DC
voltages Regulated
DC
voltages Regulated
DC
voltages Regulated
DC
voltages Regulated
DC
voltages
In-Rush Peak
Current and
Duration See
Figure 2-8
See
Figure 2-8
See
Figure 2-8
See
Figure 2-8
See
Figure 2-8
See
Figure 2-8
See
Figure 2-8
Idle Current 1.02A
(12.26W) 1.00A
(12.06W) 1.02A
(12.27W) 1.02A
(12.21W) 0.88A
(10.60W) 1.00A
(11.94W) 0.97A
(11.64W)
BIT Current 2.64A
(31.65W) 2.22A
(26.67W) 2.13A
(25.62W) 3.19A
(38.34W) 2.93A
(35.22W) 2.43A
(29.19W) 2.01A
(24.12W)
