Jumper header definitions, Figure 2-7, Jumper header locations (top side) – ADLINK ReadyBoard 910 User Manual

Page 21: Table 2-3, Jumper settings

Chapter 2

Product Overview

ReadyBoard 910

Reference Manual

Jumper Header Definitions

Table 2-3

describes the jumper headers shown in

Figure 2-6 on page 14

. All jumper headers provide 0.079"

(2mm) pitch.

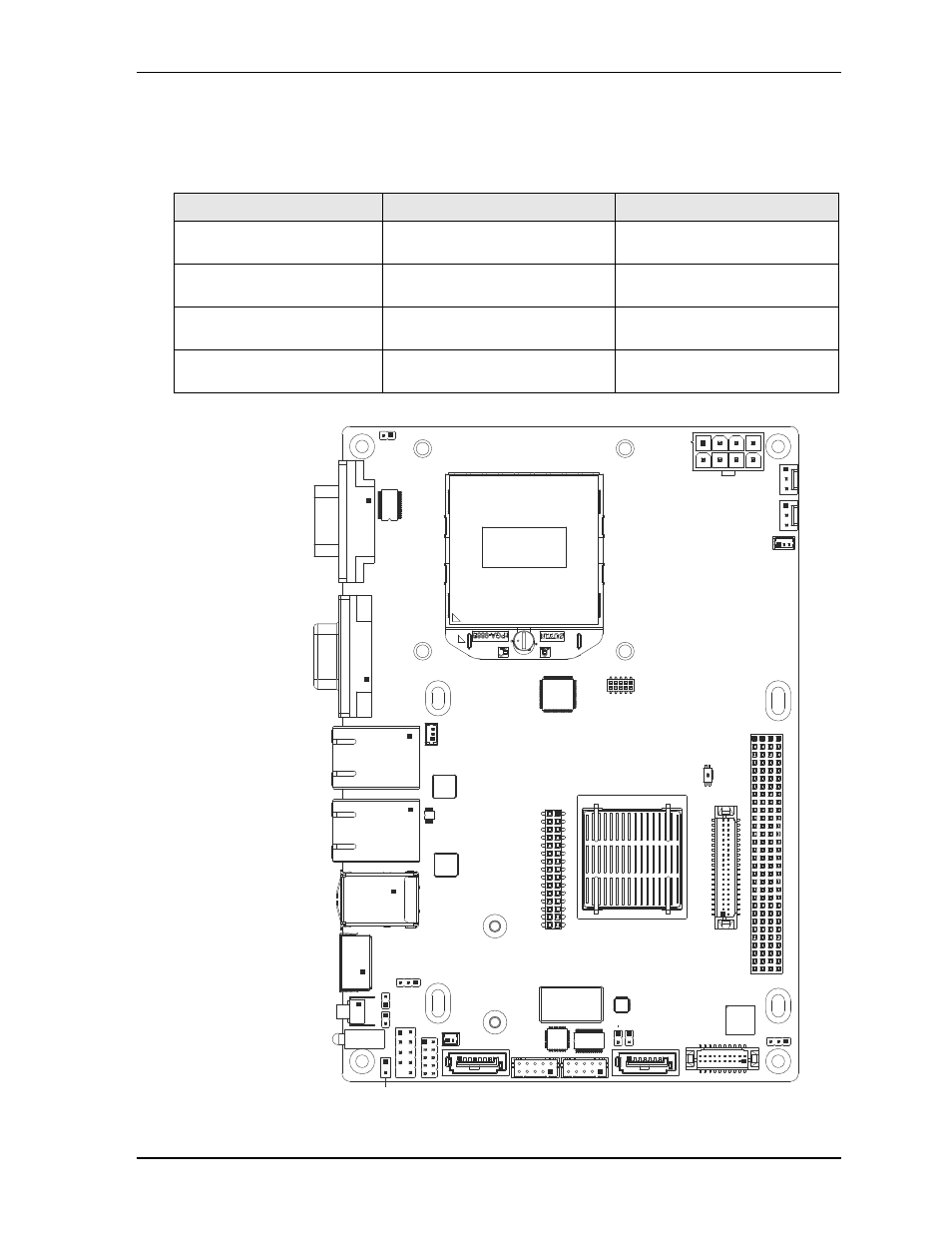

Figure 2-7. Jumper Header Locations (Top Side)

Table 2-3. Jumper Settings

Jumper Header

Installed

Removed/Moved

JP1 – LVDS Panel-Voltage

Selection

Enable +3.3V (Pins 1-2)
[Default]

Enable +5V (Pins 2-3)

JP2 – Serial 1

RS-485 Termination

Enable Termination (Pins 1-2)
[Default]

Disable Termination (Removed)

JP3 – Serial 2

RS-485 Termination

Enable Termination (Pins 1-2)
[Default]

Disable Termination (Removed)

JP4 – Power On Selection

Power On S3 (Pins 1-2)
[Default]

Power On S5 (Pins 2-3)

JP6

JP4

JP3

JP2

JP7

JP8

JP5

JP1

RB910_T

op_Jmpr_b

Keys:

Jumper Headers:
JP1 - LVDS Panel-Voltage Select
JP2 - RS-485 Termination Enable
- COM0 (Serial 1)
JP3 - RS-485 Termination Enable
- COM1 (Serial 2)
JP4 - Power Select S3/S5
Power On

I/O Headers:
JP5 - See I/O Header Table
(Beeper/Buzzer)
JP6 - See I/O Header Table
(Power Button)
JP7 - See I/O Header Table
(SMBus - DATA)
JP8 - See I/O Header Table
(SMBus - CLOCK)
