9400200990 Rev B DGC-2020 BESTlogic+ Programmable Logic 5-3

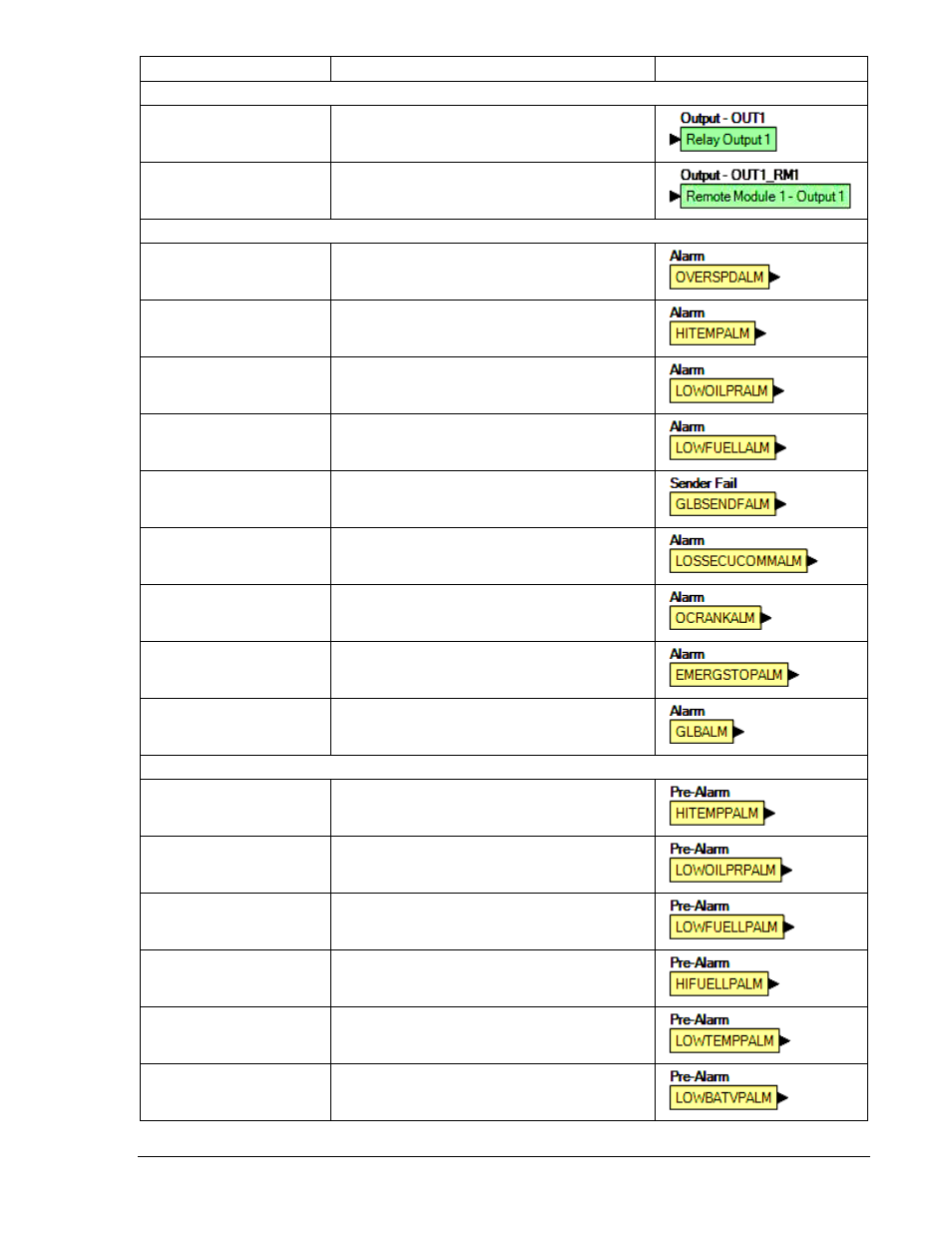

Name Description Symbol
Output Objects
Physical Outputs
OUT1 - OUTx
Connect to an output of another logic block.
Remote Outputs
OUTx_RMx
Connect to an output of another logic block.
(Available only when a remote I/O module is
connected.)
Alarms
Overspeed Connect to an input of another logic block.
Hi Coolant Temp Connect to an input of another logic block.
Low Oil Pressure Connect to an input of another logic block.
Low Fuel Level Connect to an input of another logic block.
Global Sender Fail Connect to an input of another logic block.
ECU Comm Loss Connect to an input of another logic block.
Overcrank Connect to an input of another logic block.
Emergency Stop Connect to an input of another logic block.
Global Alarm Connect to an input of another logic block.
Pre-Alarms
Hi Coolant Temp Connect to an input of another logic block.
Low Oil Pressure Connect to an input of another logic block.
Low Fuel Level Connect to an input of another logic block.
High Fuel Level Connect to an input of another logic block.
Low Coolant Temp Connect to an input of another logic block.
Low Battery Voltage Connect to an input of another logic block.
