8.1.2. Selecting the input or output channel to be monitored
D-2008SP's input or output channels in operation can be monitored.
Step 1. Press the Selection key " " or " " several times to light
"MONITOR" (Item selection indicator).
Step 2. Press the Selection key " " or " " to select monitor
number (1 – 32).
The monitor selection indicator of the selected number
lights.
Note: Idle channel is skipped.

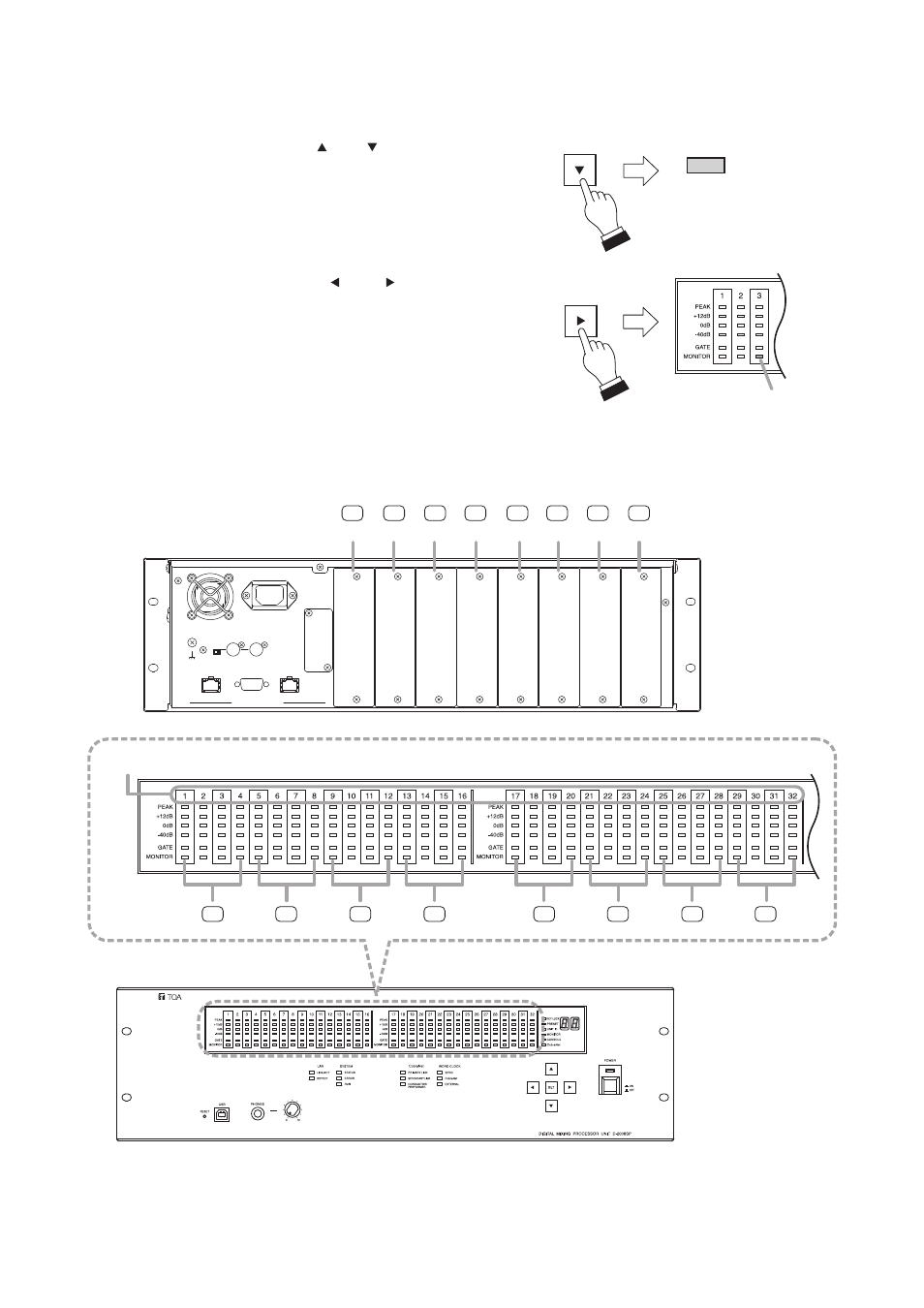

Monitor Numbers are assigned in groups of 4 to each
module slot as shown below.
Idle channels will result if no module is installed in a slot
or if a single 2-channel module is installed (in this case,
the remaining 2 channels become idle).
Step 3. Connect headphones to the headphone jack, then adjust the sound volume with the headphone
volume control knob.
Lights
MONITOR
Slot number
Monitor number
indicated channels
D-2008SP rear
1 – 4 5 – 8 9 – 12 13 – 16 17 – 20 21 – 24 25 – 28 29 – 32
1 2 3 4 5 6 7 8
Lights
Rear's
slot number
Monitor number
1 2 3 4 5 7 6 8
D-2008SP front
