26

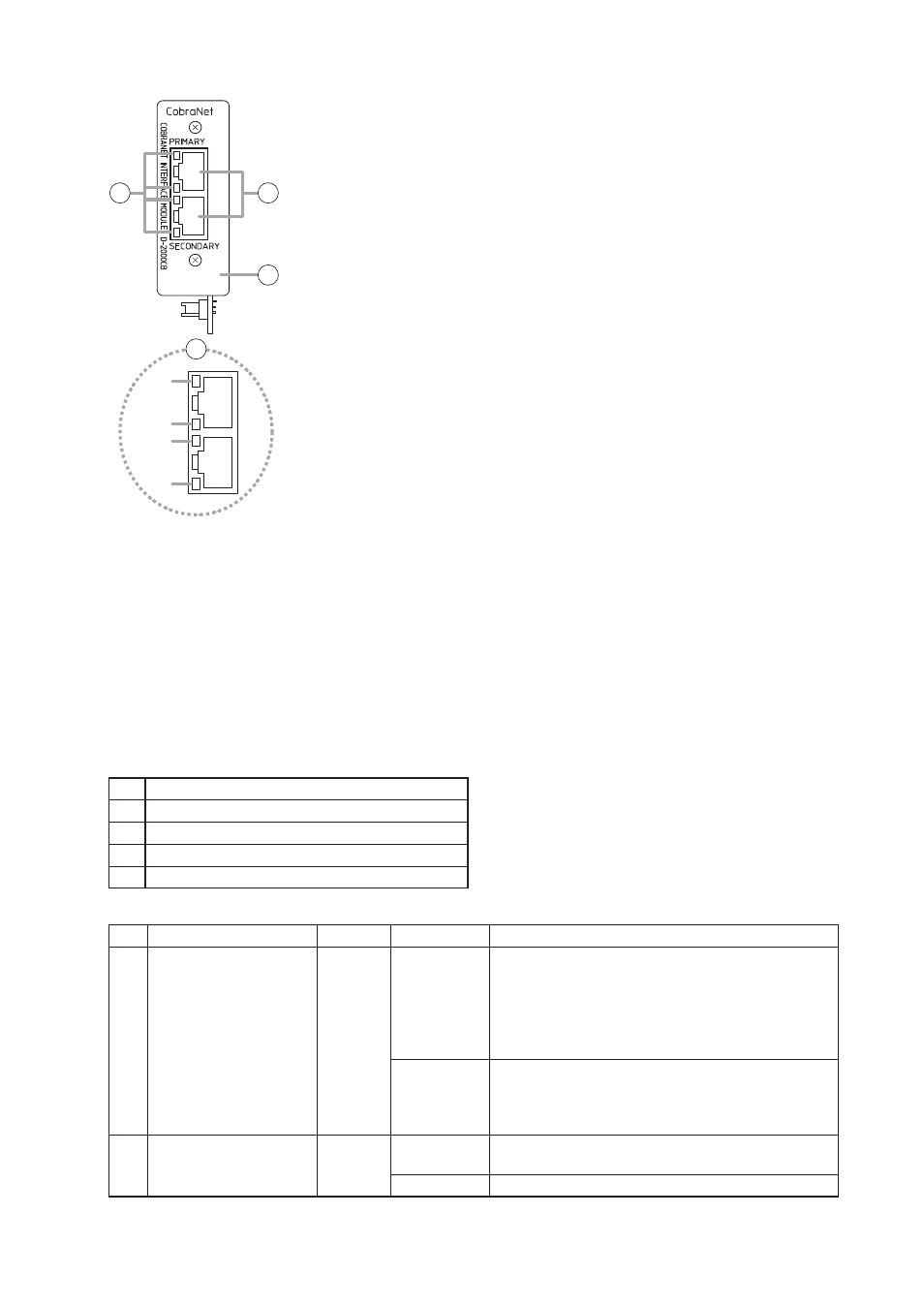

2.4.18. D-2000CB CobraNet Interface Module
29. CobraNet terminals [PRIMARY/SECONDARY]
Terminals used for CobraNet connection. Connect with the commercially available CobraNet device via a
switching hub.
Connect the Primary and Secondary terminals to each single switching hub or two cascade-connected
switching hubs.
Notes
• Be sure to connect both the Primary and Secondary terminals to a switching hub.
• After connection completion, press the D-2008SP's front-mounted Reset switch to restart the D-2008SP.
• Concerning a switching hub, contact TOA dealer.
30. Indicators
29 30
30
31
(a)
(b)
(c)
(d)
LED name
(a)
LED Name
(b)
(c)
(d)
PRIMARY operation/CONDUCTOR indicator
PRIMARY LINK/ACT indicator
SECONDARY operation/ CONDUCTOR indicator
SECONDARY LINK/ACT indicator
Detailed function
LED Function LED color LED status System status
(a)
(c)
(b)
(d)
Operation/CONDUCTOR
indicator
Unlit
LINK/ACT indicator Green Flashing or lit
Unlit
Orange Flashing or lit
Not operating
Note
Both of the PRIMARY and SECONDARY indications
could not go out at a time.
Link to the switching hub, or data transmission and
reception
Unconnected
CobraNet operation
Flashing: Conductor
Lit: Performer
Note
One of the PRIMARY and SECONDARY indicators
flashes or lights.
31. Panel
