15

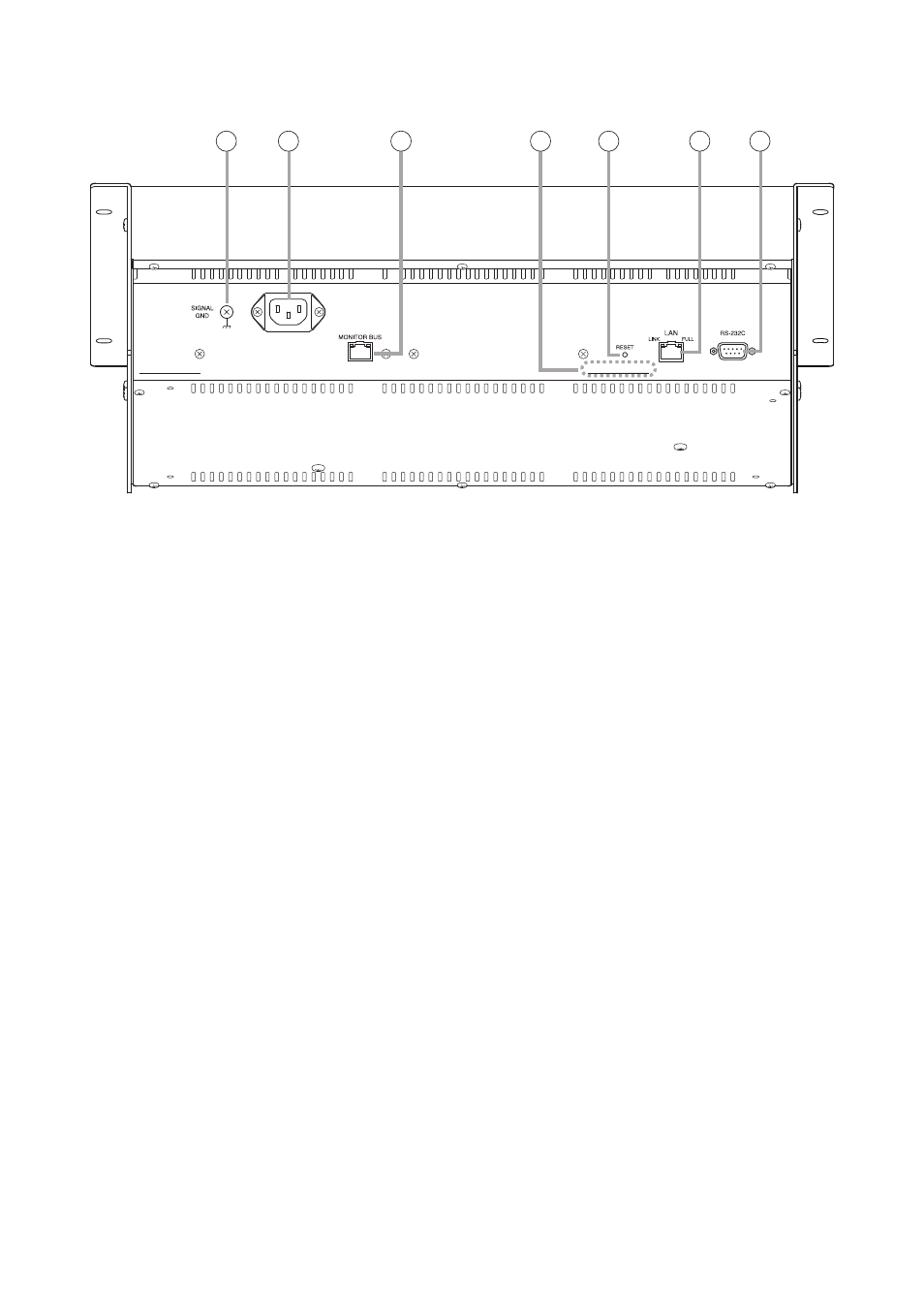

[Connection panel]
19 20 21 22 23 24 25
19. Functional earth terminal
Note: This terminal is not for protective earth.
20. AC Inlet
Connect this inlet to the wall AC outlet using the
supplied power cord.
The socket-outlet shall be installed near the
equipment and the plug (disconnecting device)
shall be easily accessible.
21. Monitor bus terminal
An audio transmission connector for the D-
2008SP. Connects to the D-2008SP's Monitor
bus terminal. D-2008SP's audio signals are
output to the headphone jack through the
monitor bus or audio signals from the Line input
terminals (14) are input to the D-2008SP.
22. MAC address
This is the address* used by the unit. Since the
relationship of the unit's location to its MAC
address is established when setting the network
attributes, keep track of this relationship for later
use.
* The inherent address assigned to each network
component, expressed in 12-digit hexadecimal
notation.
23. Reset switch
Avoid touching this switch, as it is used only
during maintenance.
24. LAN connection terminal
Connect this terminal to a 10BASE-T- or
100BASE-TX-compatible network. This terminal
can also be connected to a PC and D-2008SP
via a switching hub.
(For the IP address setting, refer to "Network
Settings" of the separate software setting
manual.)
25. RS-232C terminal
This RS-232C connector is provided for
maintenance purposes.
