TeeJet Legacy 6000 RMS_EXT User Guide - Manual (Page 60)

4-18 Chapter 4 - Real-time Operation
Mapping Points, Hazards, Weather, & Notes
RMS-EXT for the Legacy 6000
Software Version 2.00
Marking a Weather Point
It is possible to add a point describing significant weather conditions, such as wind speed and
direction, temperature, etc.. To create a weather point, drive to the location that the point is associ-
ated with. Press the Map Object soft-key and select the weather symbol, (Figure 4-13). The
weather wizard dialog appears (Figure 4-18). Select the appropriate conditions and press enter. A
weather point symbol is placed on the real-time map, (Figure 4-19).

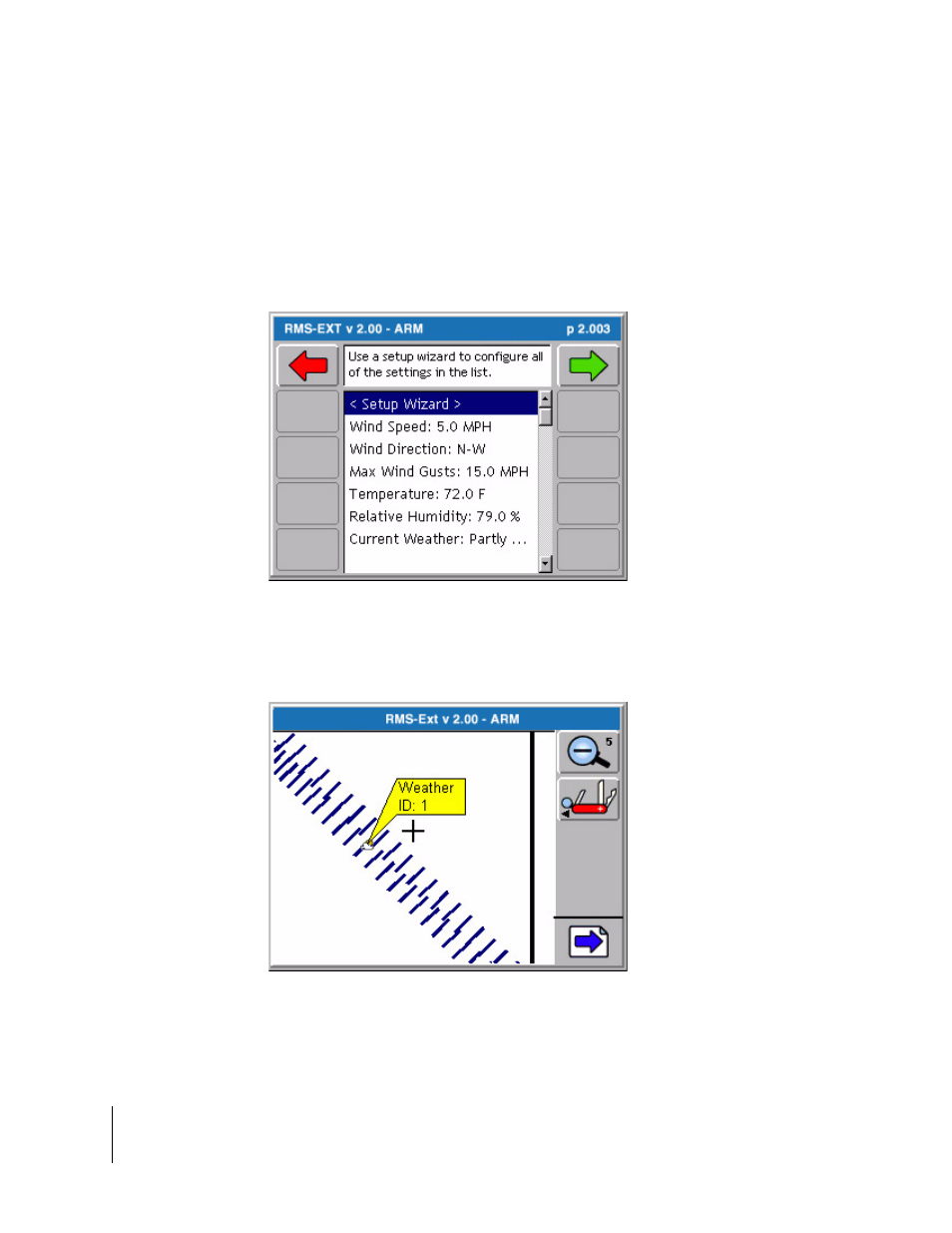

Figure 4-18: Weather Wizard Page
Figure 4-19: Weather Point in Map Page
