Product Application
The Boom Status Page
Press the Change Page soft-key, from the Map page, to bring up the Boom Status page (Figure 4-
9). This page displays the current boom section status for the vehicle.
An active section appears in Bright Green while an inactive section appears in Gray (Figure 4-10).

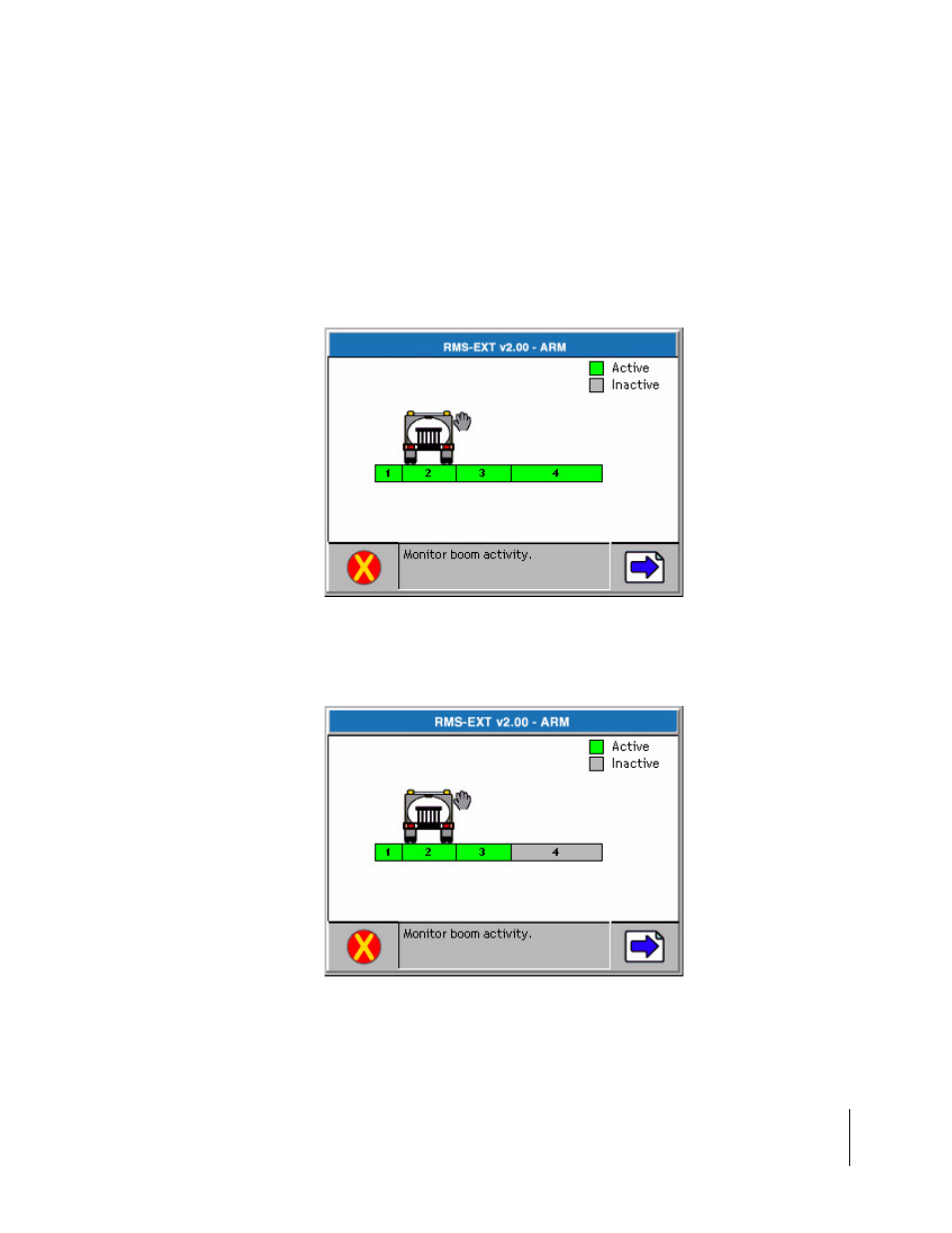

Figure 4-9: The Boom Status Page
Figure 4-10: The Boom Status Page
