TeeJet Legacy 6000 RMS_EXT User Guide - Manual (Page 59)

RMS-EXT for the Legacy 6000
Software Version 2.00
Chapter 4 - Real-time Operation 4-17
Mapping Points, Hazards, Weather, & Notes
Marking a Note
Another feature in RMS-EXT is the ability to create a note about a particular situation and location
during real-time product application. To create a note, drive to the location that the note is associ-
ated with. Press the Map Object soft-key and select the Note, (Figure 4-13). A Note dialog appears
(Figure 4-16). Enter the note text and press enter. A note symbol is placed on the real-time map,
(Figure 4-17).

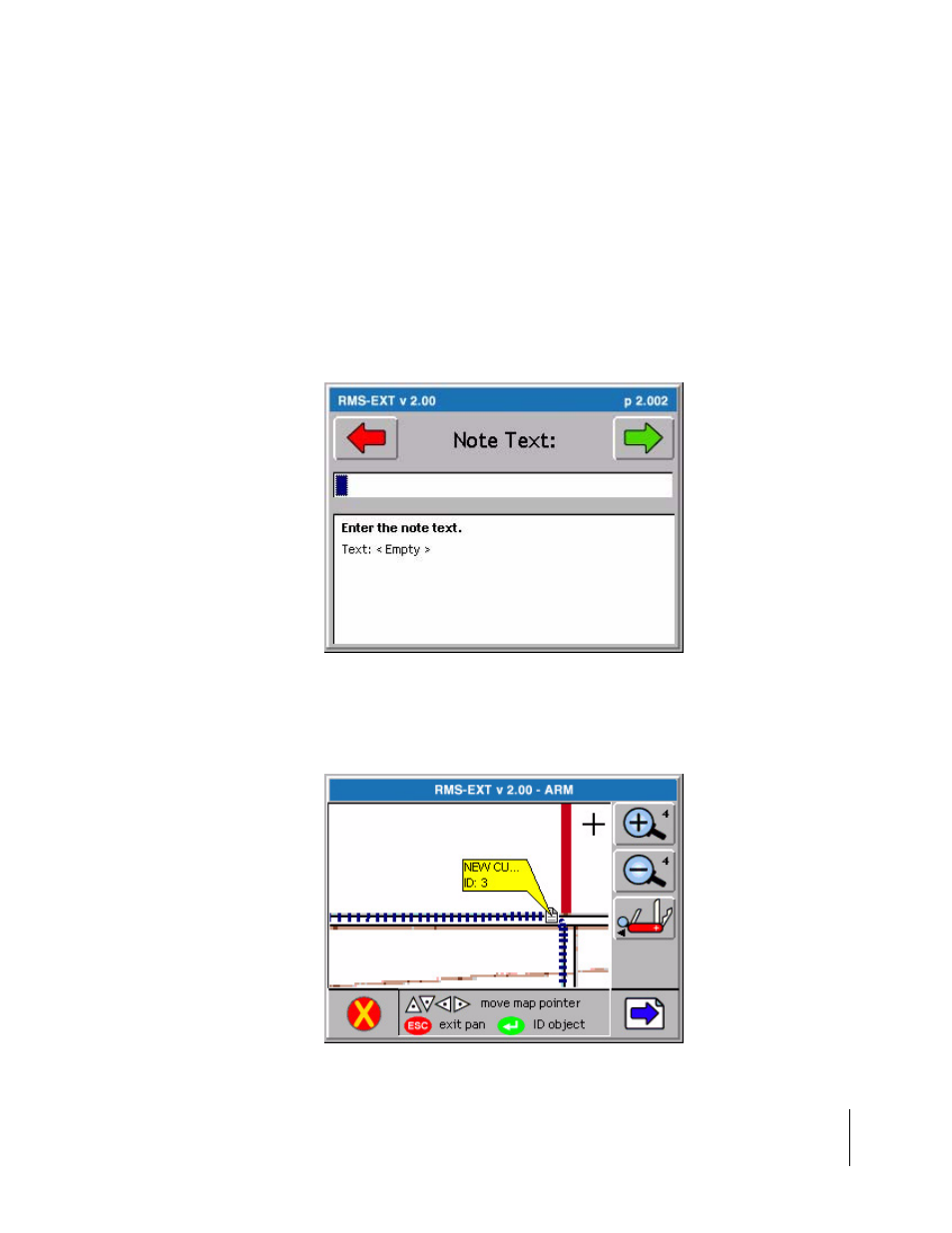

Figure 4-16: The Note Dialog
Figure 4-17: The Note Message
