RMS Office
Software Version 3.10
Chapter 4 - RMS Map Manager 4-11
The RMS Map Manager Tool Bar
Circle Tool (Drag Option) - select this, to draw a circle by pressing and holding down the
left mouse button. Drag the mouse with left button depressed to create the desired
radius. Release the left mouse button to create circle object. Select and hold down the
left mouse button on the circle tool ,and two other circle drawing options (Radius and 3-
Point) appear in the drop down tool.
Circle Tool (Radius Option) - select, and click the left mouse button at center location of
desired circle in the map view. A small Radius dialog box appears. Enter the desired cir-
cle radius and click OK.
Circle Tool (3-Point Option) - select, and click left mouse button on three different loca-
tions that the circle perimeter is to intersect. When you select the third point, the circle is
drawn.
Text Tool - select this to add text to the maps. See The Text Tool on page 4-12.
Guideline Tool - select this to build a guideline file in Map Manager. A - B lines can be
constructed, either by clicking on the start and end points of the line with the mouse, or
by entering the coordinates of the start and end points. A (.GLN) file must be the top
layer.
Measuring Tool - select this to measure the distance between two points. There are two
modes: mark and stream. Mark mode returns the distance between end points (straight
lines only), and stream mode returns the length of line distance (curved lines).
Button Description

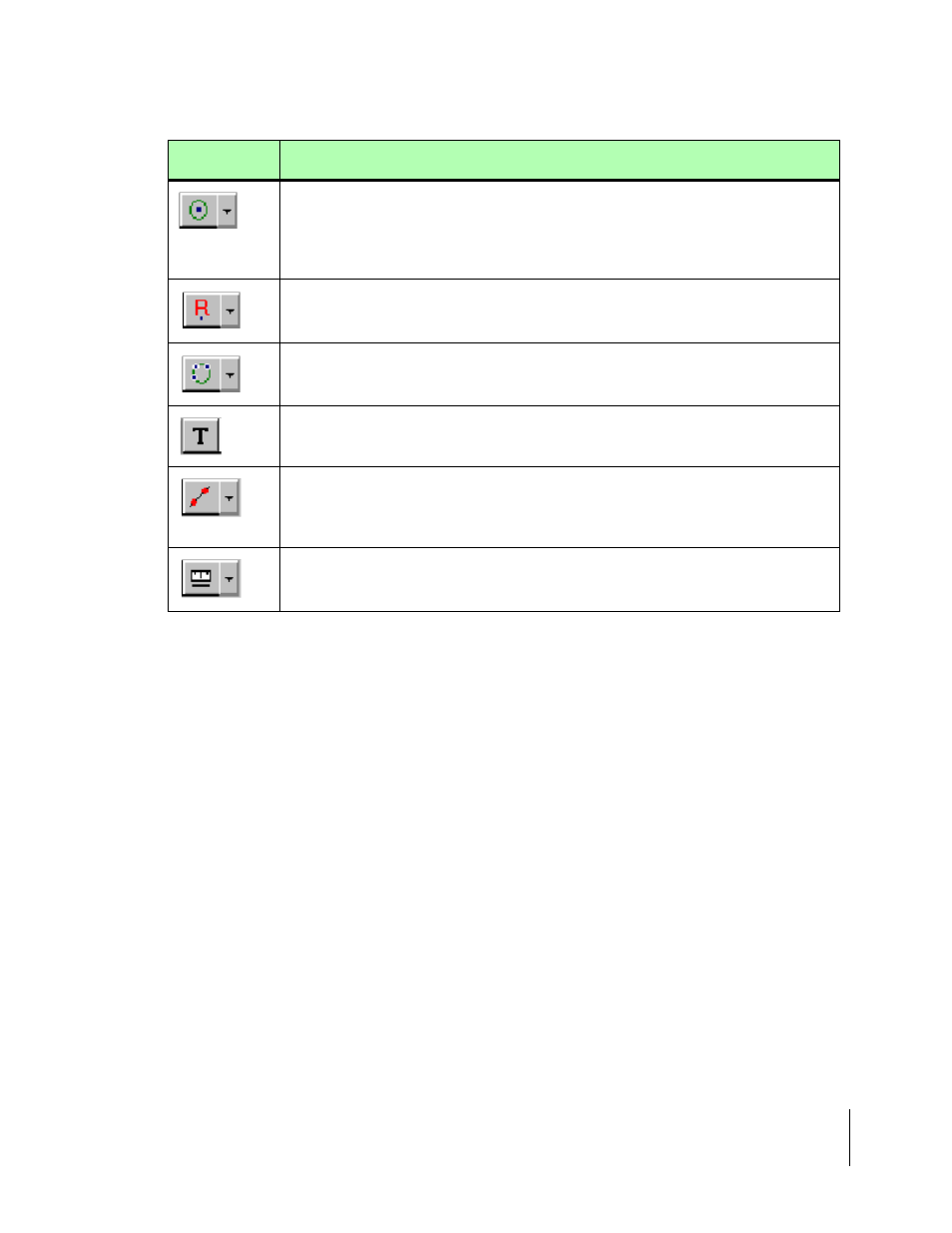

Table 4-2: Map Manager Tool Bar Button Descriptions
