4-30 Chapter 4 - RMS Map Manager
Shape File Conversion
RMS Office
Software Version 3.10
Importing Shape Files to RMS Data Files
The second conversion process is importing a shape file into an RMS data file. For example, there
are many background files such as roadways that are in the shape format. You can import these
files into a RMS GMF file, and view it in the background of any RMS real-time application, such as
Mapper.
The Import from Shape Dialog
Use the Import from Shape dialog to select the files or folders that you want to convert from the
shapefile format to an RMS data file. Review the Import Setup dialog prior to running the Import
process. Table 4-12 describes the Import from Shape dialog features.

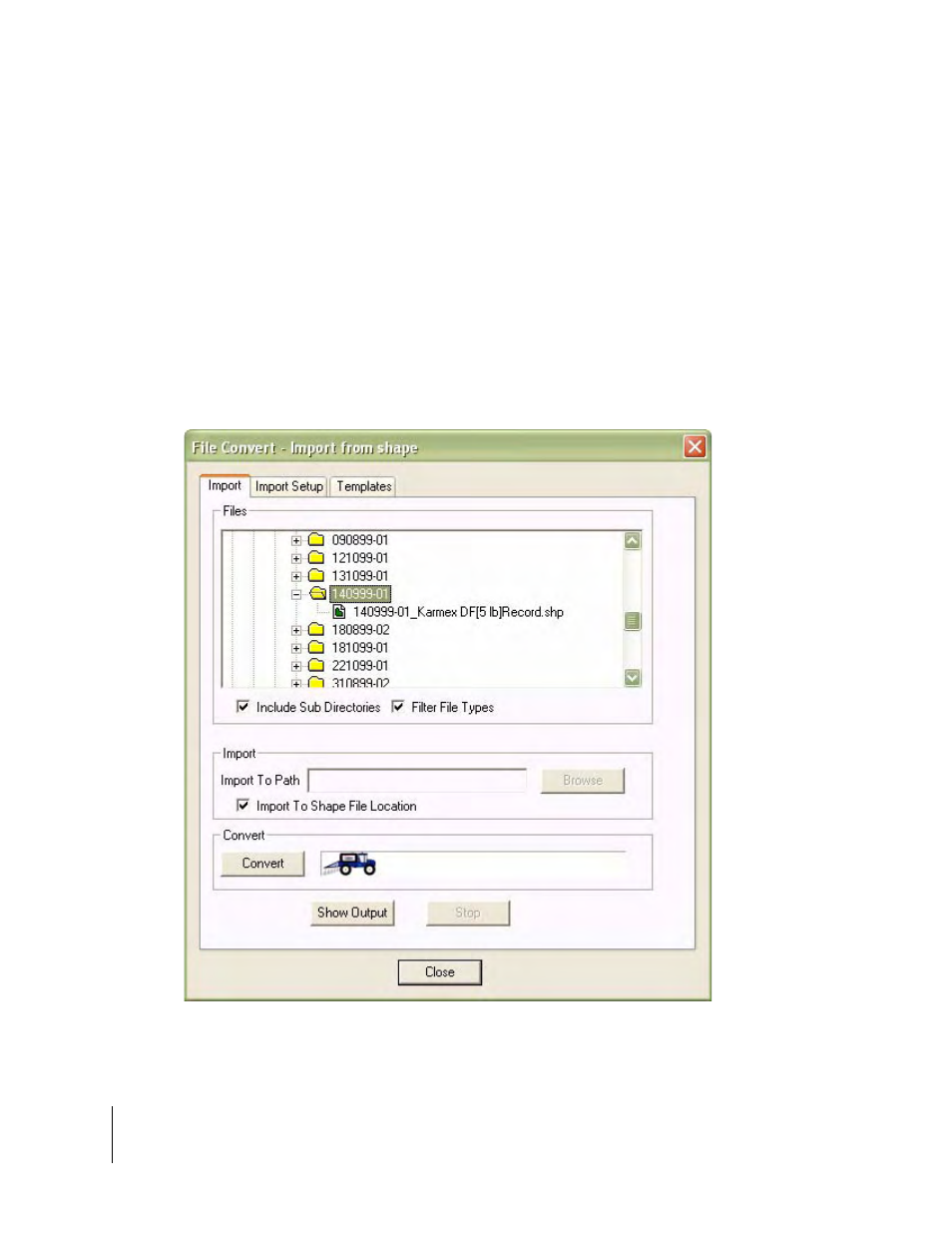

Figure 4-21: The Import Dialog
