RMS Office
Software Version 3.10
Chapter 4 - RMS Map Manager 4-25
Shape File Conversion
The Export to Shape Setup Dialog
In the Setup dialog (Figure 4-19), you can control and set various parameters involved in the
export process. This dialog should be reviewed prior to exporting any files. The main function of
the Export Setup dialog is to define which RMS objects are exported, and to describe how these
objects are transferred/combined to create one or more shapefiles.

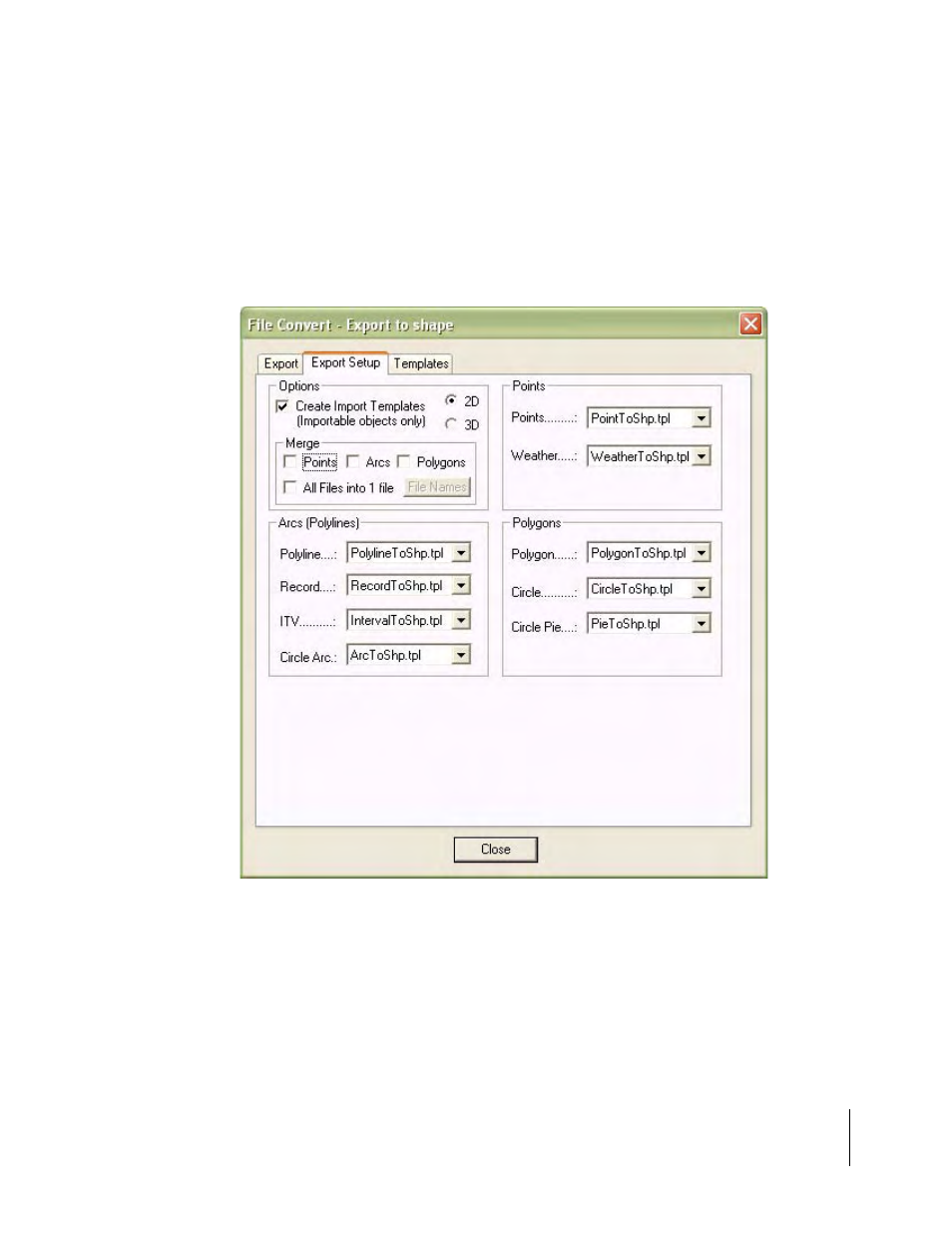

Figure 4-19: The Export to Shape Setup Dialog
