Chapter 5: Live view
TruVision NVR 21(S/P) User Manual 33
Multiview format
The recorder has full screen display format as well as five multiview formats.
Viewing in full screen
Press the numeric button on the front panel to switch to the corresponding camera
display. For example, press button 10 to view camera 10.
Right-click the mouse and select Single Camera from the menu. Select the camera
required from the list.
Viewing in multiview
A video tile is any cell in a multiview display. A camera image can only be shown in one
video tile at a time. The recorder has up to five multiview display formats available
(depending on recorder model) as well as full screen. See Figure 12 below.
To change the multiview display that appears by default, go to the Display menu. See
“Changing the camera sequence” on page 37 for more information.

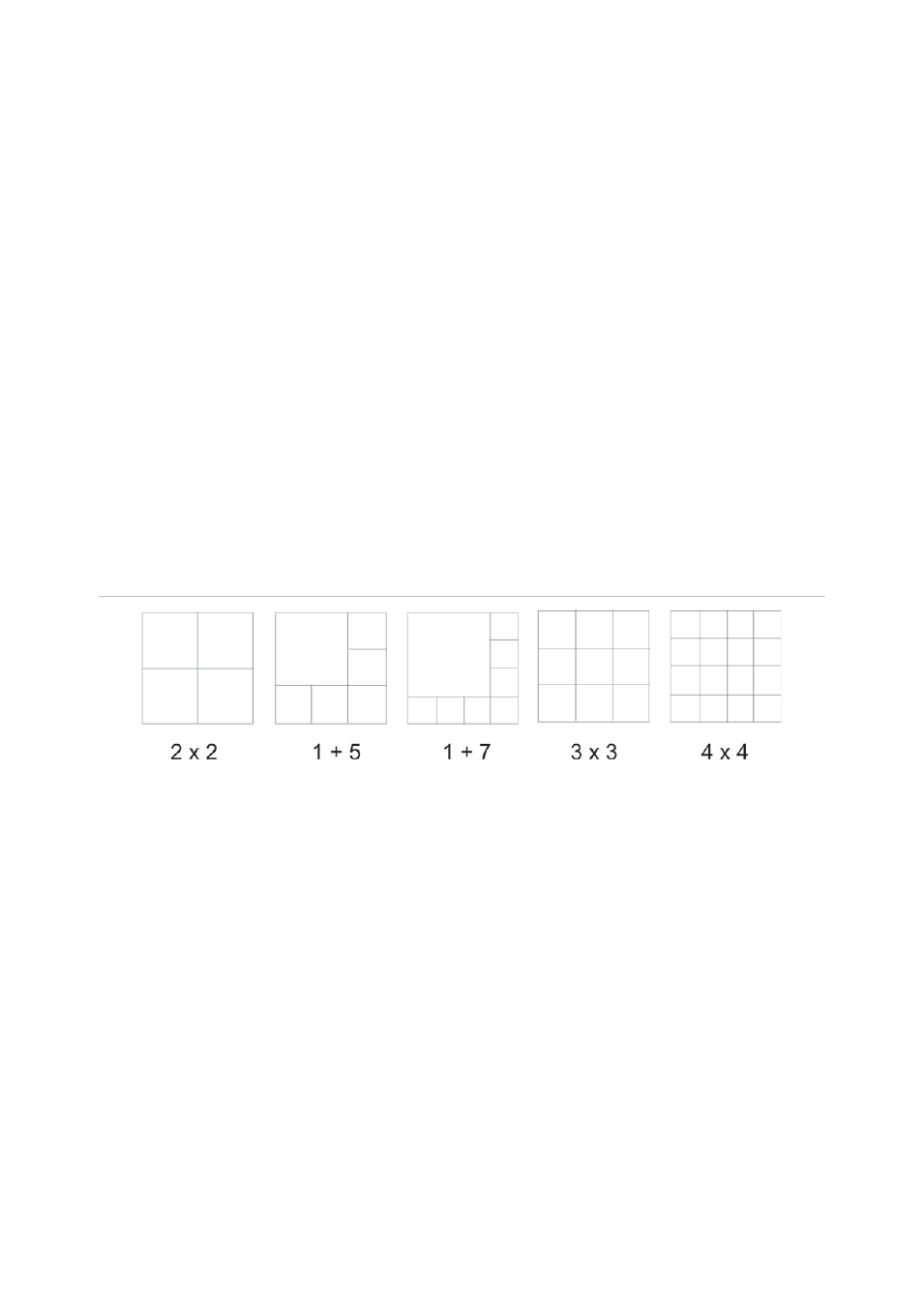

Figure 12 : Multiview display formats
To select a multiview format:
1. Press the Display button on the front panel to cycle through different display
formats.
You can also right-click the mouse and select Multi Camera from the menu. Select
the desired multiview display layout.
Sequencing cameras
The sequencing feature allows a camera to be displayed briefly on screen, before
advancing to the next camera in the sequence list.
The default sequence displays each camera in numerical order. However, each camera
on the main and spot monitors can have a pre-programmed dwell time and sequence
order. See “Changing the camera sequence” on page 37 for more information.
