Chapter 2: Installation
TruVision NVR 21(S/P) User Manual
7

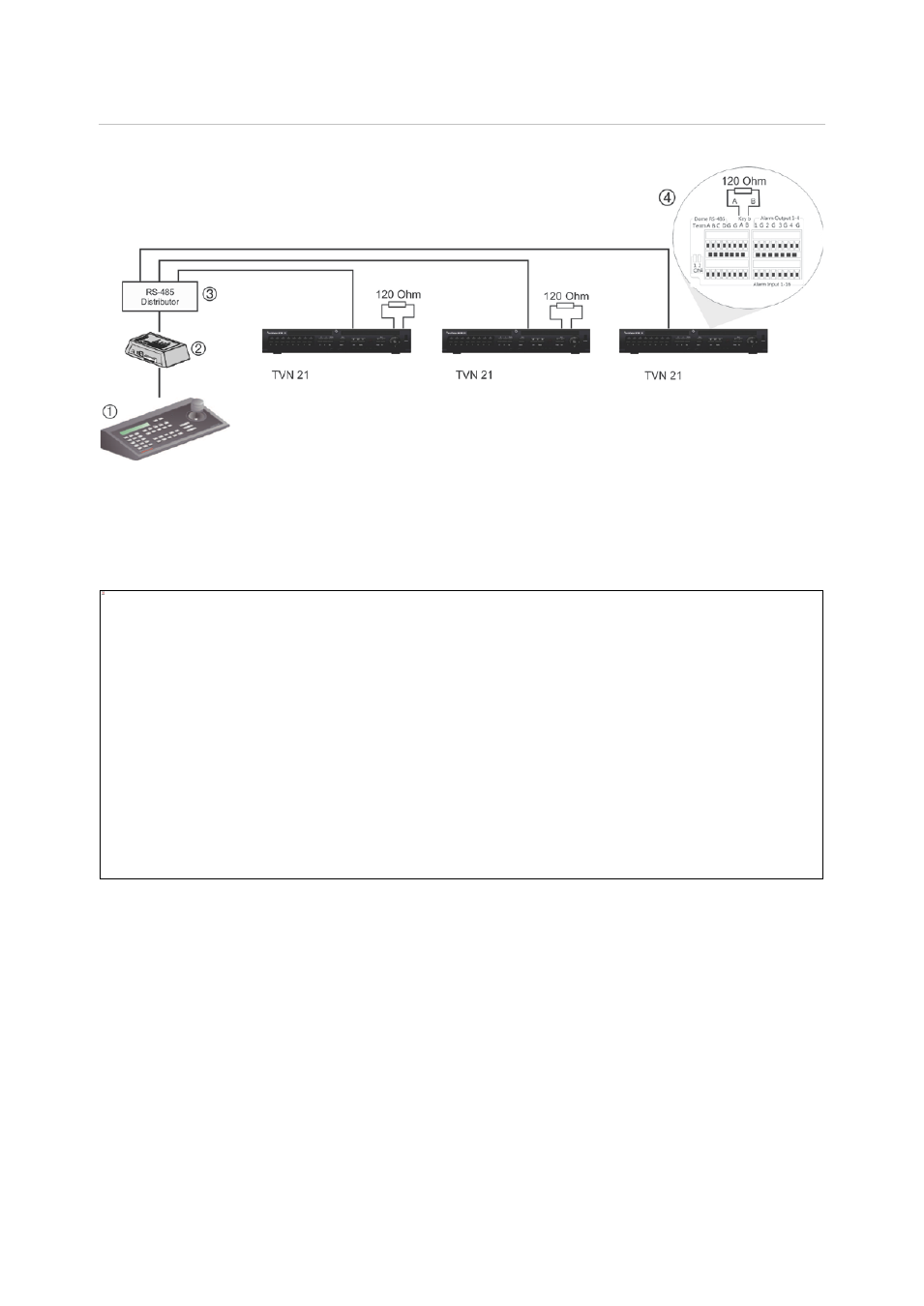

Figure 3: Star wiring with RS-485 signal distributor
Correct:
1. Keypad
2. I/O box
3. RS-485 distributor
4. See section “RS-485 ports” on page 8
Incorrect:
1. Keypad
2. I/O box
3. See section “RS-485 ports” on page 8
Use an RS-485 signal distributor to increase the maximum number of devices on the
bus as well as the total range. Each distributor output provides another RS-485 bus,
extending the output an additional 1200 m. Up to 31 recorders can be connected to
each output. See Figure 4 below.
