Appendix D:
KTD-405 keypad
148
TruVision NVR 21(S/P) User Manual

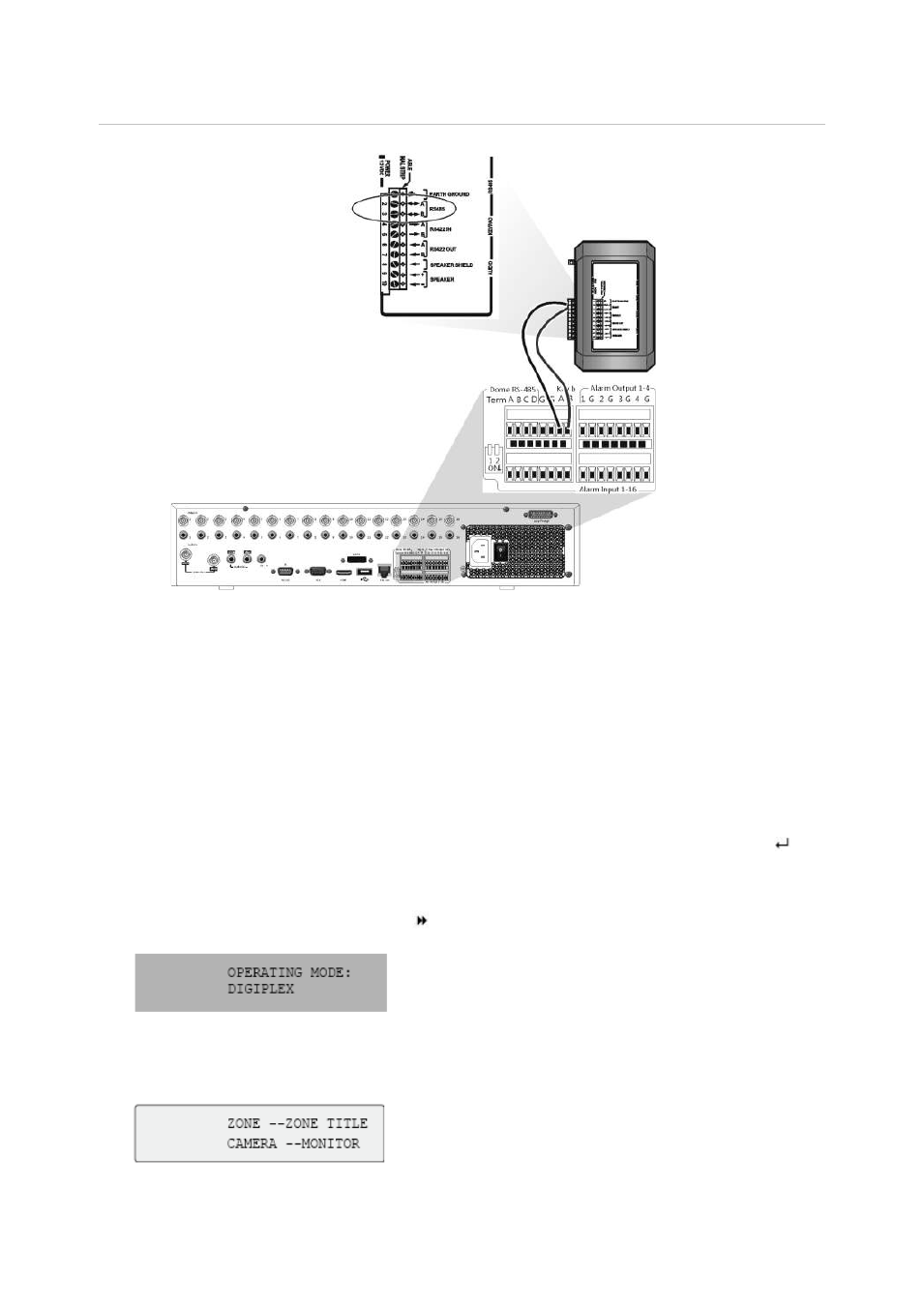

Figure 41: Keypad and recorder connections
I/O box
Back panel of
TVN 21
Setting up the keypad to work with the recorder
The keypad must be in zone mode to connect correctly with the recorder.
Further information on connecting and programming the KTD-405 keypad can be found
in the user manual.
To set the keypad in zone mode:
1. Log into the keypad using the Admin password. Hold down the Enter button (
)
until a beep sounds and then enter the following code:
1 4 7 6.
Push the
seq
button to confirm.
2. Scroll through the menus with the
button until this menu appears:
3. Change Operating Mode to Zone by moving the joystick down.
4. Quit the menu by pressing the
seq
button. The display will show, for example:
