Chapter 5: Live view
TruVision NVR 21(S/P) User Manual 31
Table 7: Monitor output for playback
Resolution Number of recorder channels
(NTSC/PAL) 32
(TVN 21P only)
16 8
4CIF/VGA 16 16 8
1280 Ч 720 16 16 8
1280 Ч 960 8 8 8
1920 Ч 1080 8 8 8
2048 Ч 1536 (15/12f) 4 4 4
2560 × 1920 (6f) 2 2 2
3072 × 2048 1 1 1
Audio output
The HDMI monitor connector on the back panel outputs both video and audio signals.
There is an audio output on the back panel for speakers.
Controlling live view mode
Many features of the live view mode can be quickly accessed by placing the cursor on a
live image and clicking the right-button of the mouse. The mouse menu appears (see
Figure 11 below).

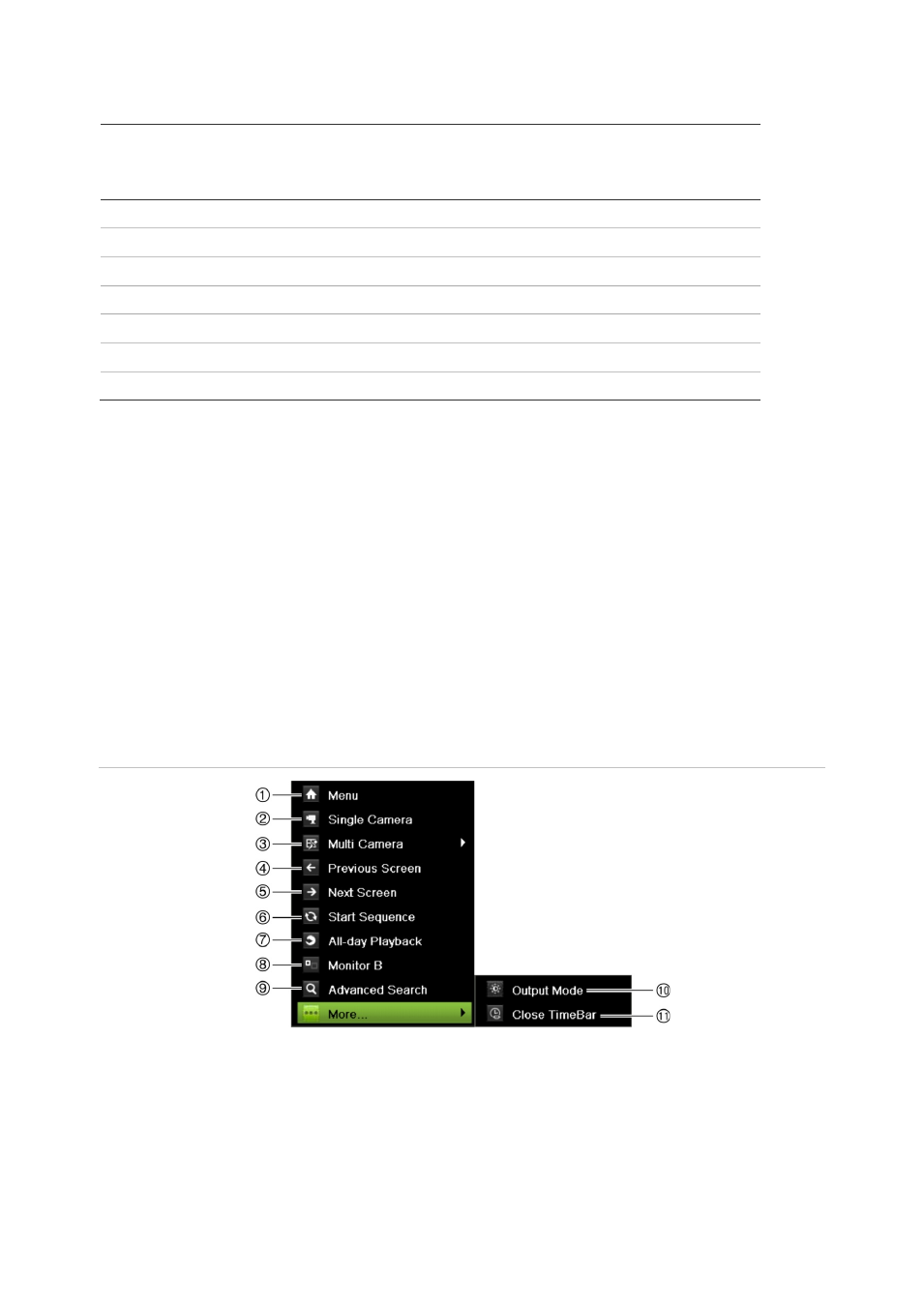

Figure 11: The mouse menu for the main monitor
The list of commands available depends on which monitor is active; main or event
(monitor B). See Table 8 below. The default settings of these commands are provided
in Appendix G, “Default menu settings” on page 157.
