76

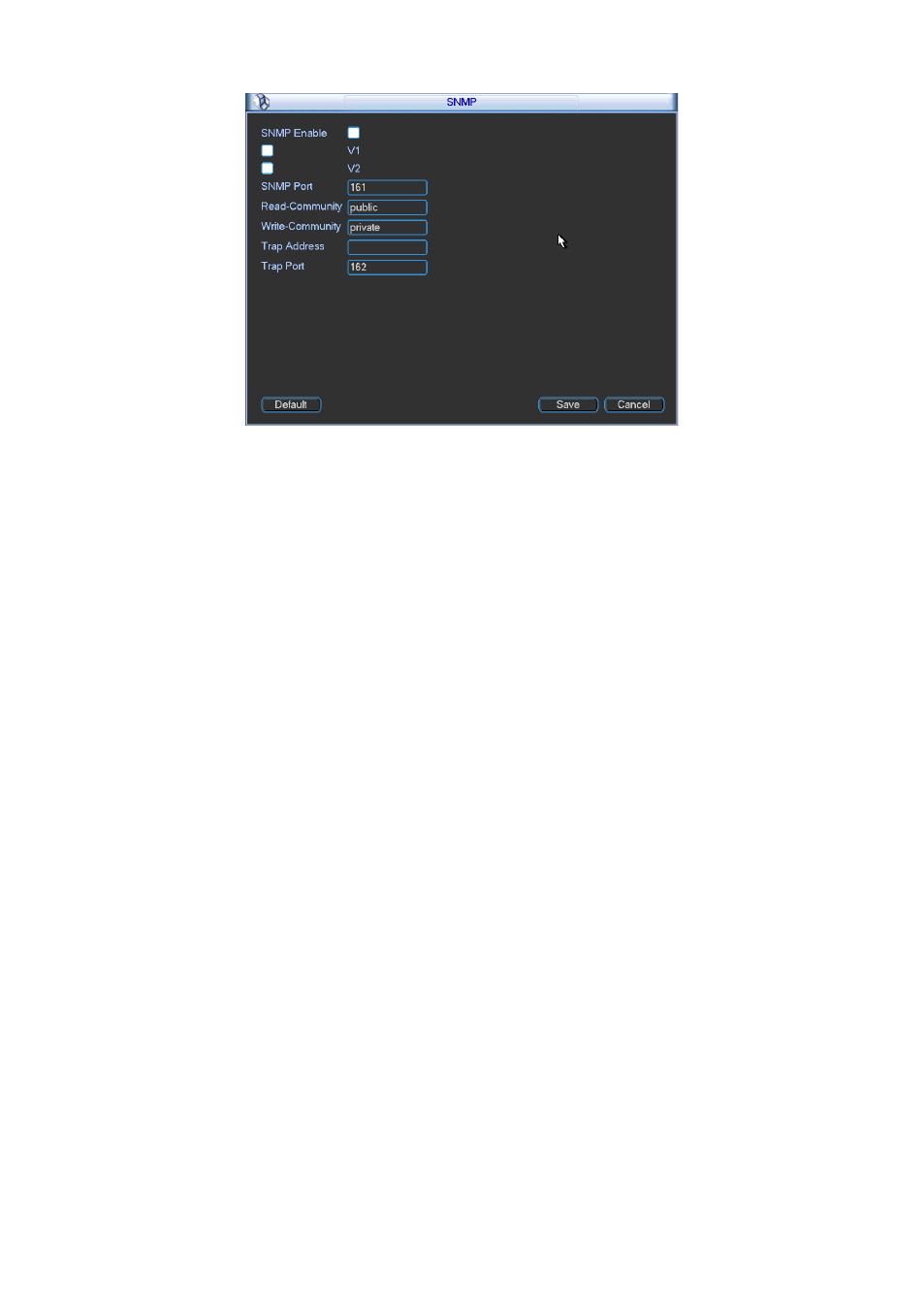

Figure 5-30
Please enable the SNMP function. Use the corresponding software tool (MIB Builder and MG-
SOFT MIB Browser. You still need two MIB file: DAHUA-BASE-SNMP-MIB, DAHUA-DVR-
SNMP- MIB) to connect to the device. You can get the device corresponding configuration
information after successfully connection.
Please follow the steps listed below to configure.
 In Figure 5-30, check the box to enable the SNMP function. Input the IP address of the PC
than is running the software in the Trap address. You can use default setup for the rest
items.
 Compile the above mentioned two MIB file via the software MIB Builder.
 Run MG-SOFT MIB Browser to load the file from the previous step to the software.
 Input the device IP you want to manage in the MG-SOFT MIB Browser. Please set the
corresponding version for your future reference.
 Open the tree list on the MG-SOFT MIB Browser; you can get the device configuration. Here
you can see the device has how many video channels, audio channels, application version
and etc.
5.3.6 Alarm
Please refer to chapter 4.6 Alarm Setup and Activation.
5.3.7 Detect
Please refer to chapter 4.5 Detect.
5.3.8 Pan/Tilt/Zoom
The pan/tilt/zoom setup includes the following items. Please select channel first. See Figure 5-31.
 Protocol: Select corresponding PTZ protocol such as PELCOD.
 Address: input corresponding PTZ address.
 Baud rate: Select baud rate.
 Data bit: Select data bit.
 Stop bit: Select stop bit.
 Parity: There are three choices: none/odd/even.
