IC Realtime Flex Series: 32-CH High Performance H.264E 2U DVR User Manual
Page 47
37
Please highlight icon
to select the corresponding function. After completing all the setups
please click save button, system goes back to the previous menu.
At the bottom of the menu, there are color bars for your reference . Green color stands for
regular recording, yellow color stands for motion detection and red color stands for alar m
recording. The white means the MD and alar m record is valid. Once you have set to record
when the MD and alar m occurs, system will not record neither motion detect occurs nor the
alarm occurs.

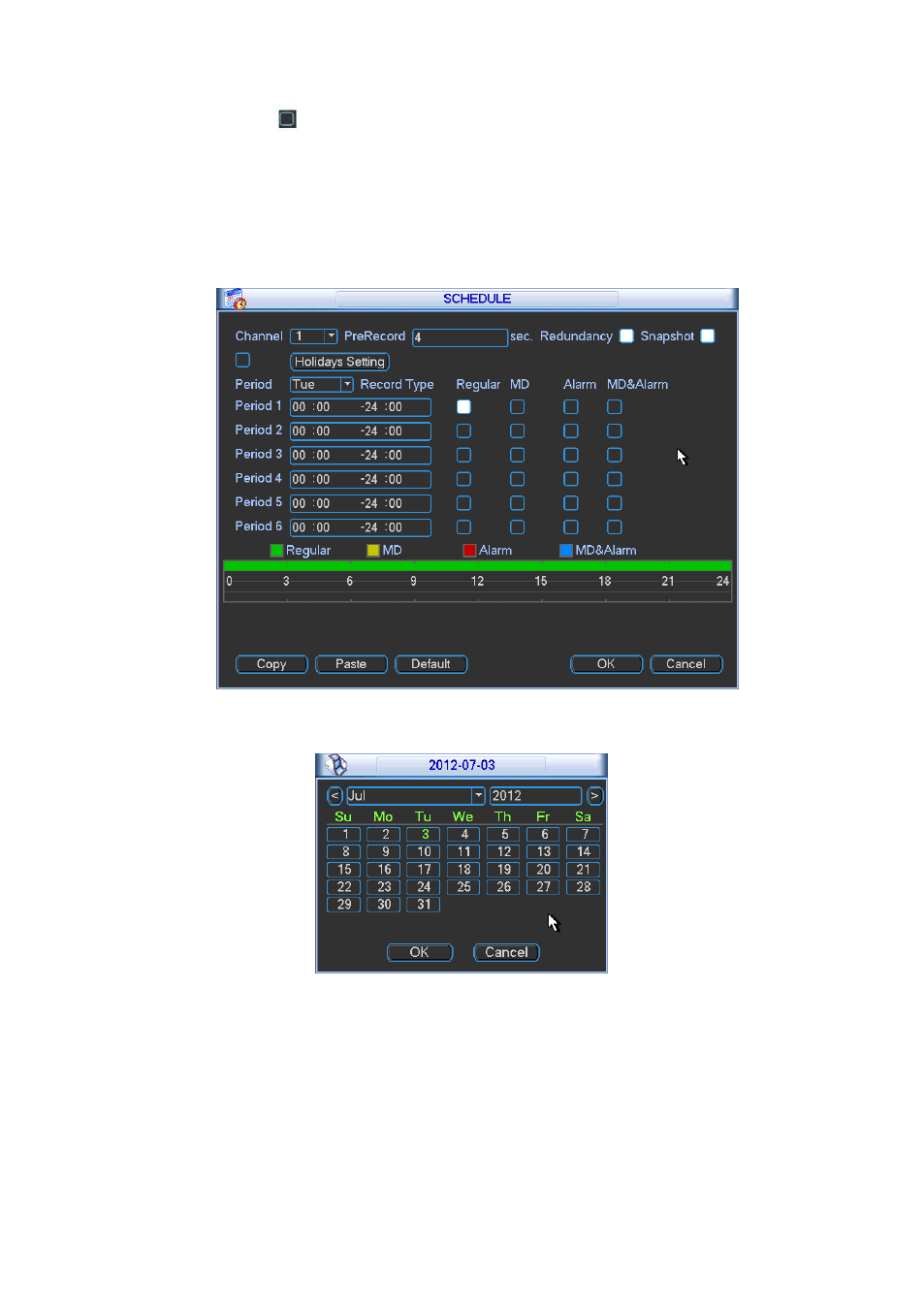

Figure 4-14
Figure 4-15
4.5.1.1 Quick Setup
This function allows you to copy one channel setup to another. After setting in channel 1, you can
click paste button and turn to channel 2 and then click copy button. You can finish setting for one
channel and then click save button or you can finish all setup and then click save button to
memorize all the settings.
