51
4.9 PTZ Control and Color Setup
Note: All the operations here are based on PELCOD protocol. For other protocols, there
might be a little difference.
4.8.1 Cable Connection
Please follow the procedures below to go on cable connection
 Connect the dome RS485 port to DVR 485 port.
 Connect dome video output cable to DVR video input port.
 Connect power adapter to the dome.
4.8.2 PTZ Setup
Note: The camera video should be in the current screen. Before setup, please check the
following connections are right:
 PTZ and decoder connection is right. Decoder address setup is right.
 Decoder A (B) line connects with DVR A (B) line.
Boot up the DVR, input user name and password.

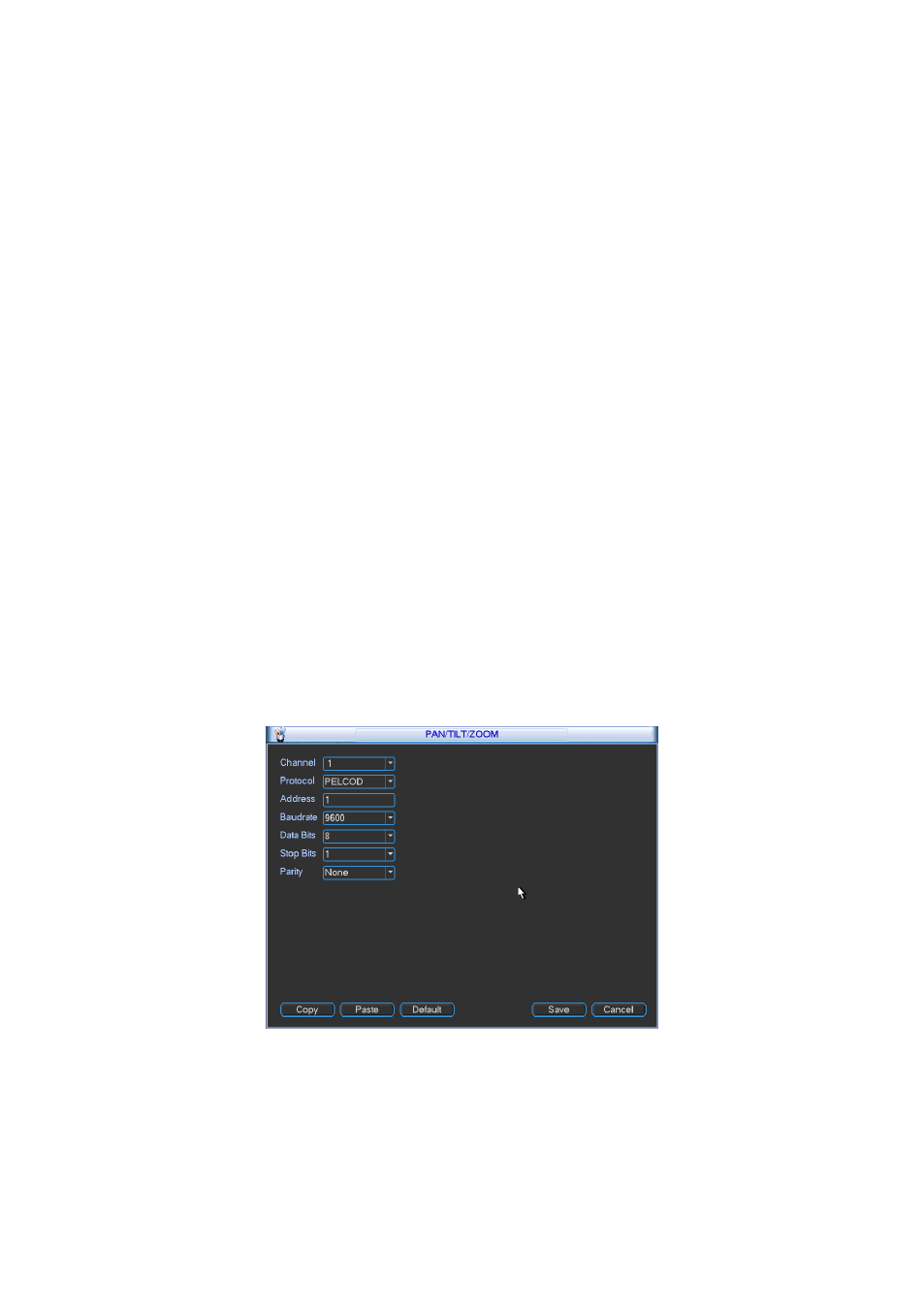

In the main menu, click setting, and then click Pan/T ilt Control button. The interface is shown
as in Figure 4-36. Here you can set the following items:
 Channel: select the current camera channel.
 Protocol: select corresponding PTZ protocol(such as PELCOD)
 Address: default address is 1.
 Baud rate: select corresponding baud rate. Default value is 9600.
 Data bits: select corresponding data bits. Default value is 8.
 Stop bits: select corresponding stop bits. Default value is 1.
 Parity: there are three options: odd/even/none. Default setup is none.
Figure 4-36
After completing all the setting please click save button.
In one window display mode , right click mouse (click “Fn” Button in the front panel or click
“Fn” key in the remote control). The interface is shown as in Figure 4-37.
