IC Realtime Flex Series: 32-CH High Performance H.264E 2U DVR - Manual (Page 106)

96
6 About Auxiliary Menu
6.1 Go to Pan/Tilt/Zoom Menu

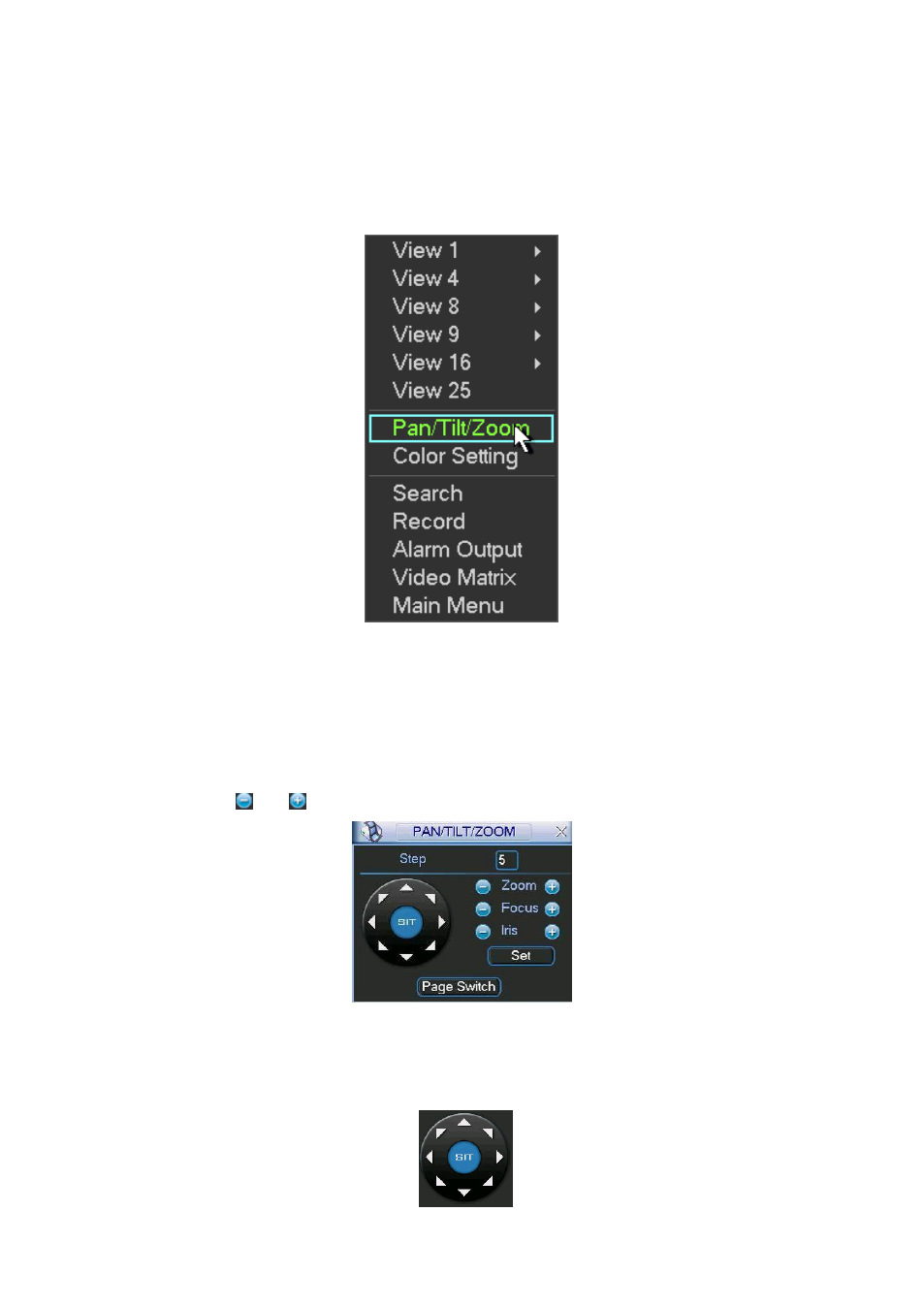

In the one-window surveillance mode , right click mouse (click “fn” Button in the front panel or
click AUX key in the remote control). The interface is shown as below: See
X397 H39 7H39 7H
Figure 6-1
X
.
Figure 6-1
Click Pan/Tilt/Zoom, the interface is shown as in
X3 98H3 98H3 98H
Figure 6-2
X
.
Here you can set the following items:
 Zoom
 Focus
 Iris
Please click icon and to adjust zoom, focus and Iris.
Figure 6-2
In
X399H399 H39 9H
Figure 6-2
X
, please click direction arrows (See
X400 H40 0H40 0H
Figure 6-3
X
) to adjust PTZ position. There
are totally eight direction arrows. (Please note there are only four direction arrows in DVR front
panel.)
