69

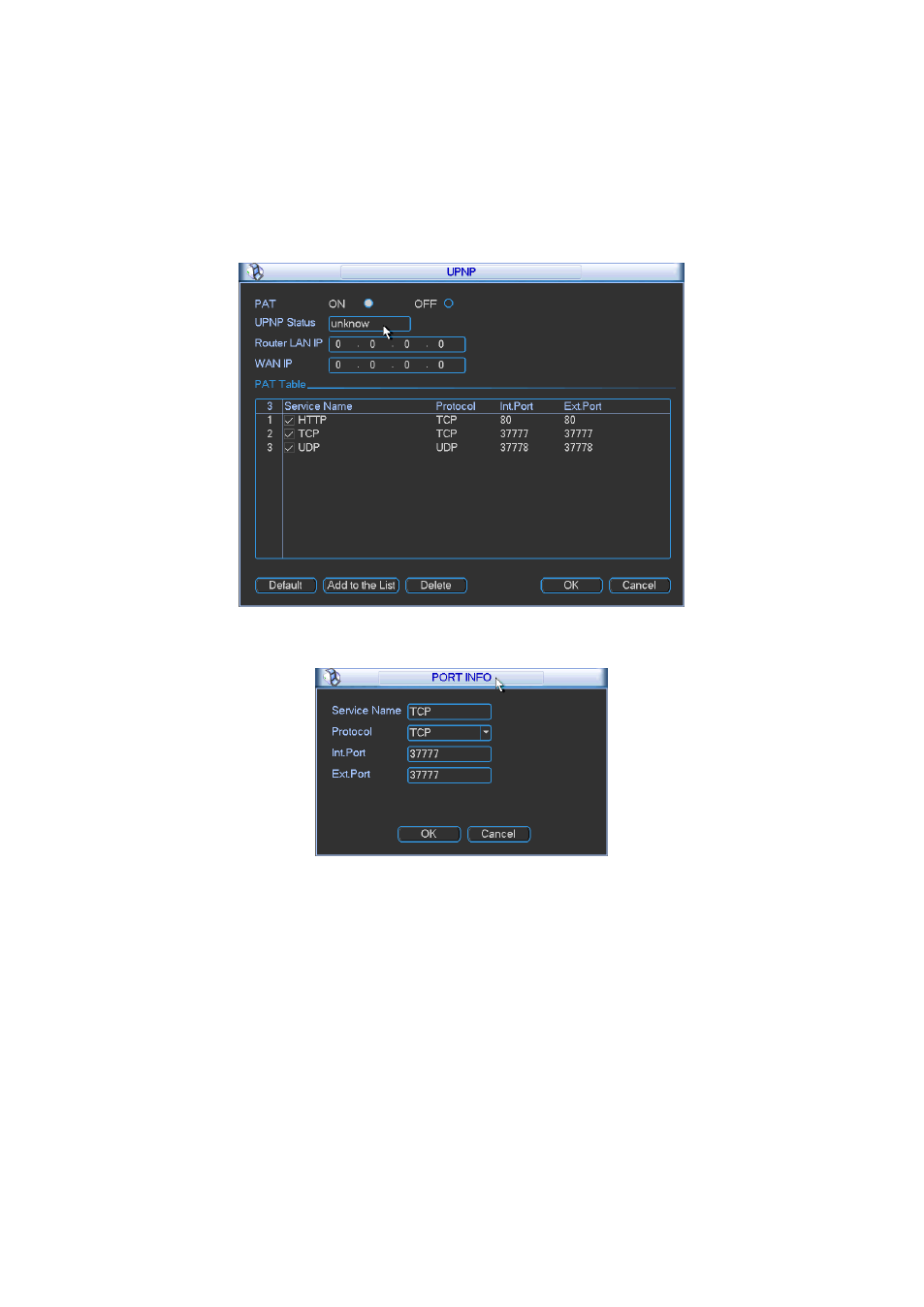

Double click one item; you can change the corresponding mapping information. See Figure 5-18.
Important:
When you are setting the router external port, please use 1024~5000 port. Do not use well-
known port 1~255 and the system port 256~1023 to avoid conflict.
For the TCP and UDP, please make sure the internal port and external port are the same to
guarantee the proper data transmission.
Figure 5-17
Figure 5-18
5.3.5.8 WIFI Setting
You can view the WIFI connection status in the Network Setting interface. See Figure 5-19.
You can view current connection status and IP address if there is a connection.
