4.9.4 Activate Patrol (tour)
In
X341H341 H34 1H
Figure 4-41, input patrol (tour) number in the No. blank and click patrol button
4.9.5 Pattern Setup

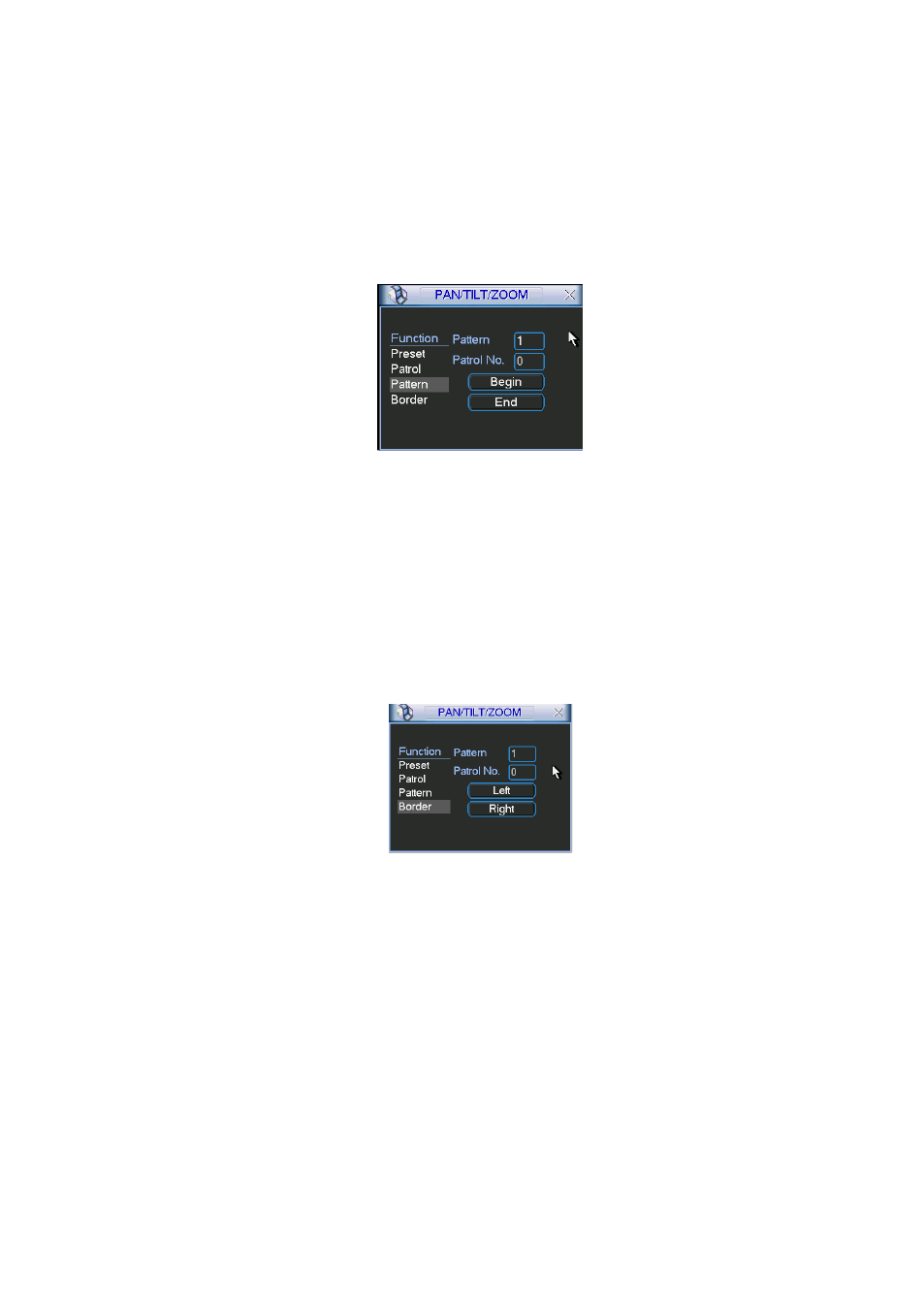

In Figure 4-41, click pattern button and then cl ick “begin” button. The interface is shown as in
Figure 4-45. Then you can go to Figure 4-38 X to modify zoom, focus, and iris.
Go back to Figure 4-45 and click “end” button. You can memorize all these operations as pattern
1.
Figure 4-45
4.9.6 Activate Pattern Function
In
X346H346 H34 6H
Figure 4-39, input mode value in the No. blank, and click pattern button.
4.9.7 Auto Scan Setup
In
X347H347 H34 7H
Figure 4-38, click border button. The interface is shown as in
X34 8H34 8H34 8H
Figure 4-43.
Please go to
X 349H 349H 349H X34 9H34 9H34 9H
Figure 4-35, use direction arrows to select camera left limit
Then please go to
X3 50H3 50H3 50H
Figure 4-43
X
and click left limit button
Repeat the above procedures to set right limit.
Figure 4-46
4.9.8 Activate Auto Scan
In Figure 4-42 , click “Auto Scan” button, the system begins auto scan. Correspondingly, the auto
scan button becomes Stop button. Click stop button to terminate scan operation.
4.11 Flip
In Figure 4-42, click page switch button, you can see an interface is shown as below. See Figure
4-47. Here you can set auxiliary function. The aux value has relation ship with the Aux button of
the decoder.
Click page switch button again, system goes back to Figure 4-38.
