IC Realtime Flex Series: 32-CH High Performance H.264E 2U DVR - Manual (Page 38)

28

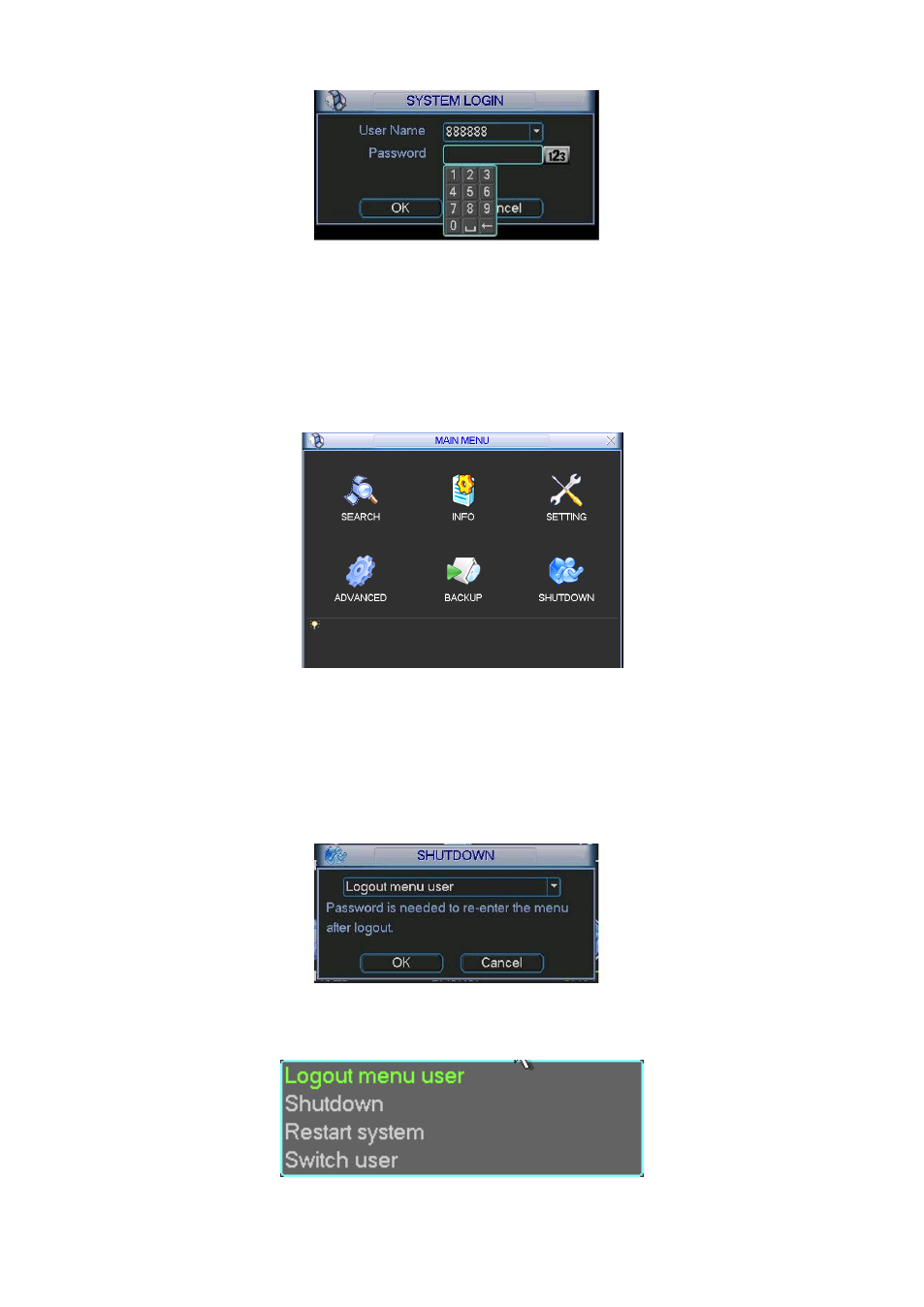

Figure 4-2
4.1.2 Main Menu
After you logged in, the system main menu is shown as below. See Figure 4-3.
There are total six icons: search, infor mation, setting, backup, advanced and shutdown.
You can move the cursor to highlight the icon, and then double click mouse to enter the sub-
menu.
Figure 4-3
4.1.3 Logout
There are two ways for you to log out.
One is from menu option:
In the main menu, click shutdown button, you can see an interface is shown as below. See
Figure 4-4.
Figure 4-4
There are several options for you. See Figure 4-5.
Figure 4-5
