108

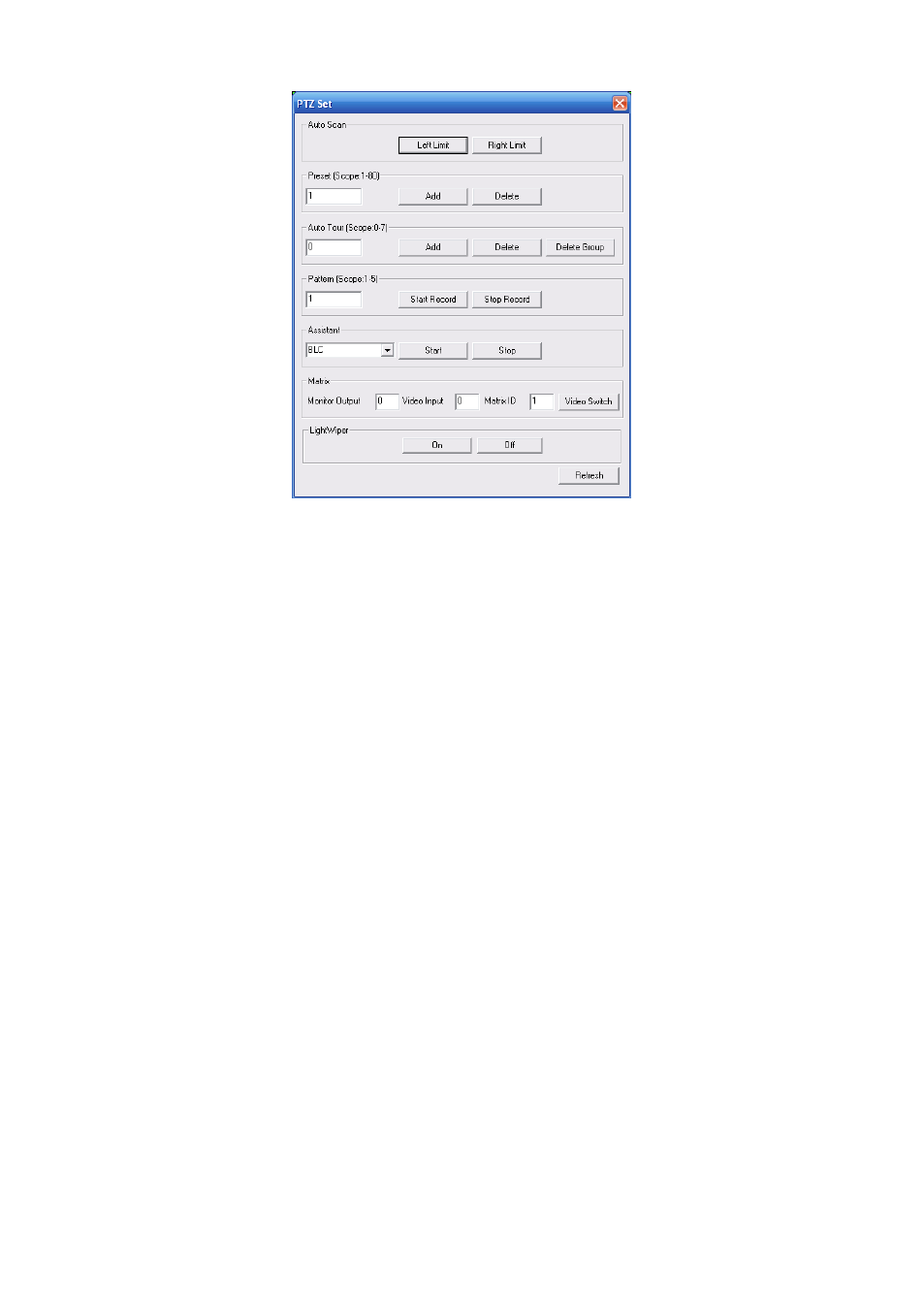

Figure 7-12
7.3.2.4 Auto Scan
In
X439H439 H43 9H
Figure 7-12
X
, move the camera to you desired location and then click left limit button.
Then move the camera again and then click right limit button to set a right limit.
7.3.2.5 Pattern
In
X440H440 H44 0H
Figure 7-12
X
, you can input pattern value and then click start record button to begin PTZ
movement. Please go back to Figure 7-11 to implement camera operation. Then you can click
stop record button. Now you have set one pattern.
7.3.2.6 Preset
In
X441H441 H44 1H
Figure 7-12
X
, move the camera to your desired location and then input preset value. Click add
button, you have set one preset.
7.3.2.7 Auto tour
In
X442H442 H44 2H
Figure 7-12
X
, input auto tour value and preset value. Click add button, you have added one
preset in the tour.
Repeat the above procedures you can add more presets in one tour.
7.3.2.8 Assistant
You can select the assistant item from the dropdown list. See
X4 43H4 43H4 43H
Figure 7-13
X
.
7.3.2.9 Matrix
This series product supports matrix extension function. You can control the video input and
output switch
7.3.2.10 Light and wiper
If your PTZ protocol supports the light and wiper control function. You can enable/disable the
light or the wiper.
