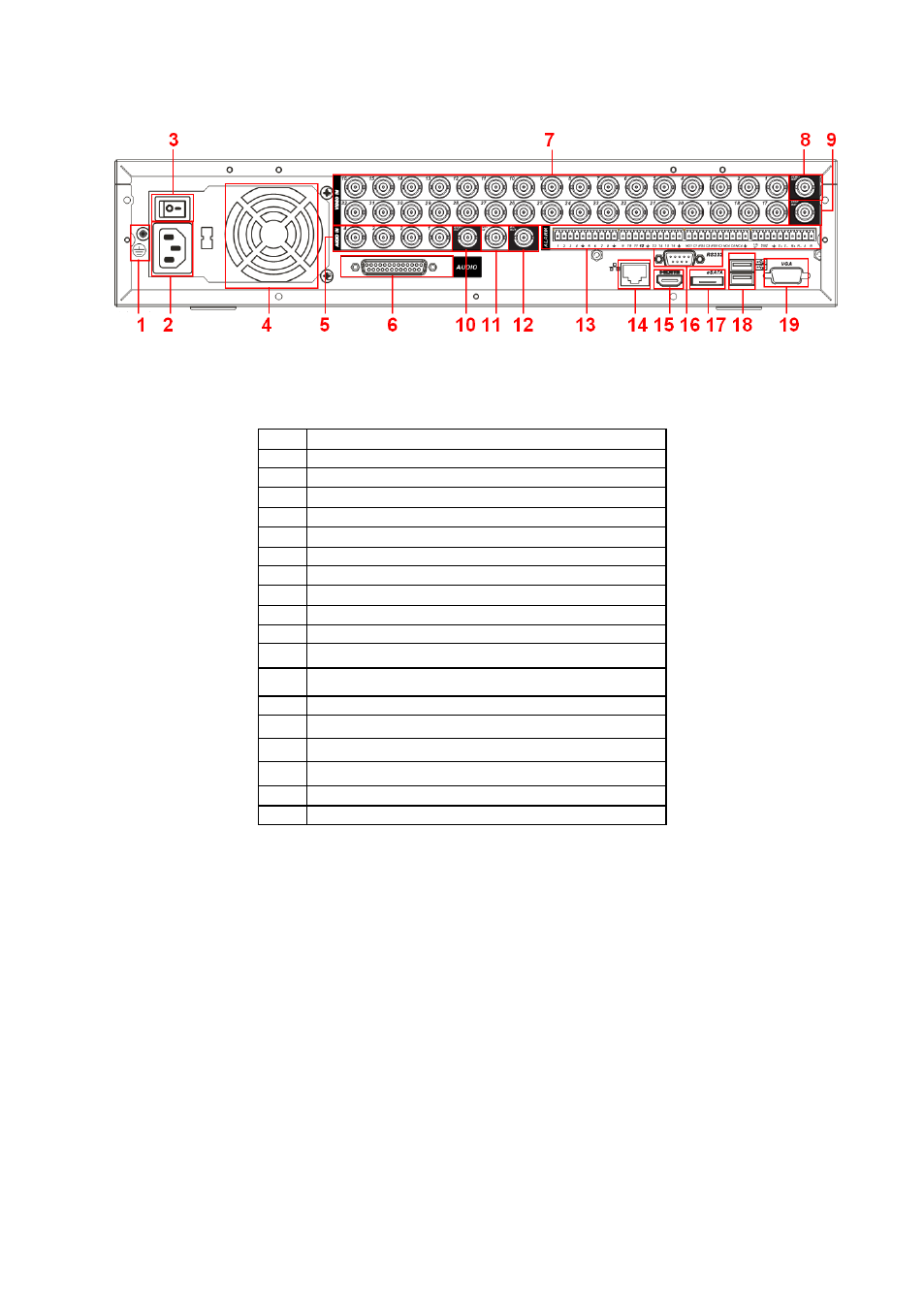

Figure 2-4
Please refer to the following sheet for detailed information.
1 GND port
2 Power input port
3 Power button
4 Fan
5 1
st
to 4
th
-channel audio input
6 DB25 port ( 5
th
to 16
th
-channel audio input port)
7 Video input
8 Video CVBS output
9 Matrix video output
10 Audio output
11 Bidirectional talk input port
12 Bidirectional talk output port
13 Alarm input/Alarm output/RS485 port
14 Network port
15 HDMI port
16 RS232 port
17 eSATA port
18 USB port
19 Video VGA output
When connect the Ethernet port, please use crossover cable to connect the PC and use the
straight cable to connect to the switcher or router.
2.3 Connection Sample
Please refer to Figure 2-5 for connection sample.
Please note the following figure is based on the 32-channel 2U series product.
