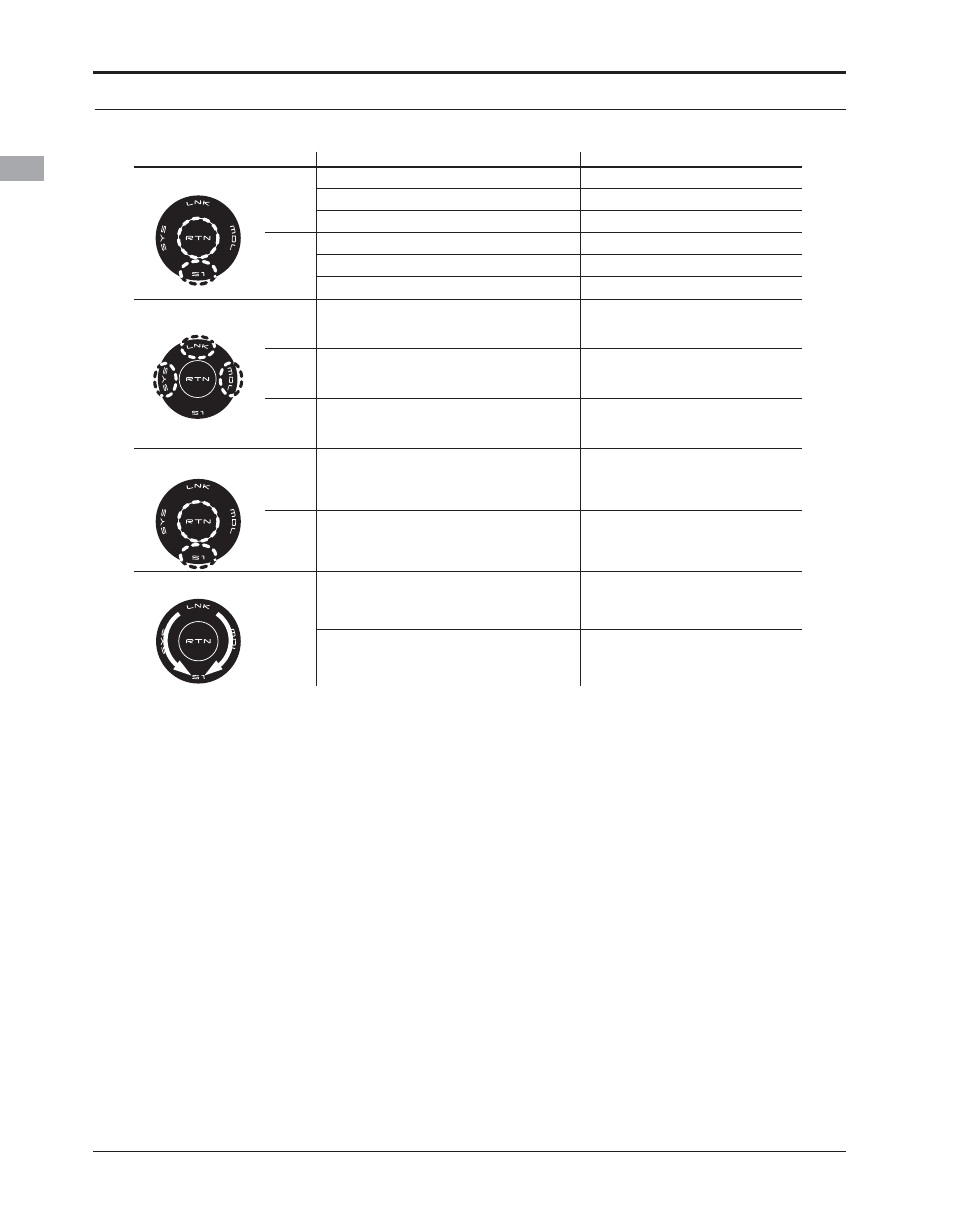

SensorTouch™ operation Condition Working
s
S1
If the screen has more than one page. (Ex. P-MIX screen) The cursor moves to the top of next page.
If the screen have only one (1) page. The cursor moves to the top of page.
If inputting data while the cursor is blinking. The input data is canceled.
RTN
At the moving cursor mode. Change to the input data mode.
While in the data input mode. Changes to the moving cursor mode.
While inputting data while cursor is blinking. The data is entered.
s
SYS At all screens Jump to System Menu screen directly.
LNK At all screens Jump to Linkage Menu screen directly.
MDL At all screens Jump to Model Menu screen directly.
s
S1 At the HOME screen Key lock On or Off
RTN While inputting data with no blinking cursor. Reset to the initialized value.
s
Outline
OF
“RTN”
Lightly circling the outside edge of the RTN button. The cursor moves accordingly.
During the data input mode. Increases or decreases values accordingly.
Touch sensor operation
Data input operation is performed using the touch sensor.
Movement of cursor, value input or mode
selection:
Movement of the cursor on the menu screen
and movement of the cursor among items on a
setup screen can be controlled by scrolling your
¿QJHU WR WKH OHIW DQG ULJKW LQ WKH GLUHFWLRQ RI WKH
DUURZ LQ WKH VFUROOLQJ GLDJUDP DERYH also go to the next page, if there is a next page.
This scrolling technique is also used for data
input, value input, mode selection, and similar
operations. Examples include: Value, ON, OFF,
INH, ACT, etc.
RTN button:
Touch the RTN button when you want to open
a setup screen or to switch between cursor move
mode (reverse display) and data input mode (box
display).
This button can also be used as the enter button
ZKHQ D FRQ¿UPDWLRQ PHVVDJH LV GLVSOD\HG RQ WKH
screen, etc.
S1 button:
When there is a next page on a menu screen or
setup screen, you can go to that page by touching
the S1 button. In this case, the cursor moves to
the screen title item of the page.
Exiting setup screen:
To end the operation on a setup screen and
return to the menu screen, move the cursor to the
screen title item and touch the RTN button.
To return to home screen directly, touch the S1
button for 1 second.
Alternatively, move the cursor to the screen
title item and touch the RTN button to return to
the home screen from a menu screen.
