MODEL MENU (AIRPLANE/GLIDER FUNCTIONS)
The dedicated mixes, etc. that are applicable
when an airplane or glider model type is selected
are displayed in this Model menu functions
section. Prior to adjusting any of these mixes, etc.
use the Model Type function in the Linkage menu
to select the model type, wing type, and tail type
matched to the aircraft. Other settings reset the
data used in mixing function, etc.
For glider, many dedicated mixes can be set
for each flight condition, as required. To switch
the settings for each condition by switch or stick
position, use the Condition Select function to add
flight conditions. (Up to five conditions can be
used)
Note: The T14SG is designed so that the airplane
and glider model types can utilize aircraft of the
same wing type.
The functions common to airplanes and gliders, with
the exception of some dedicated functions, are
written without regard to the model type.
While there may be differences, depending on the
number of servos, etc. the wing type used, etc. the
setup screens in the instruction manual are typical
examples.
Model Menu functions list
PITCH CURVE
Compatible with VPP (Variable Pitch Propeller)
function. [Airplane, general]
THR CURVE
THR curve function adjusts the throttle operation
curve for optimum engine speed to throttle stick
movement. [Airplane/glider, general]
THR DELAY
THR-DELAY function is used to slow the
response of the throttle stick to simulate the slow
response of a turbine engine, etc. [Airplane,
general]
AIL DIFFERENTIAL
The left and right aileron differential can be
adjusted independently. For glider, the differential
UDWH LQ EXWWHUÀ\ PL[LQJ FDQ EH DGMXVWHG
[Airplane/glider, 2 ailerons or more]
FLAP SETTING
7KH XSGRZQ WUDYHO RI HDFK ÀDS FDQ EH DGMXVWHG
independently for each servo according to the wing
W\SH >$LUSODQHJOLGHU ÀDSV RU PRUH@
AIL to CAMB.FLP
7KLV PL[ RSHUDWHV WKH FDPEHU ÀDSV LQ WKH DLOHURQ
mode. It improves the roll axis characteristics.
>$LUSODQHJOLGHU DLOHURQV ÀDSV RU PRUH@
AIL to BRKFLP
7KLV PL[ RSHUDWHV WKH EUDNH ÀDSV LQ WKH DLOHURQ
mode. It improves the roll axis characteristics.
>*OLGHU ÀDSV@
*The Model menu screen depends on
the model type.

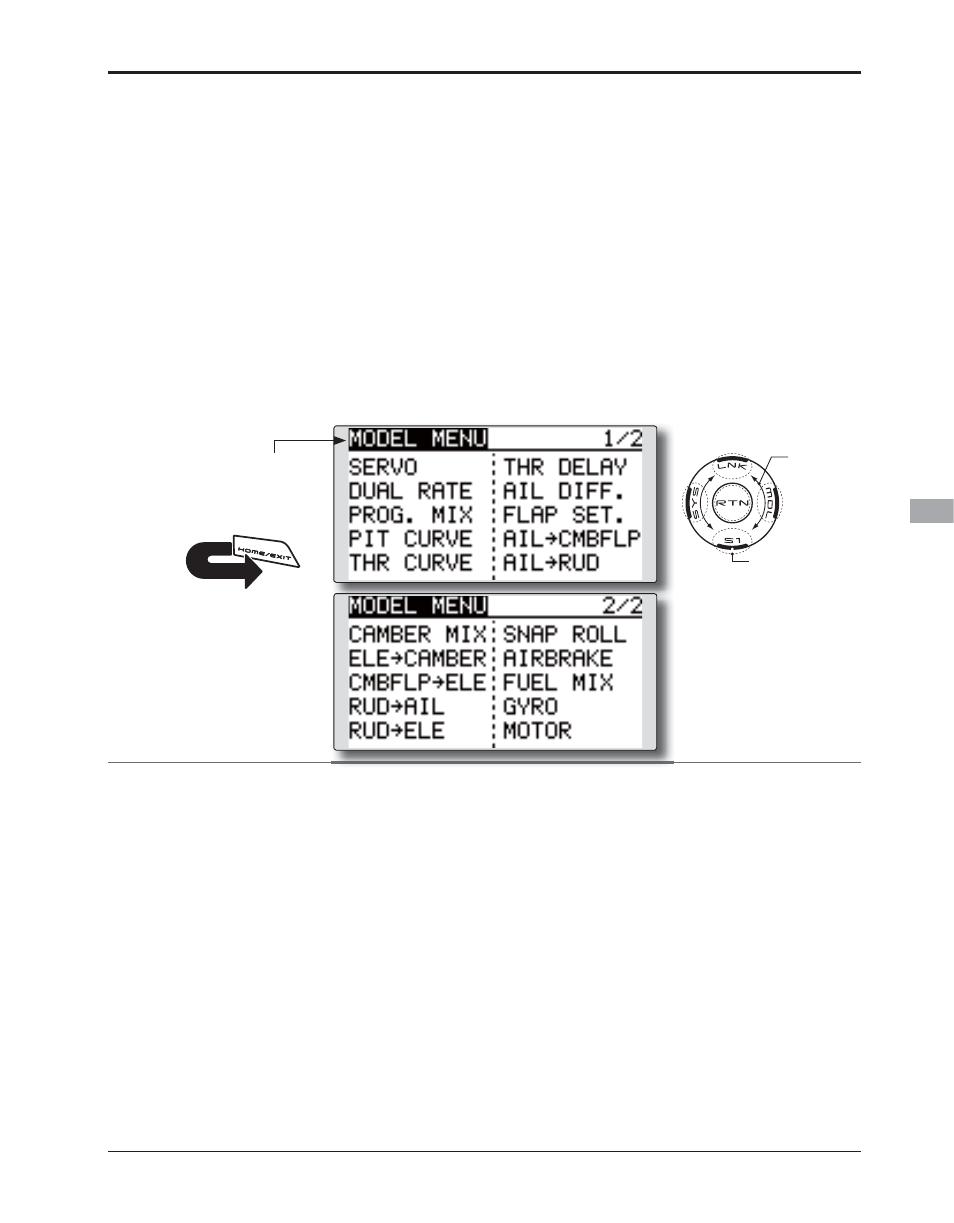

ŏ $FFHVV WKH PRGHO PHQX VKRZQ EHORZ E\
touching the MDL button twice at the home
screen, etc.
ŏ 6HOHFW WKH IXQFWLRQ QDPH
and return to the Model
menu by touching the
RTN button.
Or a HOME/
EXIT button is pushed.
ŏ 6HOHFW WKH IXQFWLRQ
you want to set and
a c c e s s t h e s e t u p
screen by touching
the RTN button.
Scrolling
ŏ 0RYLQJ
cursor
ŏ 7R QH[W SDJH
