Every level password can be modified from the same level or higher levels. For instance any password can be modified
from the manufacturer level.
The range of values accepted for the passwords is: -999 / 9999.
If no action is taken on a menu after 4 minutes the password inserted expires and it must be entered again.
4.2.3 User Menu
The User menu is on level 1, that is the level 1 (or higher) password must be taped in for entering the menu and
display/modify the parameters present in this branch.

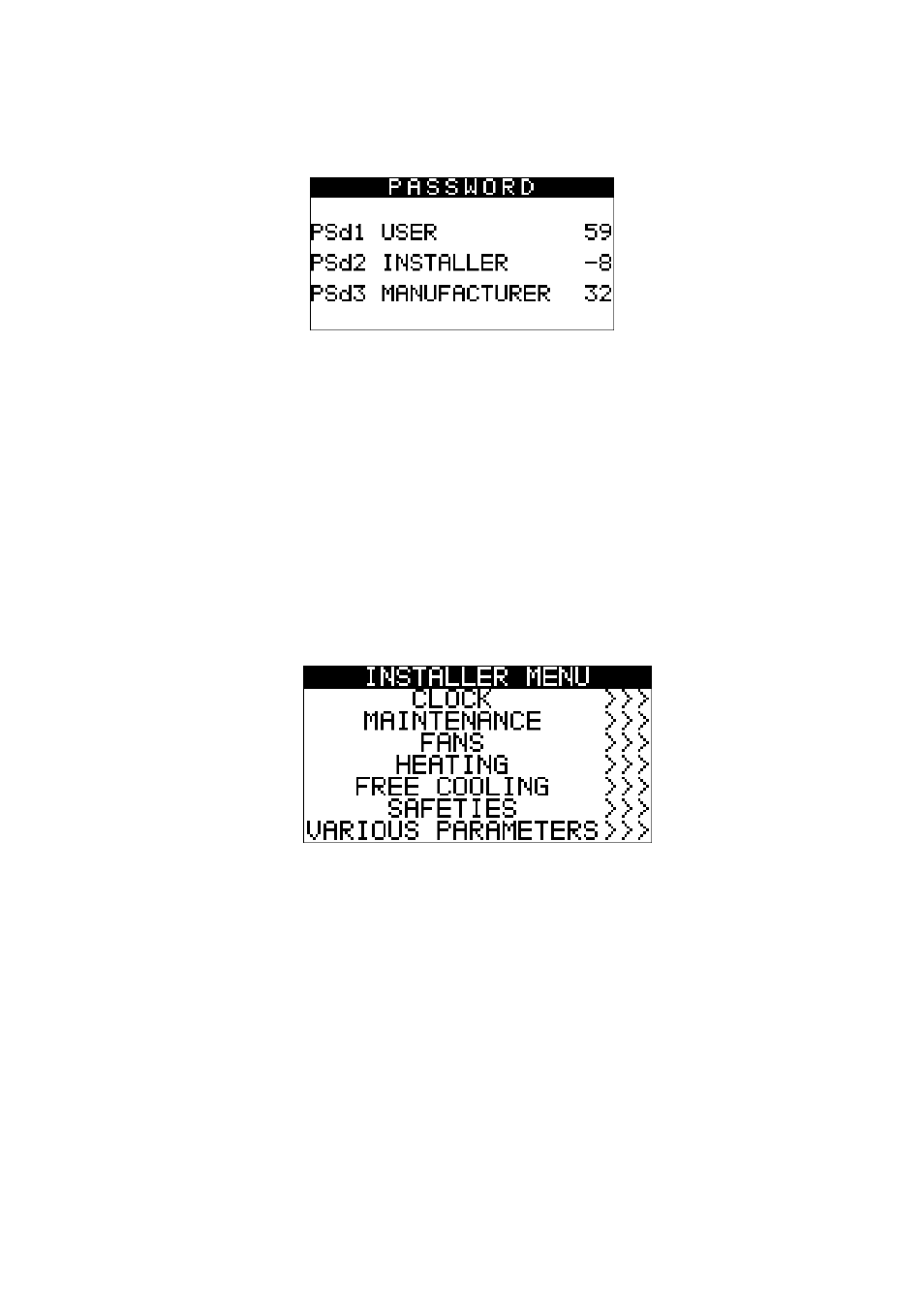

By pushing the RIGHT key from this mask it is possible to access the page used for changing the password (PSd1).
4.2.4 Installer Menu
The Installer menu is on level 2, that is the level 2 (or higher) password must be taped in for entering the menu and
display/modify the parameters present in this branch.
The installer menu contains all parameters relevant for the configuration of all functionalities (alarms, regulation, logic,
features...) of the unit. Pushing the RIGHT or LEFT keys it is possible to access the mask for setting the password
(PSd2).
In the MAINTENANCE menu it is possible to view/enable the features relevant for the working condition of the devices
controlled (i.e. the running hours and the maximum threshold of hours acceptable). In this menu it is possible to see
the states of the physical inputs and outputs of the board and also to set the offset to be added to the analogue inputs
measure in order to compensate the readout error due to wiring, positioning of the probes.
In the FANS, HEATING and FREE COOLING menus it is possible to set the parameters for management of the related
devices
In the SAFETIES menu stand all parameters concerning the alarms and the management of the safety conditions for
the controlled devices
