PortVision DX User Guide
Software Settings Tab
Use the following procedure to create a configuration file from the Software Settings tab on the
DeviceMaster, DeviceMaster UP, and IO-Link Master.
1. If you have not done so, access the Properties screen for the DeviceMaster,
DeviceMaster UP, and IO-Link Master for which you want to save the configuration.
2. Click the Software Settings tab.
3. Click the Save Settings to a File, browse to the location you want to save the file, enter
a file name, and click Save.

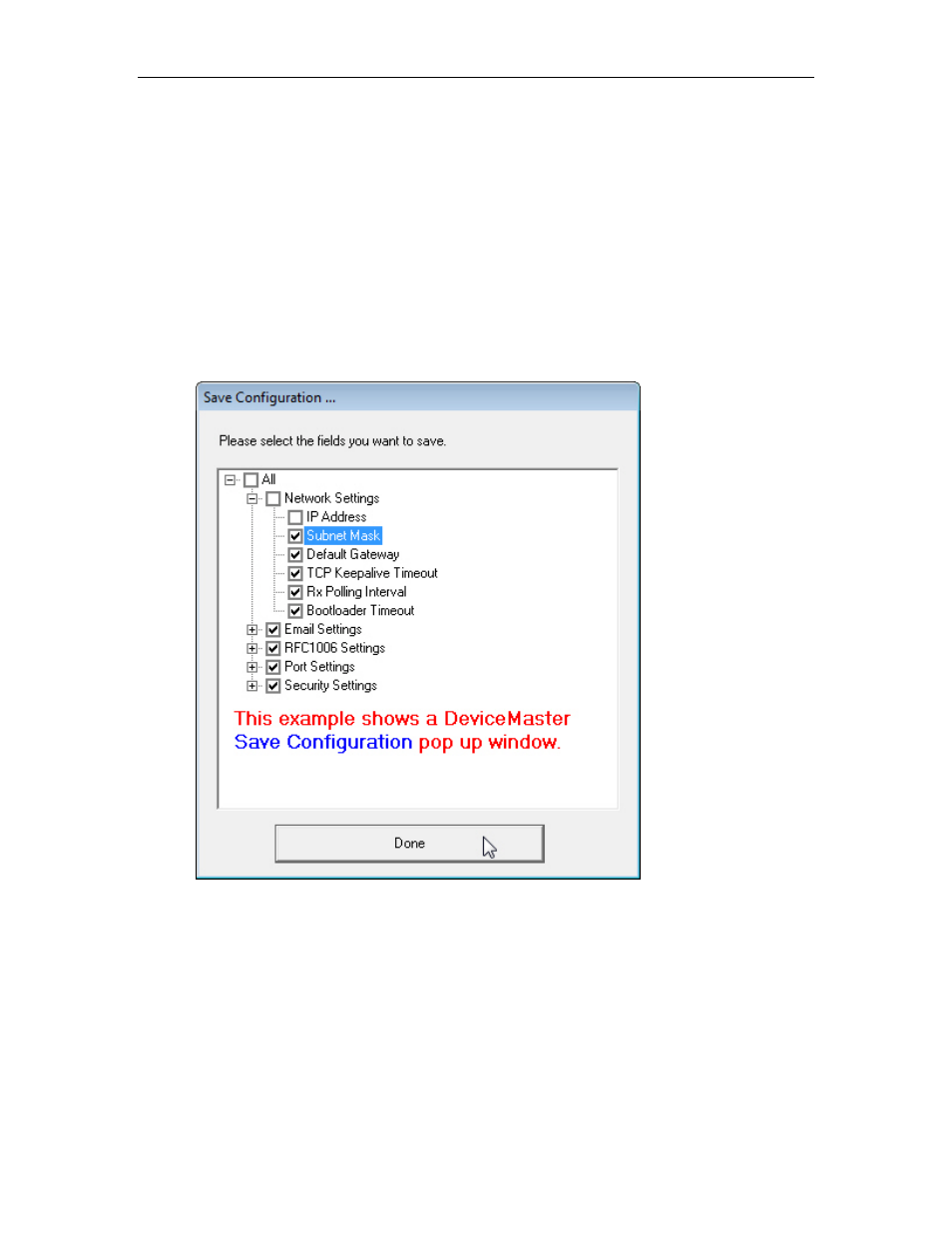

4. Click the All checkbox or click only the properties that you want saved for each property
category in the configuration file.
5. Click Done.
6. Click Ok to close the Save Configuration Completed message.
136
Configuration Files - DeviceMaster
