Configuring Multiple DeviceMaster LTs Network Addresses
Configuring Multiple DeviceMaster LTs Network Addresses
You can configure the network addresses for multiple DeviceMaster LTs using the
Assign IP to Multiple Devices option.
In addition, you can also configure common settings for the DeviceMaster LT
SocketServer or NS-Link web page and save the settings to a configuration file
that you can load to all or selected DeviceMaster LTs. See
on Page 77 for more information.
The DeviceMaster LTs must be on the same network segment for this procedure to
work. Use the following steps to configure multiple DeviceMaster LTs.
1.
If you have not done so, install PortVision DX (
Page 15) and Scan the network.
2.
Shift-click the DeviceMaster
LTs for which you want to
program network information,
right-click, and click Advanced
> Assign IP to Multiple Devices.
3.
Enter the starting IP address,
subnet mask, IP Gateway and
click Proceed.

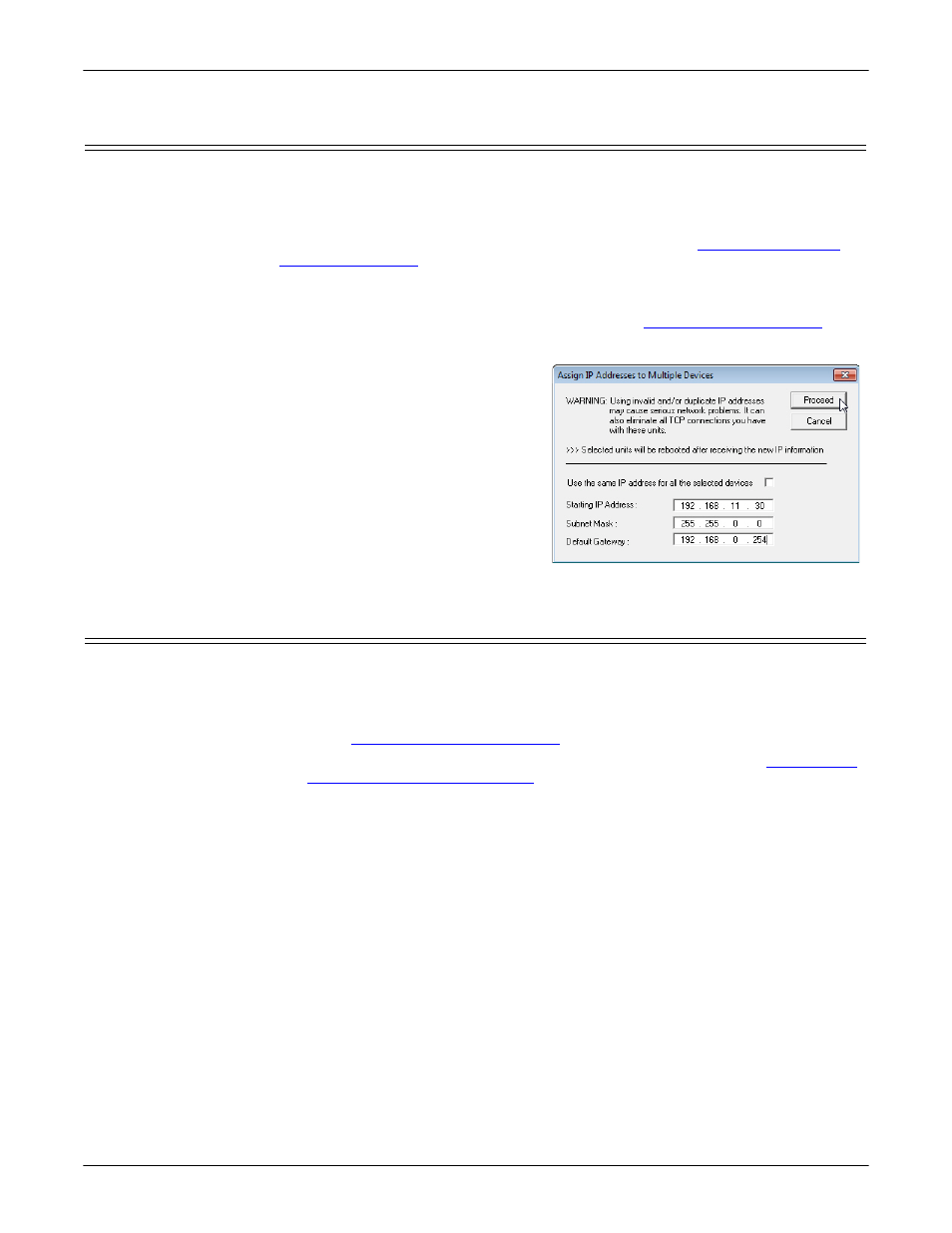

PortVision DX displays the
programmed IP addresses in
the Device List pane after the
next refresh cycle.
Adding a New Device in PortVision DX
You can add a new DeviceMaster LT manually, if you do not want to scan the
network to locate and add new DeviceMaster LTs, but there may be cases where
you want to use the Add New Device window to:
•
Configure DeviceMaster LT units that are not on the local network (remote)
using
•
Pre-configure a DeviceMaster LT in PortVision DX (local) using
Remote Using the IP
Address
Use the following procedure to add a remote DeviceMaster LT to PortVision DX.
1.
Access the New Device window using one of these methods:
•
Click Add New > Device in the Manage menu.
•
Right-click a folder or a RocketLinx switch in the Device Tree pane
(anywhere in the pane, as long as a DeviceMaster LT is not highlighted and
you are in a valid folder) and click Add New > Device.
2.
Select the appropriate DeviceMaster LT in the Device Type drop list.
3.
Select the appropriate model in the Device Model drop list.
4.
Enter a friendly device name in the Device Name list box.
5.
Select REMOTE for the Detection Type.
6.
Optionally, enter the serial number in the Serial Number list box.
