Attaching the Temperature Module
Should you need to attach or remove the temperature module; the following instructions give an overview
of its attachment to the BP module. The temperature module attaches to the top of the BP module. It is
made up of the following two pieces:
• Part A with the display.
• Part B, the probe holder, which holds the temperature
probe and probe cover box.
1.
Using the power button on the right side of the BP module, ensure that the ADview is off.
2.
Remove the cover plate from the top of the BP module.
3.

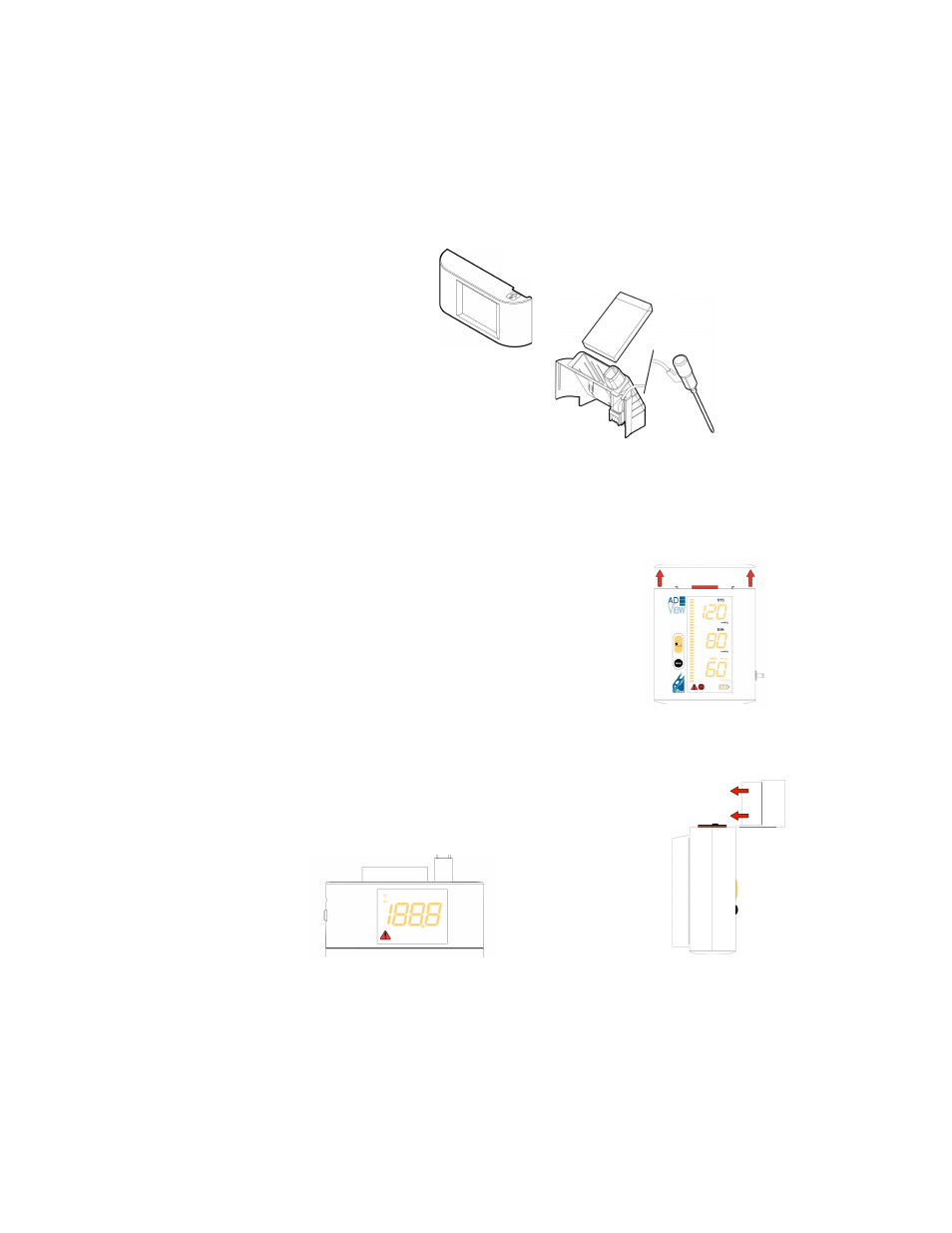

Slide part A of the temperature module along the guides on the top of the
BP module from front to back until it snaps into place. All the segments
of the temperature module display will light when the modules have
been connected correctly.
