American Diagnostic Corporation (ADC) ADview Modular Diagnostic Station - Manual (Page 22)

12
ICON/DISPLAY INDICATES…
Temperature value flashes in a downward direction Final measurement is less than 86 °F /30.0°C.
Temperature value is steady (no flashing) This is the final temperature value.

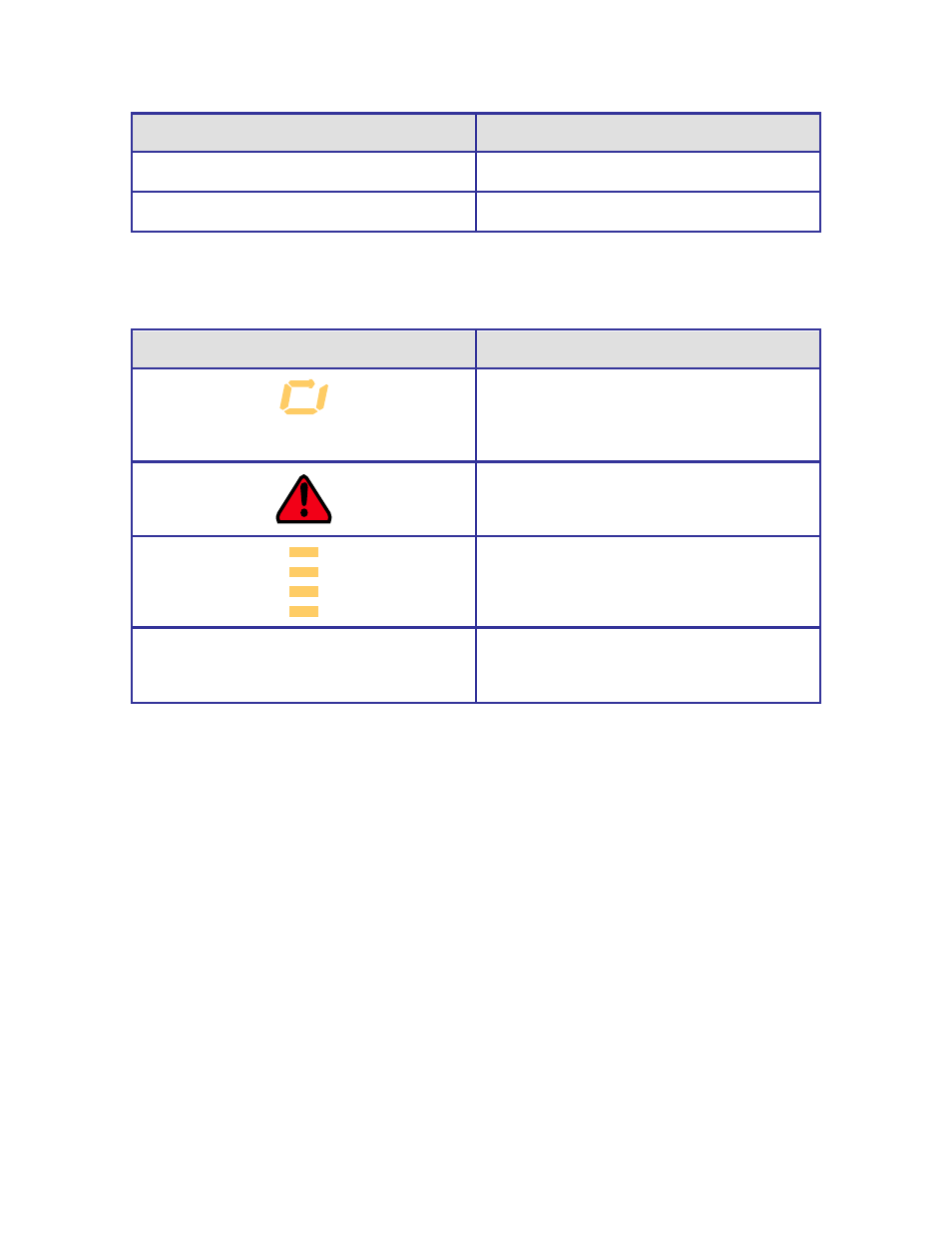

Visual Cues - Pulse Oximetry Module
ICON/DISPLAY INDICATES…
“Traveling dash” in SpO
2
display
The unit is taking a measurement.
Warning! Indicates an error in the optional pulse
oximetry module. Please refer to the
troubleshooting section on page 40.
Indicates signal strength and quality from the pulse
oximeter sensor. If there is no measurement and the
signal quality is low, try a different site or sensor.
SpO
2
value
Indicates the functional oxygen saturation. This area
also displays the status code when the warning
symbol is lit.
