6
Buttons on the optional temperature module
• Temperature units select: Recessed momentary switch that toggles the display between °F and
°C.
• Temperature mode select (symbol on button: ): Momentary switch that selects oral vs. axillary
measurements for the oral temperature probe, and selects predictive vs. direct measurement
methods for all probes.
Connectors on the optional temperature module
• Temperature unit connector: Located on the temperature
module, connects to the temperature probe housed in the
temperature probe well.
Temperature units

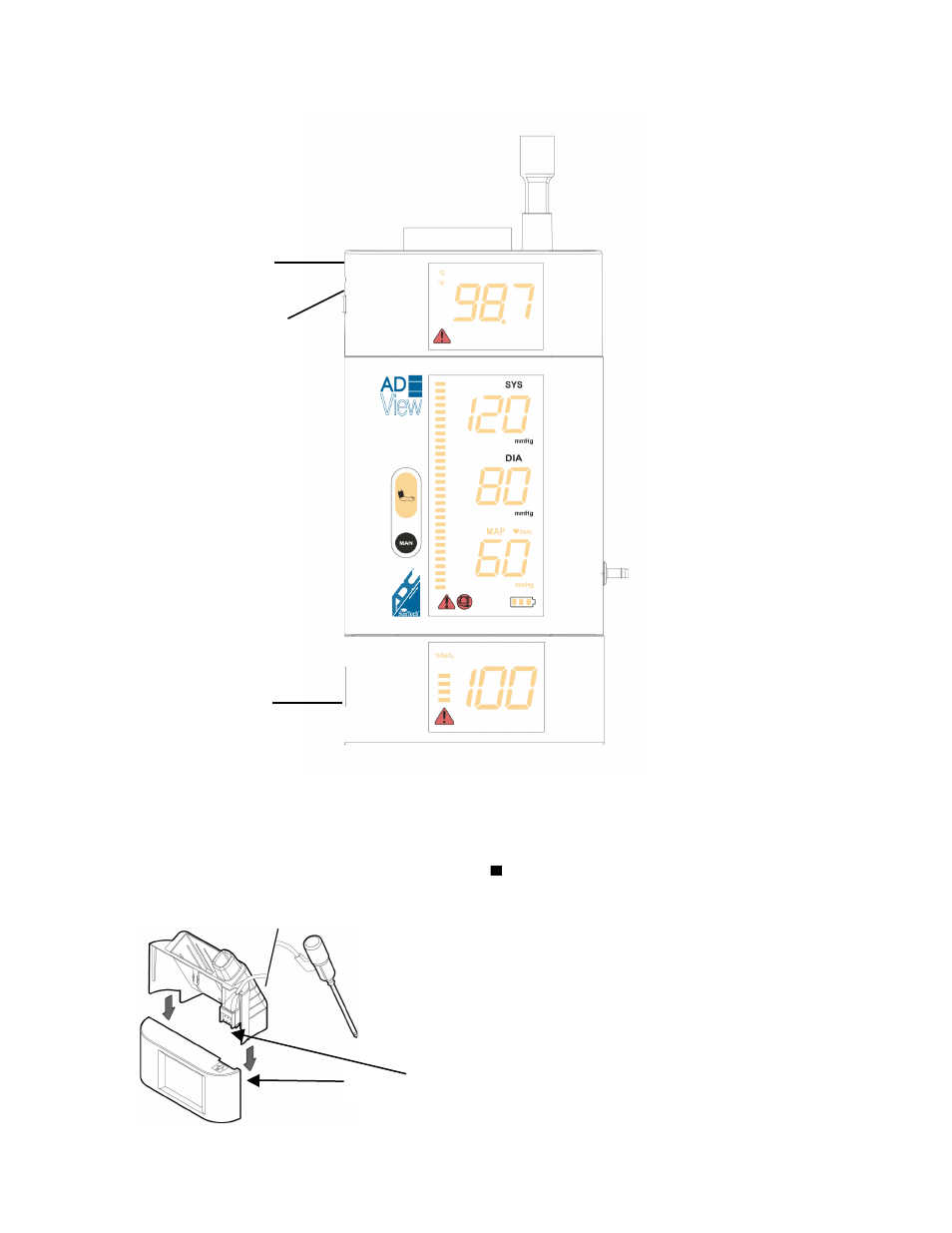

select (recessed)
Temperature mode
select
SpO2 sensor
connector
Temperature unit connector (not shown)
Temperature probe connector
