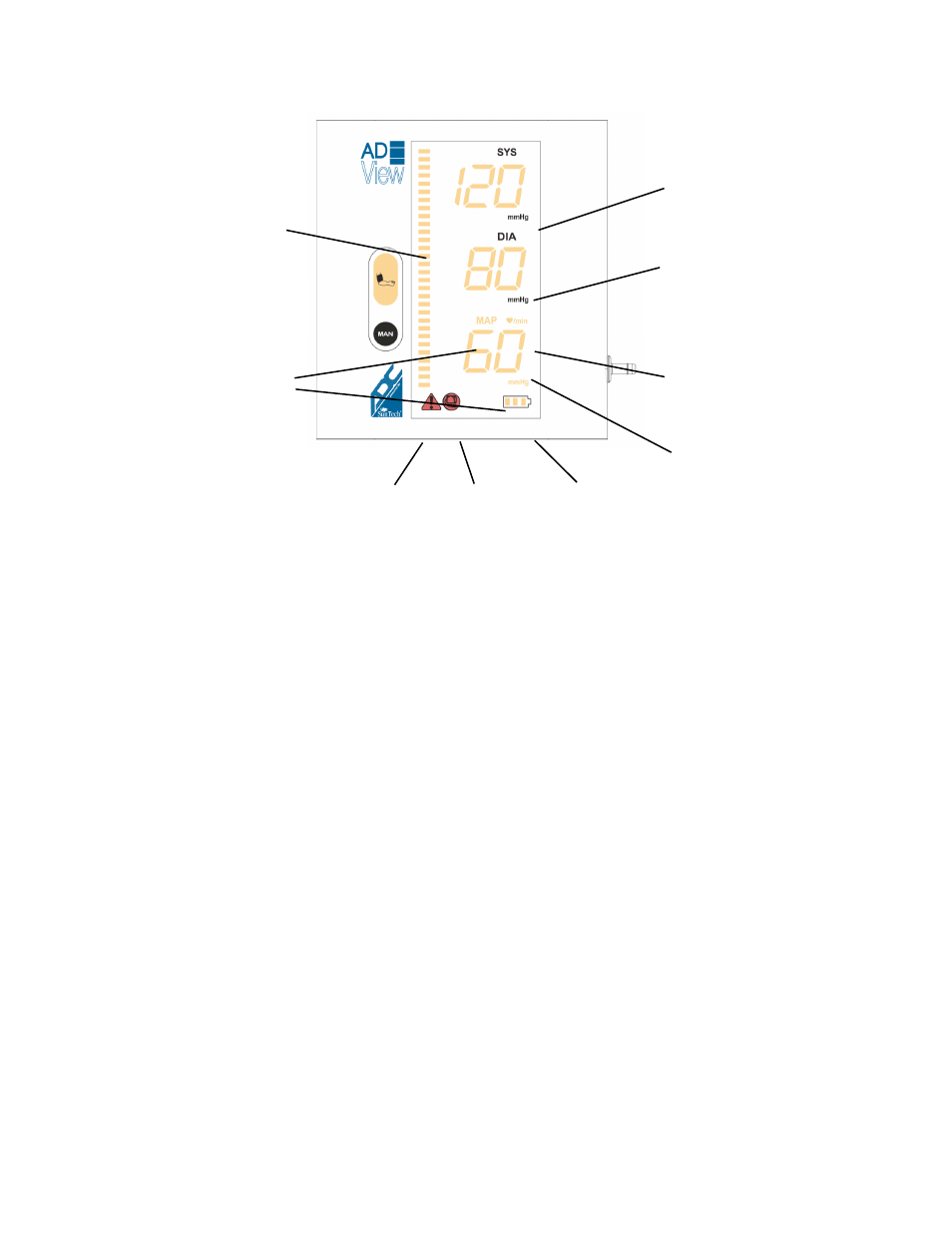

Information on the BP module display
• Systolic blood pressure: At the end of a measurement or when the last measurement is recalled,
the patient’s systolic BP is displayed. During a measurement, the cuff pressure is displayed.
• Diastolic blood pressure: At the end of a measurement or when the last measurement is recalled,
the patient’s diastolic BP is displayed.
• Pulse rate/Mean arterial pressure (MAP): At the end of a measurement or when the last
measurement is recalled, the patient’s pulse rate is displayed. When the MAP feature is enabled,
MAP toggles with pulse rate. If the cuff/hose error and warning icons are lit, a status code may
appear in this space. See page 39 for details.
• Pulse rate icon: When displayed, the value below is the patient’s pulse rate.
• Mean arterial pressure icon: When displayed, the value below is the patient’s MAP.
• Power level indicator: Displays connection to AC power or the charge level of the battery.
• Cuff/hose icon: When displayed, indicates that the cuff and/or pneumatic hose need to be checked
and adjusted in order to take a measurement. See page 38 for details.
• Warning icon: When displayed, indicates that the system needs to be checked. See page 38 for
details.
• Pressure column: Displays the pressure in the cuff. Each segment represents approximately
10mmHg.
Optional temperature and pulse oximetry modules
Pressure
column
Systolic blood
pressure
Diastolic blood
pressure
Pulse rate/ Mean
arterial
pressure/Status
code
Power level
indicator
Cuff/hose
error icon Warning icon
Pulse rate icon
Mean arterial
pressure icons
