4-3
- DeviceNet Compatible Network Unit DL-DN1 User's Manual -
4
Spec
if
ica
ti
ons
4-2
Data Processing Times

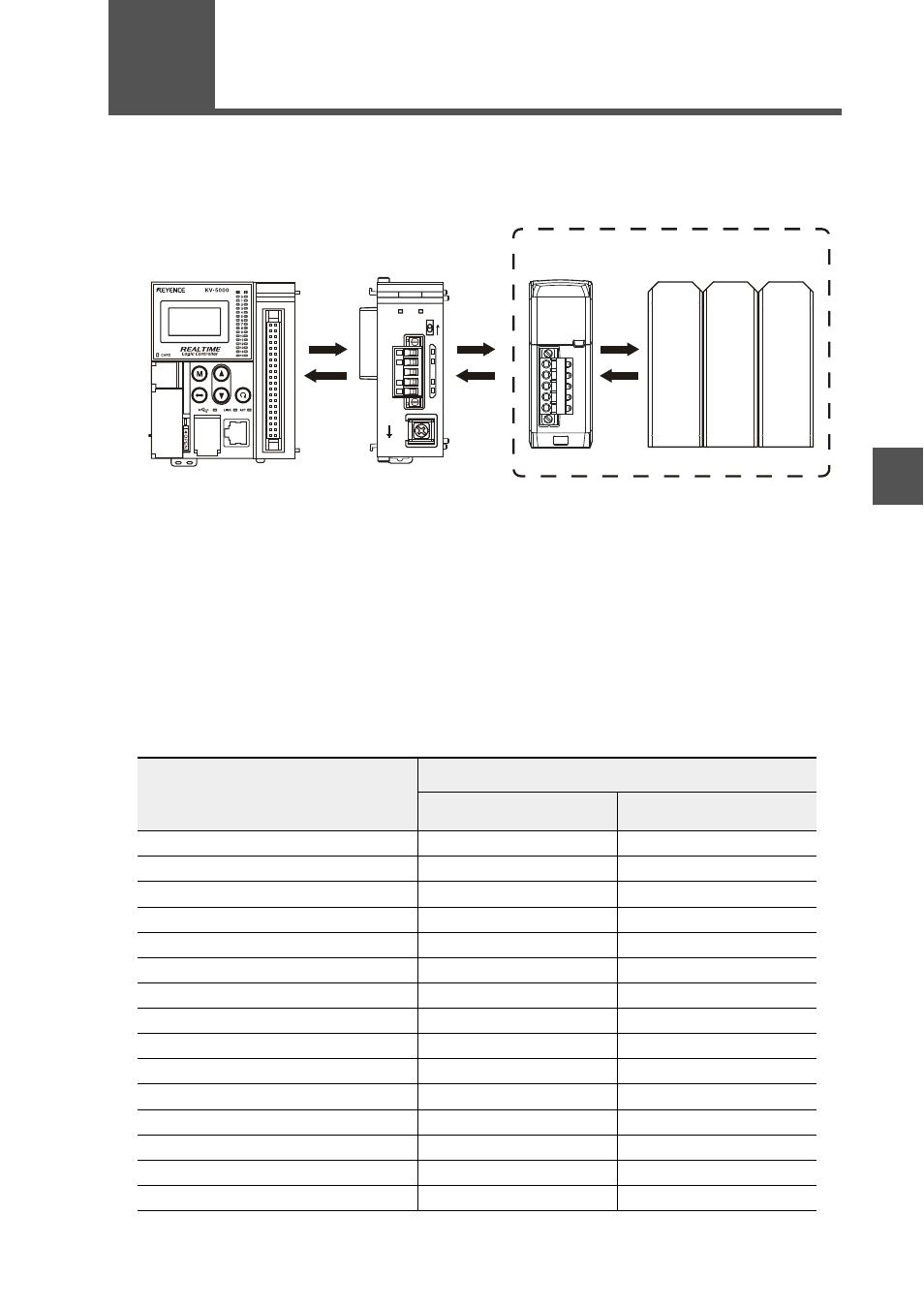

This section describes the length of time taken from detection by a sensor(s) to data
processing by PLC.
Maximum data processing time = (1) + (2) + (3) + (4)
(1) PLC scan time
(2) Network scan time
(3) Data communication time of DL-DN1
(4) Response time of sensor amplifier
(3) Data communication time of DL-DN1
The length of time for the data output or current value to be sent from a sensor
amplifier to the DL-DN1 are summarized below.
Sensor amplifier with calculation function OFF, or sensor amplifier with no calcula-
tion function
Number of sensor amplifier units
connected
Output, comparator value, or current value
Other than IG series
*
IG series
1
10.2 ms
8.2 ms
2
12.2 ms
13.2 ms
3
16.2 ms
15.2 ms
4
18.2 ms
19.2 ms
5
22.2 ms
-
6
24.2 ms
-
7
28.2 ms
-
8
30.2 ms
-
9
34.2 ms
-
10
36.2 ms
-
11
40.2 ms
-
12
42.2 ms
-
13
46.2 ms
-
14
48.2 ms
-
15
52.2 ms
-
CPU unit
DeviceNet
master unit
DL-DN1 Sensor
amplifier
KV-DN20
MS
NS
ON
TERM.
(1)
(2)
(3)
(4)
