Rudder to Elevator and Aileron Mixes
Quique Somenzini has designed the Beast to have minimum roll and pitch coupling, but at the
same time pitch and roll coupling of any plane is extremely dependent on its CG. Quique uses
multi-point (curve) mixes for Rudder to Elevator and Rudder to Aileron. The numbers below are
from his own transmitter. This should provide modelers a good reference point.
Rudder to Elevator Curve Mix
Point 2 1 L 3 4 5 H
R.Rudd 0 -2 -5
L.Rudd 0 -2 -4 -5
(-) means up elevator. Each point represents 1/3 of full deflection i.e., point 2 is first 1/3 of stick
deflection and L is full right rudder. Point 3 is stick at center.

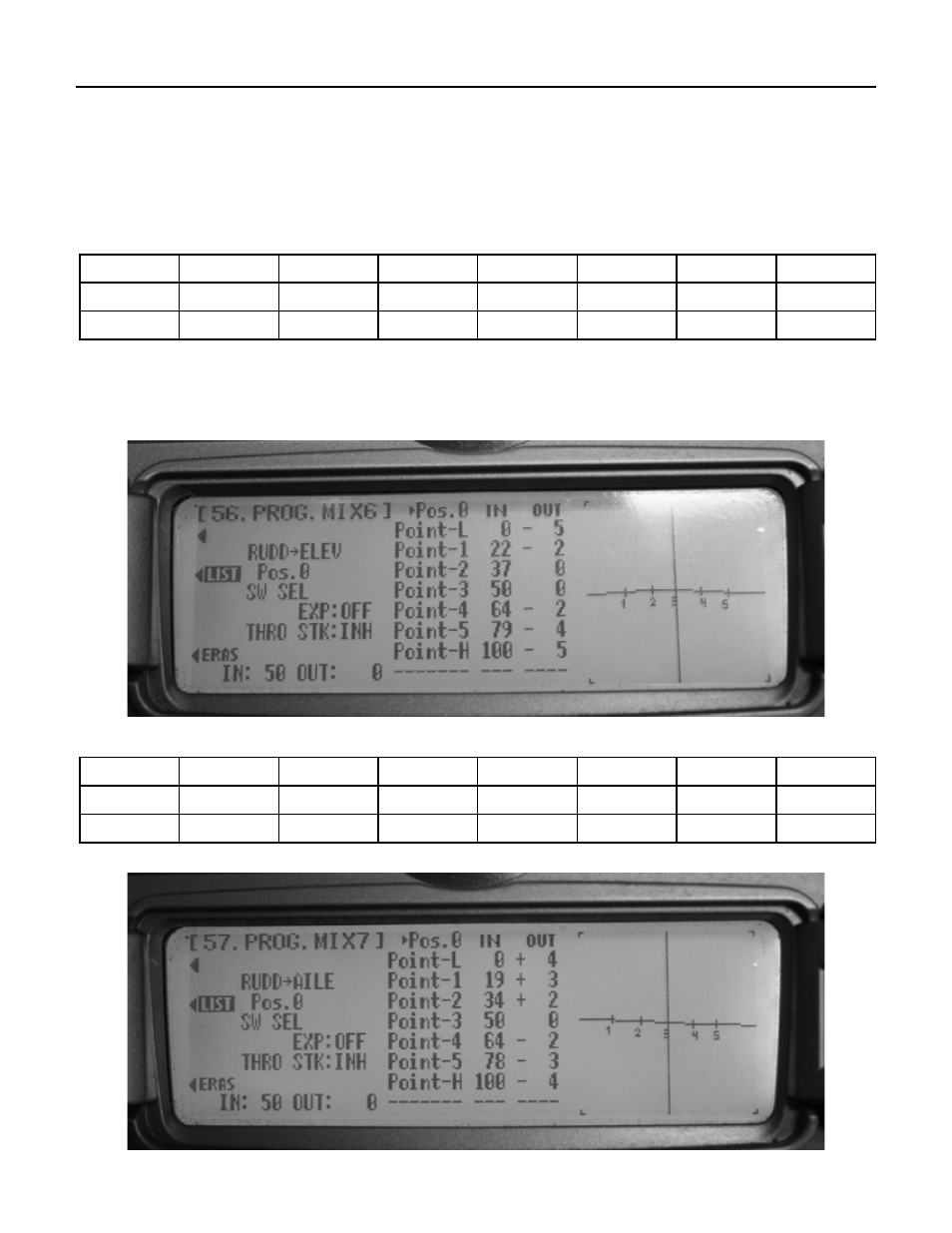

The photograph below is a screenshot of the 12X radio programmed with the information from
the table above.
Rudder to Aileron Curve Mix
Point 2 1 L 3 4 5 H
R.Rudd +2 +3 +4
L.Rudd 0 -2 -3 -4
(+) means left aileron and (-) right aileron.
