Hangar 9 Beast 100cc ARF User Manual
Page 46
46

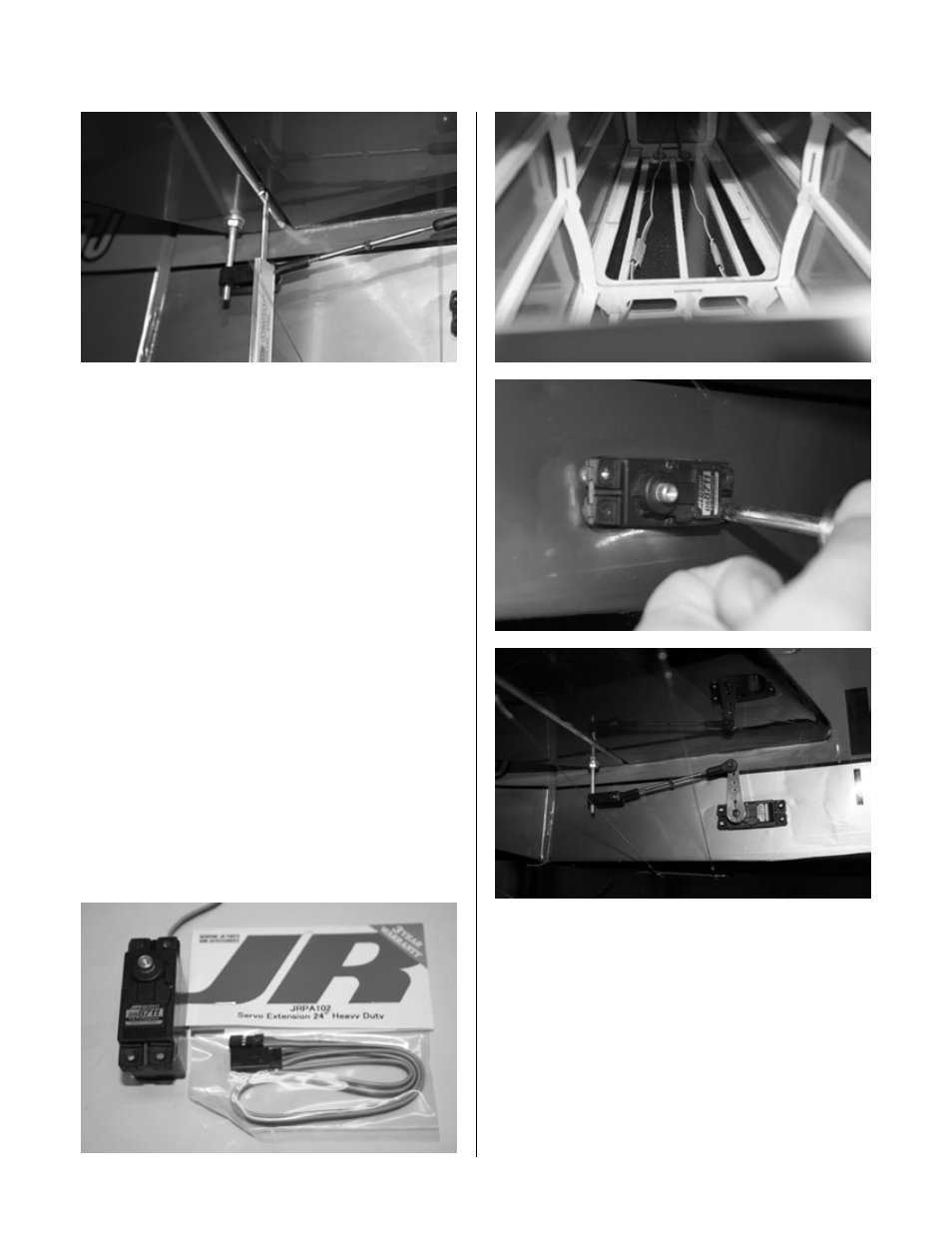

The picture above is how
you need to measure 1.5-
inch from the hinge line.
Step 3
Install the servo so the output shaft is toward
the tail of the aircraft. Pass the extensions
through the bottom former's lightening holes,
secure the connector using dental floss and
the masking method described in the wing
section. Turn on power to the servo with the
sub-trim at 0. Try to put the arm on the output
shaft so the servo arm is directed slightly to
the front of the plane or at 90 degrees. With
this method, max up/down deflection should
be 43-45 degrees equally.
Note: Do not lengthen the linkage
any longer than 60mm as it may
not be safe. It is OK to carry
some sub-trim if the servo arm
doesn't fit in the above positions.
