Hangar 9 Beast 100cc ARF User Manual
Page 41
41

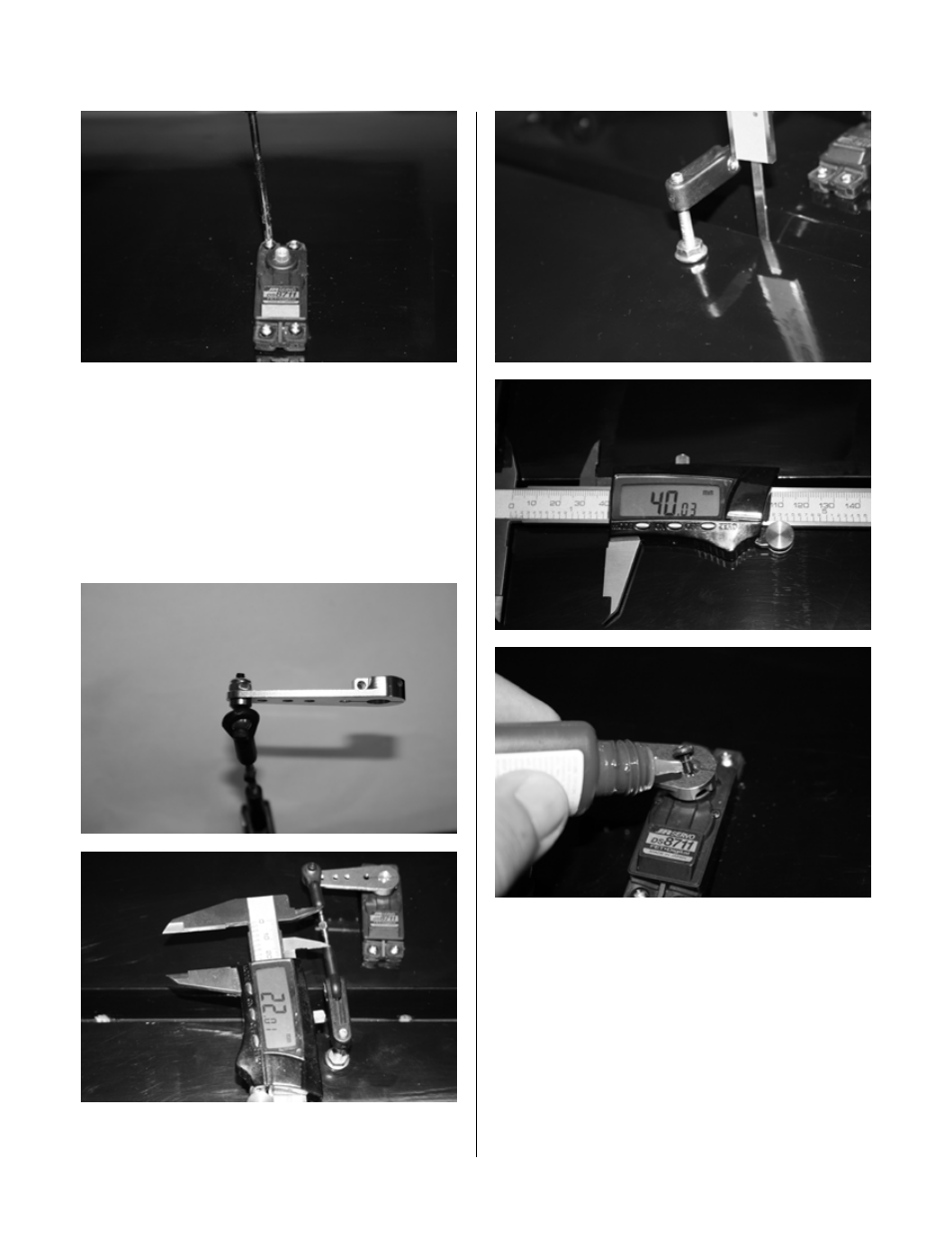

Step 4
The distance from the hinge line to the top
of the bolt at the pivot point should measure
40mm. The length of titanium rod exposed
should measure 22mm. These measurements
should be the same for all 4 wings.
Attach the 1.5-inch arm to the ball link and
complete the assembly.
Step 5
Make 3 more identical length control horn/ball
link setups and complete the other 3 wings in
the same exact way. Remember, top wings
use 6-inch extensions where bottom wings
use 12-inch extensions.
