Hangar 9 Beast 100cc ARF - Manual (Page 17)

17

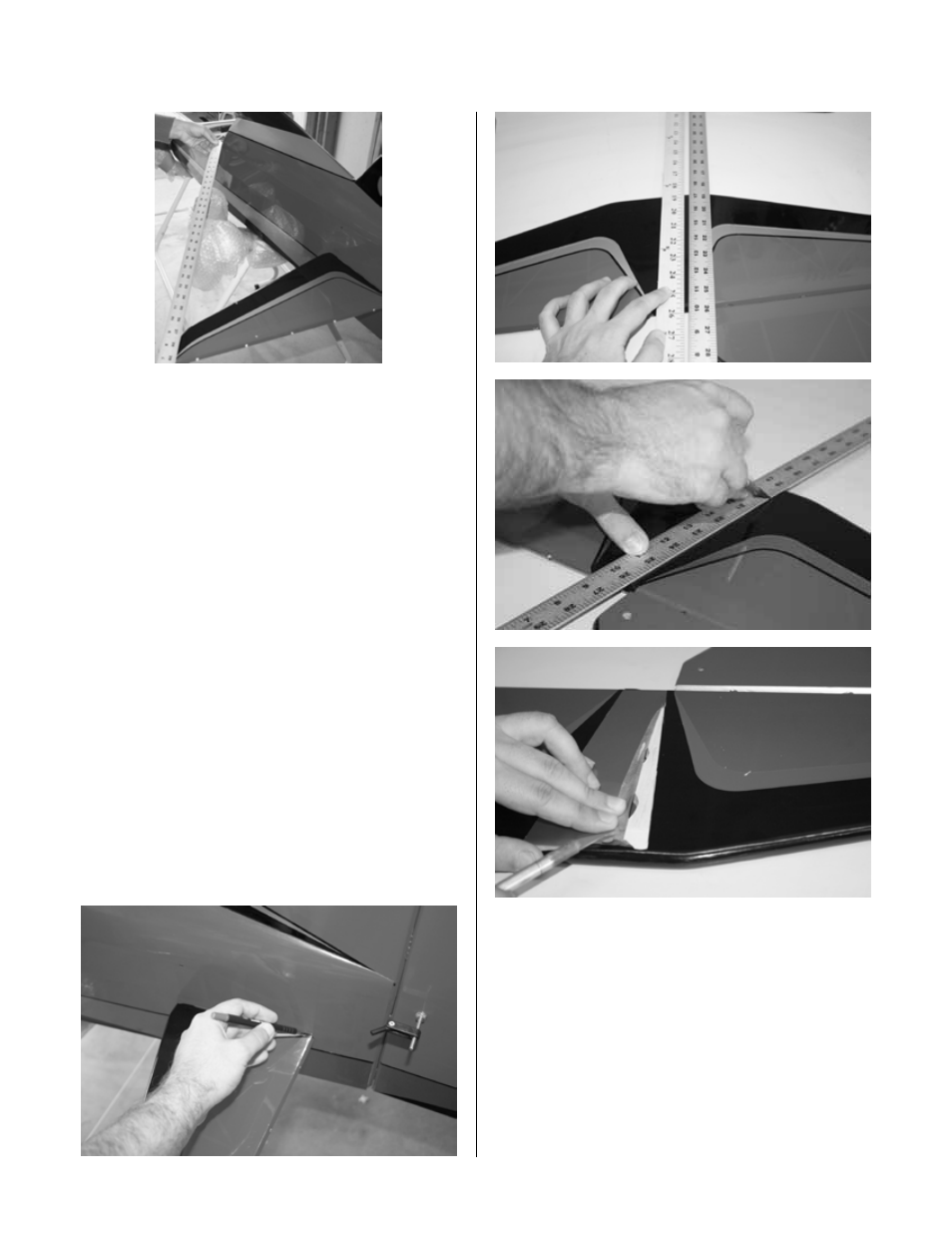

The measurement should read approximately
16 13/16 inch from the fuselage to the tip of
the stab as shown in the first picture of Step
1 and 29 1/2 inch from the turtle deck to the
tip of the trailing edge of the stab as shown
above. Please note that it is the builders
responsibility to ensure correct measurements
of the plane. The above numbers are given
as an estimate.
 Step 2
Once measurements are taken and you feel
comfortable with them, mark the stab with
a marker or pen. Remove the stabs and
remove the covering 1/8 inch inside your
markings. Go over the covering and edges
using a heating iron.
It is very important you do not scar the stab
while removing the covering. Make sure to
use new blades and change as needed. If
you scar the stab, apply thin CA over that
area.
